Automatic 96V 2A Lead Acid Battery Charger with Factory Price

Name: Automatic 96V 2A Lead Acid Battery Charger with Factory Price
Brand: all-electronics-online.com
SKU: 810316495
Availability: InStock
Rating: 4.6 (85 reviews)

Price:	US $ 34.50/Piece
Min Order:	200/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Quawin 96V 2A Auto Battery Charger

Voltage	96v
Current	2a
Connector	as your request

INPUT
01 Rating Input Voltage: 110-240Vac 50-60Hz
02 Input voltage range: 100-264Vac

OUTPUT
05 Rating output voltage: 110.4V
06 Output voltage range: 80VDC~120VDC
07 Suit with Battery type: 96V 12Ah to 20Ah VRLA
08 Charging current(stage1): 2± 0.2@96V
09 Charging voltage(stage2): 114.8V+-0.4V

Floating voltage(stage3): 109.2V+-0.4V
10 Cut-off current(stage2 to 3): <0.4+-0.1A
11 Typical charging time: 8hour
12 Max. Output power: 240W

PROTECTION
13. Over Current Protection
14. Over Voltage Protection
15. Short circuit protection
15. Reverse input protection

LED
Red for charging, Green for charging finished

Universal Smart Charger for 96V
Lead-Acid battery pack
.It is universal smart charger for 96V
Lead-Acid battery
.3-stages charging mode
1.Constant current 2A;
2.Constant voltage 109.6-110.4Vdc;
3.Floating voltage 114.4-115.2Vdc;
.Led indicate charging status:
Red---in charging; Green---fully charged
.Safety protection
Short circuit protection
Battery reverse connection protection
Over voltage protection
.Input:100-240Vac
.Output:96Vdc charging current:2A

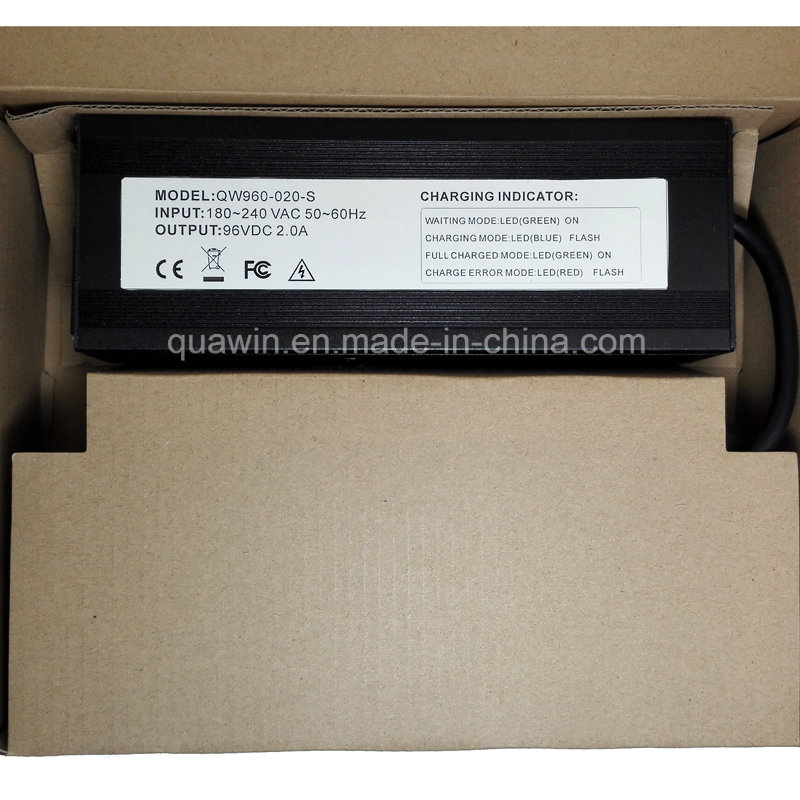

Prod Model:	QW960-020-S
Input Voltage:	AC100-240V 50/60Hz
Weight:	900g
Delivery Date:	About 15 Working Days
Warranty:	12 Months
Charger Type:	Electric Charger
Type:	Lead Acid Battery
Nominal Voltage:	96V
Size:	163X103X65mm
