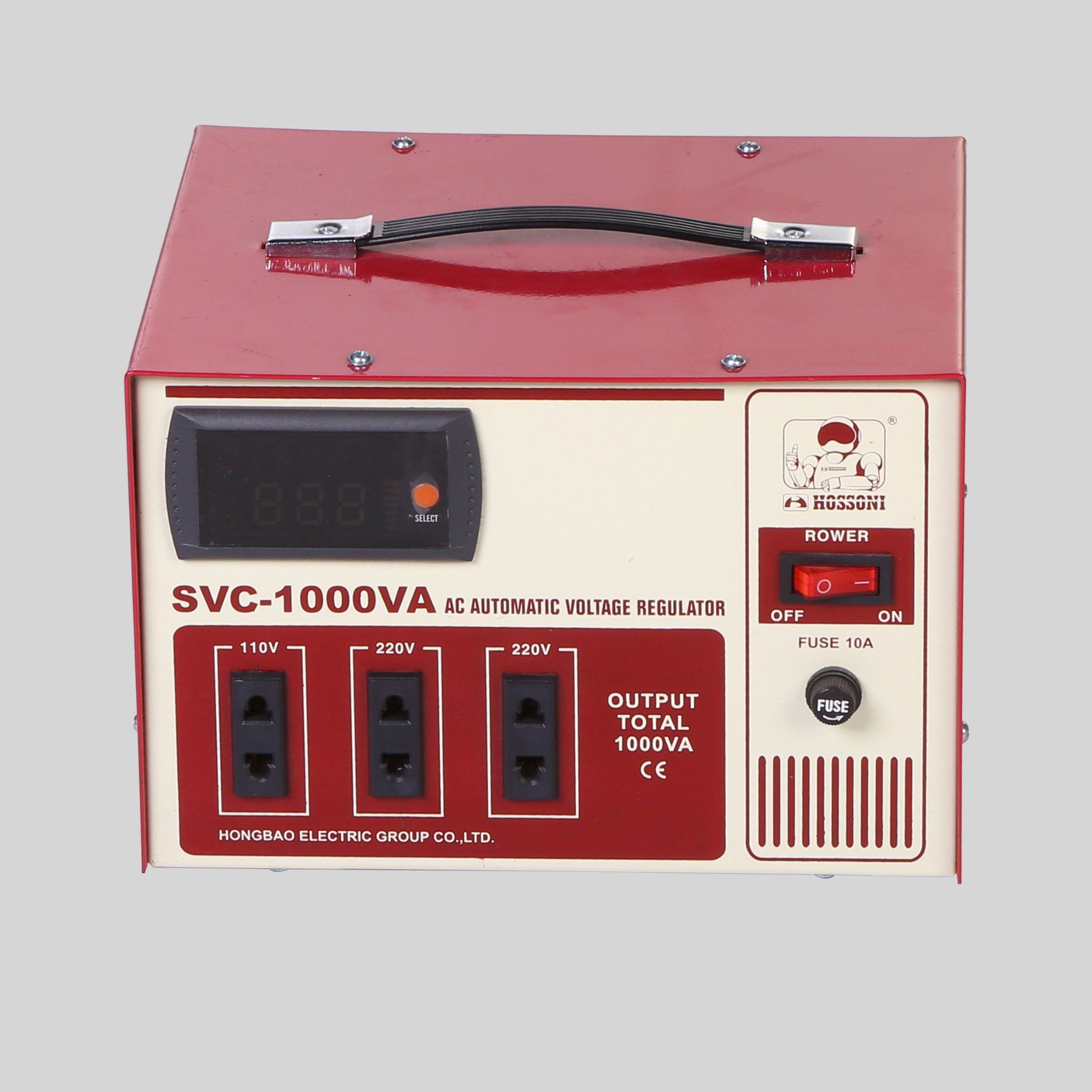

SVC single-phase and three-phase high accuracy full-automatic AC voltage stabilizer is one kind of our dominant products, it consists of auto voltage regulator, servo motor, automatic control circuit, etc. When the power network voltage fluctuates or the load varies, automatic sampling control circuit will send signal to drive the servo motor which can adjust the position of carbon brush of auto voltage regulator, hence the output voltage will be adjusted to rated value and stay in a stable level.
This voltage stabilizer is of common type, it has the function of connecting directly through the commercial power. Compared with other voltage stabilizers, it has the advantage of great variety, complete specification, nice appearance and obvious features of high efficiency, no wave distortion, reliable performance, working continually for long time, furthermore, it is provided with short time delay and over voltage protection, and the long time delay and under voltage protection also can be set according to user requirement. This product is an ideal stabilized voltage supply, widely used in any locations requiring electricity and ensures your power device can run normally.
Application
For office equipment, testing equipment, medical equipment, industrial automation equipment, household appliance, communication system, etc.
Product range
Single phase
(Desk type): SVC-0.5kVA/1K/1.5K/2K/3K/5K/8K/10K
(Vertical type): SVC-5kVA/8K/10K/15K/20K/30K/45K/60K
Three phase
SVC-1.5kVA/3K/4.5K/6K/9K/15K/20K/30K/45K/60K
Single-phase input voltage
| 160v-250v
| Frequency
| 50HZ/60HZ
|
Single-phase output voltage
| 0.5KVA-3KVA 220Vand 110v 5KVA-30KVA 220V
| Adjustable time
| <1s(when input voltage has a change of 10%)
|
Three-phase input voltage
| Phase voltage 160V-250V Wire voltage 277V-430V
| Ambient temperature
| -5 ºC--+ 40 ºC
|
Waveform distortion
| No additional waveform distortion
|
three-phase output voltage
| Phase voltage 220V Wire voltage 380V
| Load power factor
| 0.8
|
Dielectric strength
| 1500V/1min
|
Accuracy of voltage stabilization
| 220V±3% 110V±6%
380V±3%
| lnsulation resistance
| ≥2MΩ
|
