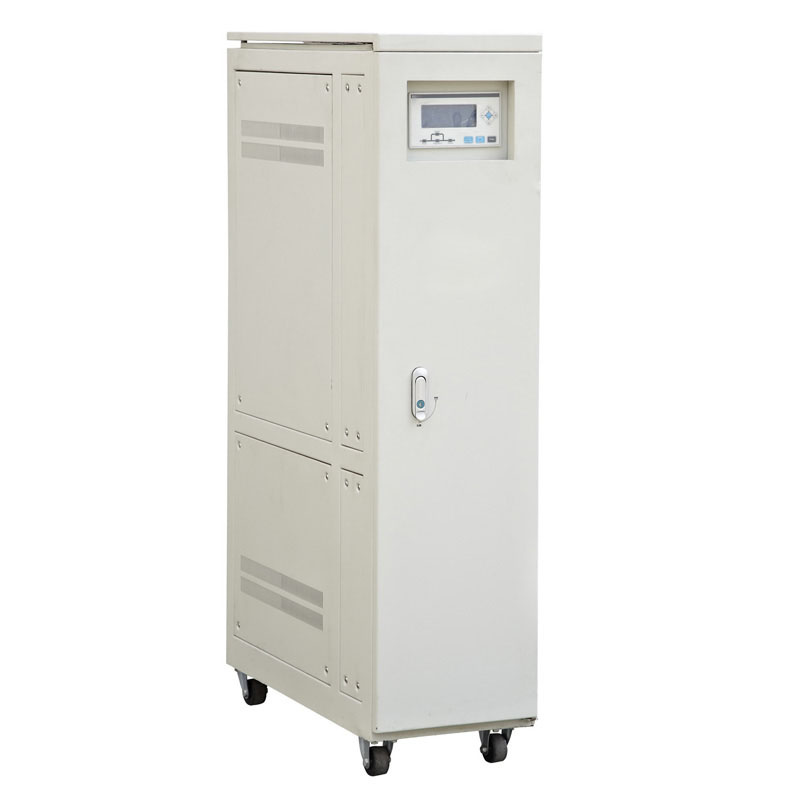

OverviewElevators play an increasingly important role in inhabitation high-rises, busy business building, and hotels. MODERN designed elaborately the elevator specific power conditioner considering voltage pulsation caused by ceaseless ups and downs and frequent runnings and pauses of elevators. The systematic regulation adopts roller type carbon brush and high polishing processing of regulating transformer so that the friction loss of carbon brush can be reduced to less than 0.2mm every 10, 000 times. In addition, swift speed of regulation resonance, impressive ability of anti load impact and flawless protection guarantee normal and cycling operation of elevator. It also has dual delayed function, by-pass function and the auto restore facility after power cut.
Features and benefitsWide input voltage
Maintenance free roller type carbon brush
No additional wave distortion, no phase deviation
Continually operation mode and withstand to instantaneous overload
Protection circuit(over, under voltage and over current auto shutoff after delayed)
Manual by-pass function
Start output delayed function
Lightning device addition is available as request
Applications:Passenger Elevator
Cargo Elevator
Ropeway elevator
Escalator
| Input Voltage | DBW | SBW |
| 220±15%,20%,30%,50% | 380±15%,20%, 25%30%,50% |
| Output Voltage (Preset at 1.5%) | 220Vac±1-5% | 380Vac±1-5% |
| Efficiency | >98% |
| Precision | 1-5% |
| Frequency | 47-53Hz |
| Response Time | <0.5S/20V(Line Voltage) |
| Insulated Strength | 2000V/1 minute without puncture | 2500V/1 minute without puncture |
| Insulated Resistance | >2MΩ |
| Wave Deformation | Nil |
| Isolation transformer | Optional |
| Surge Protection | Optional |
Wenzhou Modern Completed Electric_Power Equipment Co., Ltd. is one of the longest lasting innovators of Power Quality and Energy Saving Products in China. In an industry where companies come and go, MODERN continues to provide the reliability and continuity you need.
Experienced and Fully Customizable Solutions
As a global exporter with over 30 years expertise in power solution, MODERN design, prototype and manufacture custom power requirements for a wide variety of customer and market. We offer a broad range of electrical products from various transformers and voltage stabilizers to sophisticated energy saving power conditioners, power factor correction and harmonic mitigation products. Our experienced staff of engineers is available to assist you in configuring exactly the right product to meet your specifications. They stand ready to work with complex special applications or simple modifications to our standard product line.
ISO 9001: 2008 Certified Processes
ISO Certification ensures that the best of international manufacturing processes are used for every MODERN product. Our conservative design philosophy, tightly controlled product configuration and consistent manufacturing processes ensure that every our customer gets the highest quality product possible. Because we are strongly committed to quality and customer satisfaction, we test 100% of our product before it ships, and then stand behind our workmanship with industry leading warranties.
Outstanding Service
As your power solution provider, we offer a full service customer support program. Beginning with your initial contact, our thorough application assistance ensures that you select the right product and options for your needs. Technical documentation is always available to help with your planning requirements. Prompt shipment is possible through our efficient manufacturing processes. After shipment, we support our products with a comprehensive warranty and extensive field service program.
