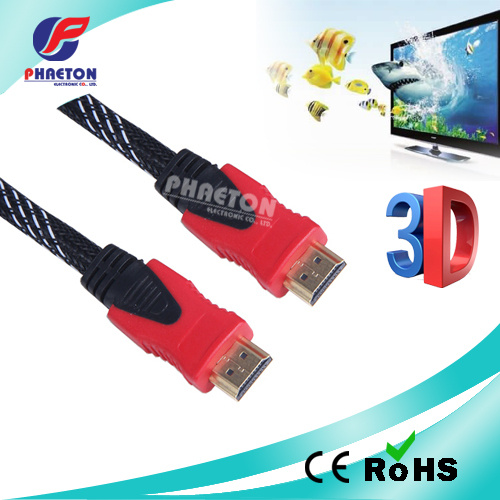

AV Data Communication HDMI Cable with Ethernet Ferrite (pH3-1036)
Price: |
US $ 0.6-1/Piece |
Trade Terms: |
FOB,CFR,others |
Min Order: |
1000/Piece |
Pay Type: |
L/C,T/T,D/P,Western Union |
HDMI Cable 1.4 Version Function:1.Expanded color spaceHDMI 1.4V supports three new color space (gamut), makes users to be able to see better and more correct color on HDTV. HDMI standard defines a more traditional RGB color model with a wider range of available colors visible to guarantee a larger area of the panchromatic domain is close to human eyes.2. Audio Return ChannelThe new channel allows the HDTV through the HDMI cable directly to the audio features A / V Receivers, without additional one cable.3.Support 3D DisplayThe new specification will define common 3D HDMI device formats and resolutions for home 3D system input and output section standardized, up to two 1080P resolution video streams.4.Support most of multiplayers devicesHDMI is a standardized definition era of digital audio / video interface technology that can be used to set-top boxes, DVD players, personal computers, televisions, cameras, mobile phones and other digital devices with HDMI interface. HDMI can transmit both audio and video signals, the maximum data transfer rate of up to 10.2Gbps. HDMI while with broadband digital content protection.5.Support newest 2KX4K resolutionHDMI device supports HD resolution will reach 4KX2K, four times the current 1080P. The specific format: 380X2160 24Hz/25Hz/30Hz; 4096X2160 24Hz. Product Warranty:1.We guarantee each HDMI cable will be tested when finished in factory.2.If there are bad cables,we will promptly pay compensation to our customer without any charge.Features:Spec. Item | Details: |

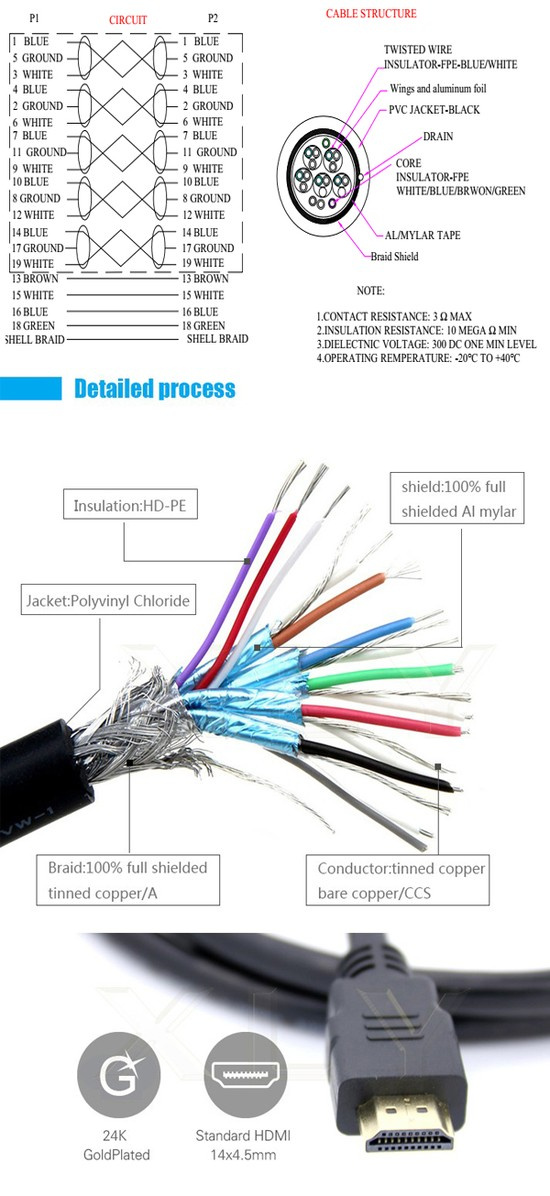

Connector | 24K Gold-plated |
Length | from 1-15meter |
Speed | Super high 10.2Gbps |
Working Temperature | -20 to 80 degree |
Cable Conductor | 36-22AWG |
Material | Tinned copper,bare copper or slied copper |
Differential impedance | 100+/-15ohm |
Far-end Crosstalk | -26db@300k-5GHz |
Attenuation | 5dB@300KHZ-825MHz |
Intra-pair skew | 11ps(max) |
Inter-pair skew | 1780(max) |
Differential Delay | 5.05ns/m(max) |
Shape | Round Cable |
Spec. | HDMI 1.3&1.4 Male/Male |
Applications | PDPTV,LCD,HDTV,RPTV,DVD .etc |

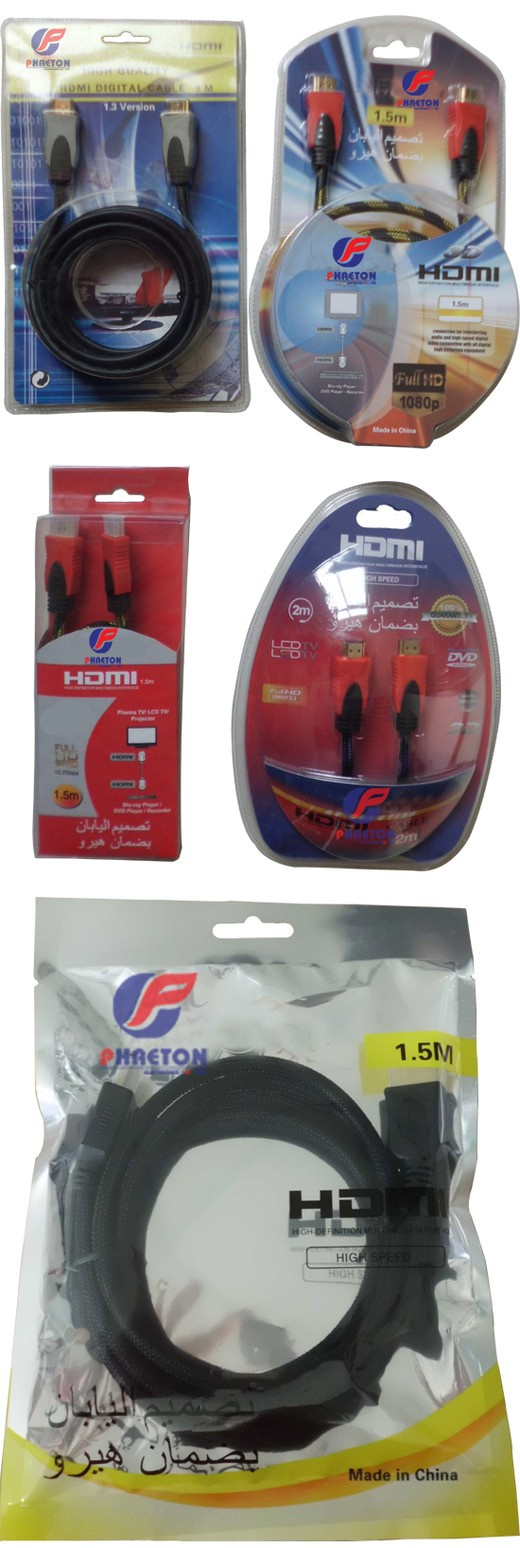

PackagePackaging:1.One PE bag for one cable and then placed in one carton2.According to customer's requirementsFAQ:
Q1:Are you a trading company or manufacturer?We are professional manufacturer for audio&video cable . also we supply of different electrical and electronic items Q2: why will you choice us :more than 15 years of professional teams will give you good quality products ,good service ,and reasonable price .Q3:Can we have our logo or company name to be printed on your products or the package? We offer OEM , ODM . our designer can make special design for you .Q4: Is the MOQ fixed? The MOQ is flexible and we accept small order as trial order.Q5:Can I have a visit to you before the order?Sure,welcome to visit our company ..our company is only one hour by train from shanghai
Prod Model: |
PH3-1036 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Application: |
Multimedia |
Shielding: |
Braid |
Cable Conductor: |
36-22AWG Standard |
Cable Material: |
Bare Copper, Tinned Cooper |
Jacket: |
PVC Injection Molding |
Established in 1996, Phaeton Electronic Co., Ltd. is specialized in manufacturing all kinds of. Audio/video cables, HDMI cable. Power cables, electronic connectors. Plug adaptor, LED lighting, CATV products et. Our products were exported to Europe, American, Middle East, Africa. Steady quality and best prices, we have built up high reputation among customers in these area, and some of them become our long-term customers finally.
Our company according the ISO9001: 2000 international quality management system certification. Quality products, prompt delivery and low cost will be guaranteed. OEM and ODM orders are welcome.
High speed, Superior quality, Good service is our development guideline. We are eager to cooperate with all the old and new customers to create more good future!
