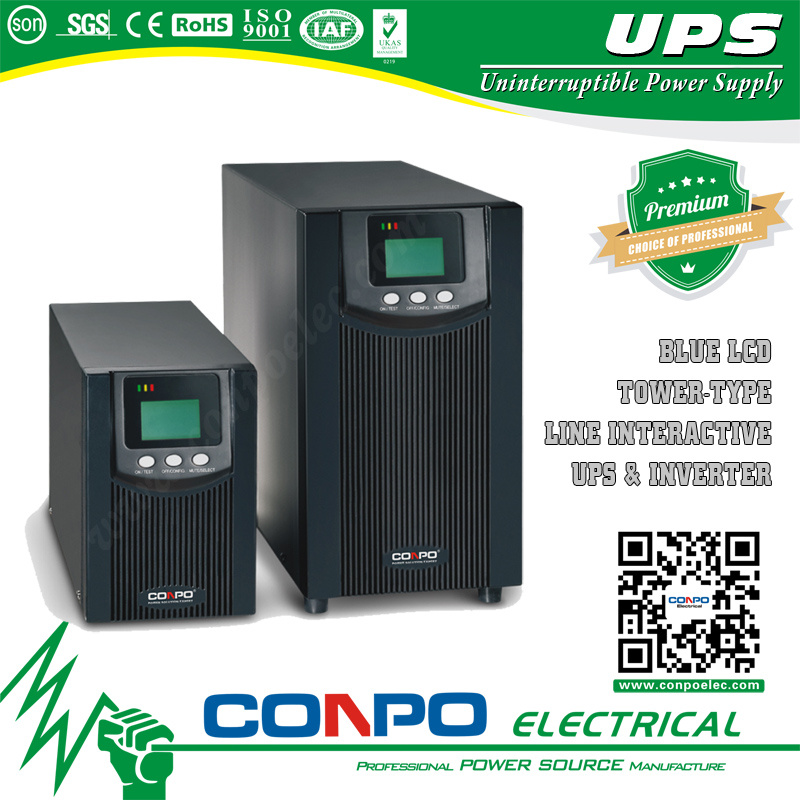

AV Series Line Interactive UPS & Inverter
| Price: |
Negotiable/Piece |
| Min Order: |
10/Piece |
| Pay Type: |
L/C,T/T,Western Union,Paypal,Money Gram |
System overviewAV series Line Interactive UPS is a full digital control of the design concept, application of intelligent CPU control System, combined with CMOS and PWM perfect, adopt frequency online interactive structure, built in power Intelligent charger novel uninterruptible power supply products. Particularly suitable for power environment of the region Use, pure sine wave output, can load drive all types.AV series Line Interactive UPS including 500VA-8KVA power range. Not only can provide power supply protection for the office system, and can drive all kinds of household electric Device, also can be extended to outdoor type UPS used in harsh environment, for all types of base station of choice Products. Range of applicationsOffice Automation, Production Equipment, Electronic & Telecom, Medical & Education, Data Center, Industrial Automatic Control, Finance & Securities, Broadcasting & Transportation
Main Features1. Advanced all-digital control Machine with CPU control, all the operational parameters of UPS are controlled by the CPU, ensuring the UPS is in the best working condition. Improved the accuracy of the product parameter, ensured full compliance of product performance, the product failure rate effectively reduce. 2. Intelligent Charger Built-in smart charger, with TOP charge type (charging type of high current at the initial, and balanced type and floating type alternating charging), shorten the battery charging time, extend the battery life, and it is suit to the areas of high rate power cut. 3. Wide input voltage range (110V-300V) Interactive structural design, low frequency type program, with superior shock resistance. To satisfy the demand for different type of load, this might be widely used in household, commercial, industrial, outdoor base station. 4. Special Protection method 7000 Series takes muti-level protection mode of output, which could resist the impact effectively, and also with the short circuit protection function, which could enhance its reliability.5. Well unattended function When the main power is abnormal, the battery will supply power instead till low-voltage appeared, and then UPS shut down; when the main power come back, the UPS will start working automatically, and it will charge for the battery at the same time. No need to turn on the UPS manually. 6. High Efficiency and Energy Saving When AC power is normal, the inverter is under dormant status, the main power through the built-in voltage regulator(AVR)directly to supply power to the loads, and its efficiency is as high as 98%. Therefore it is called "Green UPS" which in fullcompliance with the spirit of low carton.Specifications| AV05K~AV2K(300W-1.2KW Line Interactive UPS) |
| Mode | AV0K5 | AV1K | AV1K | AV1K5 | AV2K | AV2K |
| Rated Power | 300W | 600W | 600W | 900W | 1.2KW | 1.2KW |
| Battery Voltage | 12V | 24V | 36V |
| Charge Current | 15A |
| Transfer Time | ≤8ms |
| Size (WXDXH)mm | Chassis | 140x390x210 |
| Inner Packing | 230x472x325 |
| Outer Packing | 480x485x337(2Pcs) |
| Weight(Kg) | Net Weight | 8 | 11 | 11 | 13.4 | 16.8 | 16.2 |
| Inner Packing Gross Weight | 8.9 | 12 | 11.9 | 14.4 | 17.8 | 18.5 |
| Outer Packing Gross Weight | 18.8 | 25 | 24.8 | 29.8 | 36.6 | 38 |
| AV3K~AV8K(1.8KW-5KW Line Interactive UPS) |
| Mode | AV3K | AV4K | AV5K | AV6K | AV7K | AV8K |
| Rated Power | 1.8KW | 2.4KW | 3KW | 3.6KW | 4.2KW | 5KW |
| Battery Voltage | 48V | 96V |
| Charge Current | 15A | 10A |
| Transfer Time | ≤8ms |
| Size (WXDXH)mm | Chassis | 190x400x330 | 240x450x420 |
| Inner Packing | 315x565x465 | 305x515x490 |
| Outer Packing | 330x580x480 | 317x527x530 |
| Weight(Kg) | Net Weight | 21.2 | 25.5 | 27.9 | 26.8 | 28.9 | 33.4 |
| Inner Packing Gross Weight | 23.5 | 27.8 | 31.2 | 28.8 | 30.9 | 35.4 |
| Outer Packing Gross Weight | 24.5 | 28.8 | 32.2 | 29.8 | 31.9 | 36.4 |
| Input | Voltage | 100/110/120/127/220/230VAC(+25%,-36%) |
| Frequency | 45Hz~54Hz / 55Hz - 65Hz |
| Output | Voltage | Main power mode: 100/110/120/127/220/230VAC(+ 11%,-13%) Inverter mode:100/110/120/127/220/230VAC( ± 3%) |
| Frequency | Main power mode: same frequency Inverter mode:50Hz/60Hz±0.5 |
| Wave Form | Sine wave |
| Display | LCD | LCD Display |
| Protection | Charge | By TOP charging, speed up the batter charging speed, extend battery life |
| Overload | Overload under battery mode, 100% load - Alarm; Overload 110% - Auto shut down after 30s , overload 120% - after 2s;
Overload under main power mode, it won't be shut down but provide alarm. |
| Charge Current | Output short-circuit the UPS automatically shut down output, the machine automatically resume output after troubleshooting |
| Battery Low | The UPS automatically shut down,it will charge automatically when main power record. |
| Remarks: | Products specifications are subject to change without notice! |
| Prod Model: |
AV |
| Phase: |
Single Phase |
| Type: |
Line Interactive |
| Protection: |
Full Protections |
| Application: |
Industrial/Medical/Office/Army/Security Area etc. |
| Classification: |
Line Interactive UPS |
