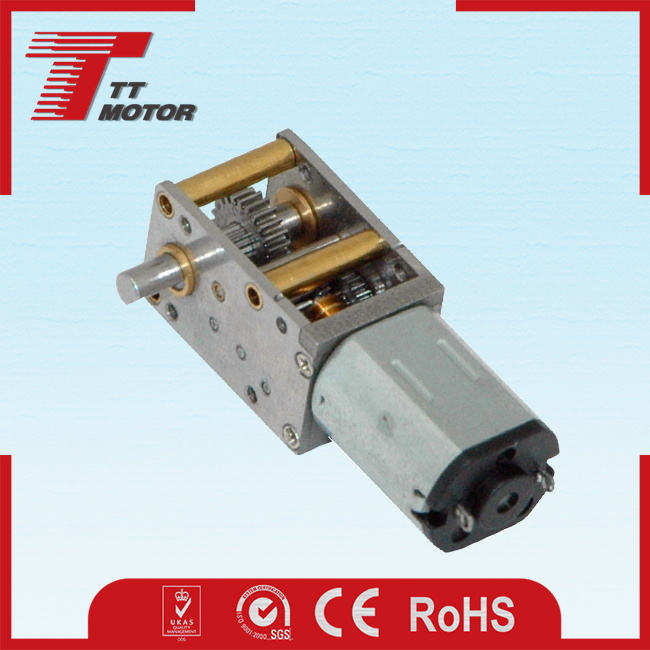

Aviation models DC 12V worm gear small powerful electric motor

Aviation models DC 12V worm gear small powerful electric motor


Main Features
1.OEM/ODM 12*20mm worm gearbox plus N30VA permanent magnet DC motor
2.Small size dc gear motor with low speed and big torque
3.12*20mm gear motor provide 0.1Nm torque and more reliable
4.Suitable to small diameter, low noise and big torque application
5.DC Gear motors can match encoder, 3ppr
6.Reduction ratio:41,82,95,190,219,438,504,1007


Model:Motor TWG1220-N20VA
TFF-N20VA-13110	Rated voltage:2.4V DC	Rated speed:12000r/min	Output power:0.31W
	No-load speed:14800r/min	Rated torque:2.5g.cm	Stall torque:13g/cm
	No-load current:60mA	Rated current:200mA	Stall current:1.20A
TFF-N20VA-09220	Rated voltage:5.0V DC	Rated speed:12000r/min	Output power:0.31W
	No-load speed:14800r/min	Rated torque:2.5g.cm	Stall torque:13g/cm
	No-load current:30mA	Rated current:120mA	Stall current:0.52A
TFF-N20VA-05430	Rated voltage:12V DC	Rated speed:12500r/min	Output power:0.35W
	No-load speed:16000r/min	Rated torque:3.0g.cm	Stall torque:13g/cm
	No-load current:15mA	Rated current:60mA	Stall current:0.25A


Gear motor technical data :TWG1220-N20VA-13110-XXX

Reduction ratio	82	190	438	1007
Length mm	20	20	20	20
No-load speed rpm	175	75	33	14
Rated speed rpm	145	63	27	11
Rated torque kg.cm	0.12	0.26	0.5	1.0
Max.momentary tolerance torque kg.cm	0.6	1.3	2.8	3.0

Gear motor technical data :TWG1220-N20VA-09220-XXX

Reduction ratio	82	190	438	1007
Length mm	20	20	20	20
No-load speed rpm	175	75	33	14
Rated speed rpm	145	63	27	11
Rated torque kg.cm	0.12	0.26	0.5	1.0
Max.momentary tolerance torque kg.cm	0.6	1.3	2.8	3.0

Gear motor technical data :TWG1220-N20VA-05430-XXX

Reduction ratio	82	190	438	1007
Length mm	20	20	20	20
No-load speed rpm	190	80	35	15
Rated speed rpm	150	65	28	12
Rated torque kg.cm	0.15	0.6	0.7	1.0
Max.momentary tolerance torque kg.cm	0.6	1.3	2.8	3.0


Product Application
Windows or doors electric locks, micro hoist, Garbage disposal, water IC CARDS, toys and gifts, figer - electronic locks, optical devices,
Card machine, robot, towel machine, office equipment, household appliances, automatic actuator,etc.


Other Applications:
Business Machines:	ATM, Copiers and Scanners, Currency Handling, Point of Sale, Printers, Vending Machines.
Food and Beverage:	Beverage Dispensing, Hand Blenders, Blenders, Mixers, Coffee Machines, Food Processors, Juicers, Fryers, Ice Makers, Soy Bean Milk Makers.
Home Entertainment and Gaming:	Gaming Machines, Video Games, Optical Disk Drives, RC and Power Toys.
Home Technologies:	Home Ventilation, Air Purifiers and Dehumidifiers, Range Hoods, Washers and Dryers, Refrigerators, Dishwashers, Floor Care, Whirlpool and Spa, Showers, Smart Metering, Coffee Machines.
Lawn and Garden:	Lawn Mowers, Snow Blowers, Trimmers, Leaf Blowers.
Personal Care:	Hair Cutting, Hair Care, Massagers.
Power Tools:	Drills and Drivers, Sanders, Grinders, Polishers, Saws.
Camera and Optical:	Video, Cameras, Projectors.

Packing & Delivery
Packaging: single carton packing, 100 pieces per box.
Shipping time:
DHL: 3-5 working days ;
UPS: 5-7 working days;
TNT: 5-7 working days;
FedEx: 7-9 working days;
EMS: 12-15 working days;
By Sea: Depends on which country


Our Company
TT Motor (HK) Industrial Co., Ltd has been specializing in micro motors, gear motors and their respective parts since 2000.
Our products are widely used in entertainment systems, automobiles, home and industrial appliances and tools and many others. Our products are dependable and long-lasting, and backed by years of experience. We export 98% of our output worldwide.
By leveraging our hard-won reputation for honesty, dependability and quality, TT Motor aims to continue as a pioneer in the sales overseas by seeking global partners. If your company is an end-user of micro-motors, a distributor or an agent, please contact us. We look forward to being able to work together with you in the near future.
