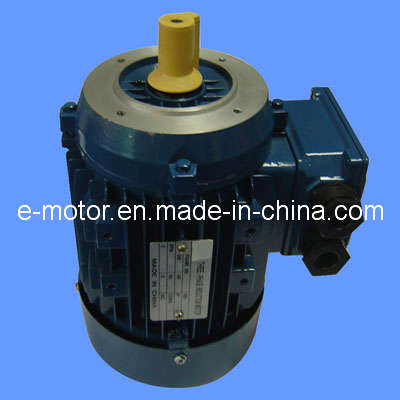

B14 Mounting Three Phase Motor

Prod Model:	Y2 series, B14
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Shell:	Aluminium
Phase:	Three
Application:	Universal
Operating Speed:	Constant Speed
Number Of Stator:	Three-Phase
Species:	Y, Y2 Series Three-Phase
Rotor Structure:	Winding Type
Casing Protection:	Closed Type
Starting Mode:	Direct on-line Starting

Product Description

Y2 Series motors are totally enclosed fan cooled (TEFC), squirrel cage type three-phase induction motors, developed with new technique. They are renewal and upgrading products of Y series. The efficiency meets EFF2 standards. The mounting dimension is fully conformed to IEC standard.
The motors have the merits of beautiful modelling, compact structure, low noise, high efficiency, large starting torque, easy operation, etc. The motors are adopted with F class insulation and designed with assessing method for insulation system according to international practice, it enhances greatly motor's safety and reliability. These motors have reached an international advanced level of 1990's.
Y2 series motors are widely used in various machines and equipments, such as drilling machines, blowers, pumps, compressors, transporters, agricultural and food processing machines.

OPERATING CONDITIONS

Ambient temperature	-15≤ θ ≤ 40
Altitude	Not exceeding 1000 meters
Rated voltage	380V± 5%
Rated frequency	50Hz (60Hz is available on request)
Connection	Y Star-connection for 3kw and below
Delta-connection	for 4kw and above
Duty/Rating	Continuous (S1)
Insulation class	Class F
Protection class	The main body of the motor IP54
The terminal box	IP55
Cooling method	IC 411
