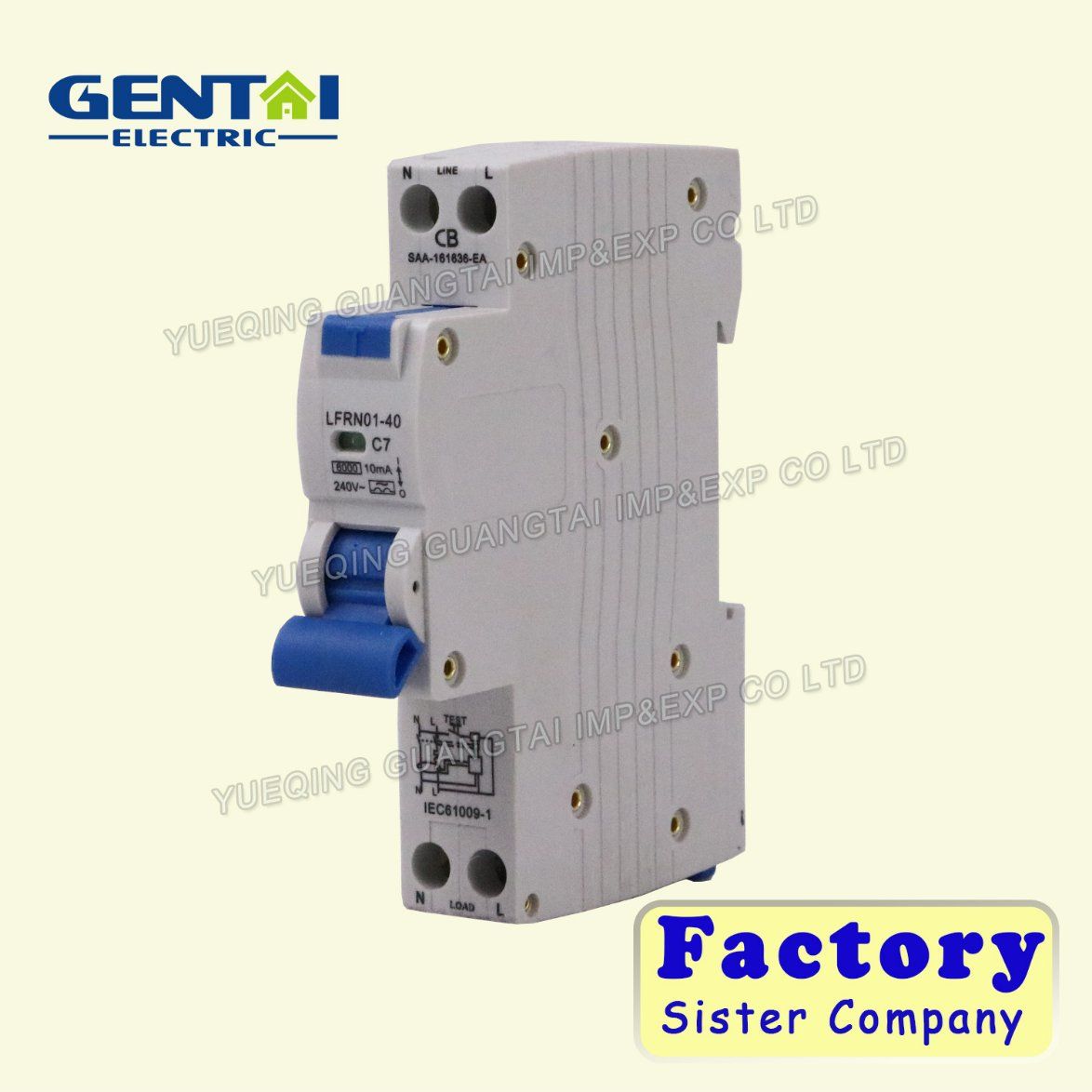

Beat Sale RCBO Circuit Breaker MCB, Miniture Circuit Breaker

Beat Sale RCBO Circuit Breaker MCB, Miniture Circuit Breaker


Application:
Residual Current Circuit Breaker provide the function of isolation switching and earth leakage protection of electrical
circuits.And also provide the indirect protection of the operator's body against the dangerous effects of electric current and
provide the protection of the fire caused by the electrical circuit fault.
Standard: IEC61008

Advantage:
1.Our products have the guarantee period of 36 calendar months,that is a high quality and reliability;
2.Our products have an excellent ratio between price and quality ,you can possess them by competitive price and high quality;
3.The fast and flexible production form aim at the customer require;
4.The deliveries exactly in accordance with customer orders
5.The fast transportation.
6.Adopt electromagnetic style release , can play a leak electricity and electric shock protecting role while breaking in zero Line.

Construction Features:
1.Measuring component and buckling component of products is located between enter line end and entrance line end ;
2.Movement characteristic of products can not be changed with outside mechanical tool ;
3.The operating organization has the free function to take off and buckle;
4.Operate part can not be taken down from the shell outer of products , the shell can not influence the operating organization
to work , the accessory group which replace the feelers pressure, should guarantee the feelers pressure does not change
while running.

Normal operation and mounting requirement:
1.Circumstance temperature -5°C ~ +40°C, average temperature within 24h not exceeding +35°C.
2.Altitude above sea level less than 2000 m.
3.Humidity not exceeding 50% at 40°C and not exceeding 90% at 25°C.
4.Installation class II or III.
5.Pollution class 2.
6.Installation method DIN Rail mounting type.
7.The external magnetism shall not be more than 5 times of terrestrial one.
8.Product shall be installed at the place where there shall be no severe impact and vibration.
9.Product shall be vertically mounted onto standard Din rail 35mm.



Specification:
professional manufactures RCBO

Electrical features		Rated current In	A	16, 20, 25, 32, 40, 50, 63, 80, 100
		Poles	P	2,4
		Rated voltage   Ue	V	240/415
		Insulation   voltage Ui	V	500
		Rated   frequency	Hz	50/60
		Rated   breaking capacity	A	3000, 4500
		Rated impulse   withstand voltage (1.2/50) Uimp	V	4000
		Dielectric   test voltage at ind. Freq. for 1 min	Kv	2
		Pollution   degree		2
		Thermo-magnetic   release characteristic		B, C, D
Mechanical features		Electrical   life	t	4000
		Mechanical life	t	10000
		Protection   degree		IP20
		Reference   temperature for setting of thermal element	°C	30
		Ambient   temperature (with daily average≤35°C)	°C	-5~+40   (special application please refer to temperature compensation correction)
		Storage   temperature	°C	-25~+70







FAQ:

Q1:Are you a trading company or manufacturer?
We are professional manufacturer for distribution board and meter socket . also we supply of different electrical and electronic items
Q2: why will you choice us :
more than 10years of professional teams will give you good quality products ,good service ,and reasonable price
Q3:Can we have our logo or company name to be printed on your products or the package?
 We offer OEM , ODM . our designer can make special design for you .
Q4: Is the MOQ fixed?
The MOQ is flexible and we accept small order as trial order.
Q5:Can I have a visit to you before the order?
you are welcome to visit our company ..
our company is only one hour by Air from shanghai
