| Prod Model: |
DNY belt filter press |
| Method: |
Combined Treatment |
| Usage: |
Industrial Sludge Treatment |
| Belt Width: |
500-3000mm |
| Machine Name: |
Belt Filter Press |
| Warranty: |
1 Year |
| Model No: |
Dny Belt Filter Press |
| Machine Material: |
Ss 304 Belt Filter Press Machine |
| Working Type: |
Continuous Belt Filter Press |
| Application: |
Sewage Sludge |
| Capacity: |
Big Capacity Filter Press |
| Type: |
Belt Filter Press |
Product Description

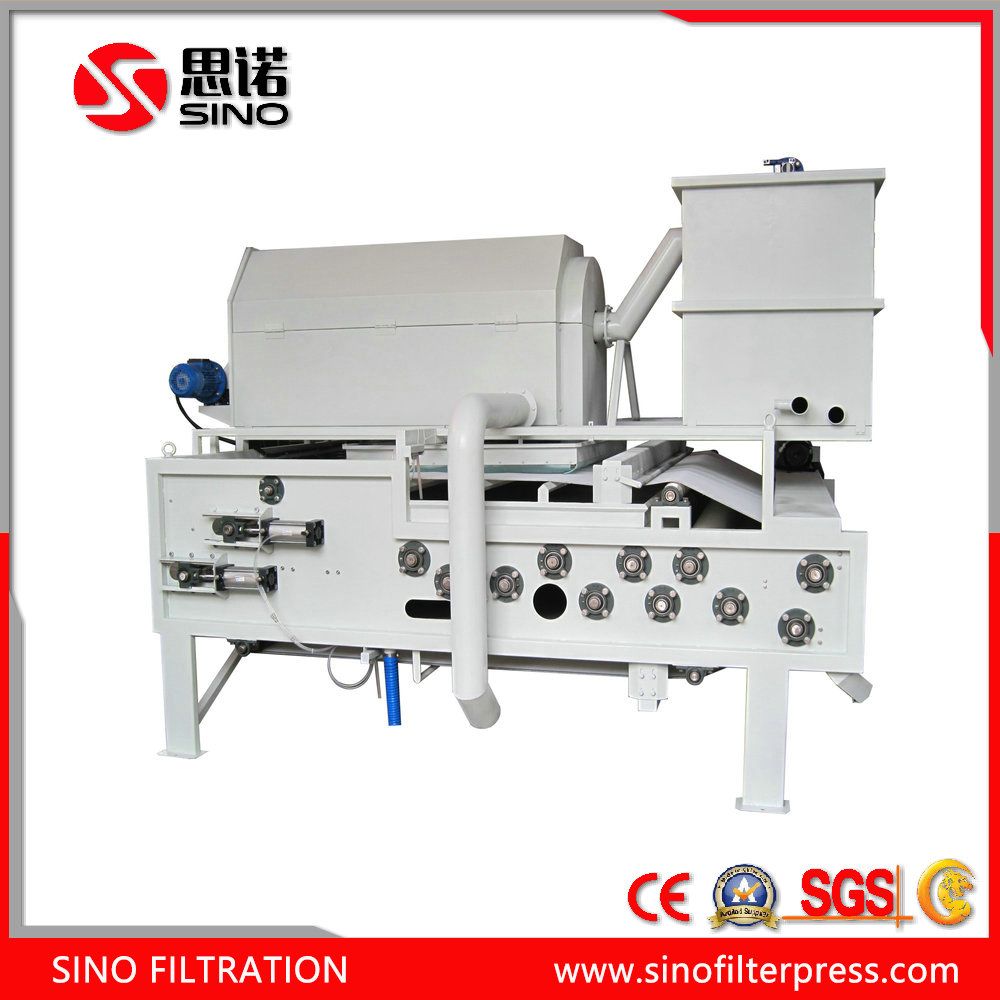

Belt Filter Press Integrated With Belt Thickening System
Introduction:
belt filter Press adopt latest advanced sludge dewatering technology. It can be used for different sludge in varieties of industries, it including printing & dyeing, food & beverage, chemical fiber, paper-making, livestock, pharmacy and leather etc.
Operation principle of Belt filter press:
Operation principle of Belt filter press is that two filter clothes squeezing materials. Liquid is discharged out of machine through filter belt, while the solid particles formed filter cake and trapped between the filter cloth. And belt filter press dewatered dewatering process including preprocessing, gravity dewatering, wedge-shaped dewatering and squeezing dewatering. It is mainly used for all kind of wastewater treatment, for example,paper sewage, sewage sewage, municipal sewage, food sewage and so on.
Features of belt filter press:
1.It is made of 304 Stainless Steel material, have a large structure stiffness.
2.steady operation and low noise.
3.It is equipped with advanced thickening equipment. Have a good flocculation effect and low running cost.
4.It has longer filter belt, have a good filtering effect and low cake moisture.
5.Increase dewatering rollers ,have a better dewatering effect.
6.Gravity dewatering zone is equipped with advanced distributing device to scatter materials uniformly and prolong filter cloth's life-span.
7.Continuous working, big capacity and high efficiency.
8.It is equipped with backwash device, automatic filter cloth washing ,ensure filter cloth clean and have good dewatering effect.
9.It is equipped with advanced electronic control system.the operation is easy and safe.
Packing & Delivery of DNY Belt Filter Press:
Delivery: around 4 weeks.
Packing: The packing is seaworthy packing.
After Sales Service of DNY Belt Filter Press:
1. Documents supplied: Foundation/Circuit Diagram.
2. Site commissioning, installation and training service are valid.
3. Warranty: 13 months after B/L data.
SINO FILTRATION is a little special comparing with normal filter press manufacturer. We are practical and focus on customer's service and always devotes to an hospitable life and resource conservation with our environmental protection policy, so we are specializing in the supply of a comprehensive and innovative range of excellent solid/liquid separation equipment and services.
We have a talented team of engineers who are celebrated for their innovation and excellence. Prior to joining our team, they have rich experience in their professional field. Our main goal is designing, manufacturing environmentally friendly filtration equipment. We mainly focus are various filter presses, belt filter presses, screw filter, bag filters etc...These filters are used in water and waste water treatment processes as well as in various industries. With development, our business expanded to the surrounding fields, such as pumps. Over the years, our business has grown out of our factory to become one of the leading equipment manufacturers in the province.
We believe our customer want reliable and timely products with great value, so our commitment is to offering quality, reliability, quick delivery and value defines. In our industry, customer service is often an afterthought. However, we go the extra mile to help customers on orders large and small and endeavor for easy installation. When you purchase equipment supplied by SINO FILTRATION, we not only offer the solutions you seek, but also ensure you feel confident in your investment.
SINO FILTRATION sees a continuous need for co-operation and partner-ship with other specialist companies and sincerely looks forward to working with you!
