| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Power: |
1W |
| Forward Voltage: |
3.0-3.6V |
| Forward Current: |
350mA |
| Luminous Flux: |
60-80lm |
| Primary Wavelength: |
515-525nm |
| Life Span: |
5,0000h |
Product Description
Shenzhen Geitan Opto-Electronics Co. Ltd is a professional LED manufacturer with a history of 10 years,
Specializing in high power led, smd led, led drivers and led light shell fittings. Getian has a production
Area of over 12, 000 square meters with around 600 employees. With 10 years' experience, Getian has
Successfully built its name as the first-class high power led manufacturer and ranks top 5 inside China in
Terms of quality and factory scale. We'e successfully built strategic cooperative partnership with Bridgelux and become Epistar's Top 5 Client.

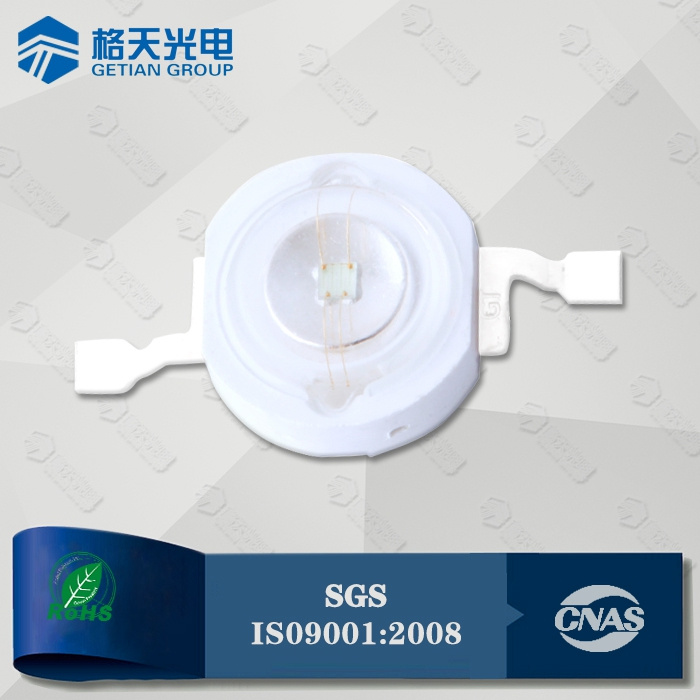

Best Offer Green 1W High Power LED Diode
1) High quality raw materials (Bridgelux/Epistar chip, Intematix phosphor, Ticor silver epoxy)
2) Excellent color unity (two times of color seperation process)
3) Brightness decay can be as low as 3%. (0% brightness decay for the first 3, 000 hrs)
4) Equipped with 16 automatic production lines. ( Production capacity: 10KK high power led/month, 30kk smd led/month. )
5) Competitive factory price with superior quality( strictly tested)
6) Top 50 LED Manufacturer in China
7) OEM/ODM service is available

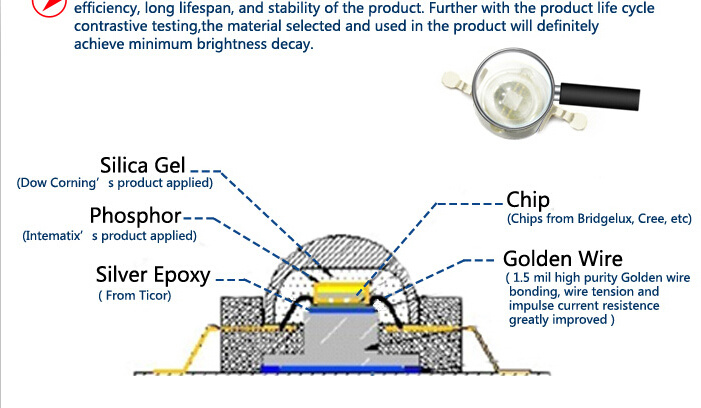

GETIAN LED Material Review:
Chip: USA Epileds Chip
Gold Wire: 1.2 mil 99.99% purity.
Copper Base: Red Copper Base (400W/mK).
Phosphor: Intematix (Got patent on Phosphor Recipe. )
Wire Soldering: BBOS Technique.
Certificates Granted: CE, RoHS, SAA, LM-80 (Energy Star), ISO9001, more than 30 Patents in LED
Design and Manufacturing Process, Certificate of Authorization from Bridgelux/Epistar.
Testing Equipments: Sphere Testing and Calibration Machine (Zvision, Everfine), UV Aging Test Machine, Temperature Shock Testing and so on. (11 reliability tests).
Product Lines:
| High Power LED | (1-3W, 360-850nm, CRI up to 95, up to 160LM/W) RGB, R, G, B, Y |
| LED COB/Module | 1-500W, CRI up to 90, up to 120-130LM/W |
| SMD LED | 3528, 2835, 5050, 3030, 5730, 0.06-1W, CRI up to 90, up to 120-130LM/W |
| LED Lamp Shell Fittings | Bulb Light, Spot Light, Flood Light, Down Light |
| LED Driver |
|
Shenzhen Getian Opto-electronics Co., Ltd. is a manufacturer specializing in LED components aiming to a global presence. Since established in 2005, GeTian has delivered the LED components products, technological innovations, and unparalleled customer trust level around the domestic and oversea marketing for over years.
Total investment is 50, 000, 000 yuan and production area is over 5, 000 square meters. Getian has 500 employees and more than 70 are R&D staffs. We have equipped full-automatic production machines for all the key manufacturing processes and full set testing machines. The annual capacity of high power LED is over 60, 000, 000PCS.
With more than 7 years' outstanding growth, Getian has become a group corporation which has high power LED, SMD LED and LED driver as the core business units. Shell fittings of LED, mold design and manufacturing are also well developed to have Getian be able to provide more comprehensive and professional service all over the world.
Getian insist that quality is one of core competence. All of the main products are listed with CE, RoHS, SGS certification and will pass in-house robust reliability testing before leaving factory. Besides, more than 12 patents have been obtained in LED design and manufacturing field. We successfully got ISO9001: 2008 certification and started running the ERP and BPC system in 2009. With all these outstanding performance, Getian achieved series of great honors, such as "Top 50 LED Manufacturer in China", "Hi-Tech. Enterprise", "Shenzhen Hi-Tech. Enterprise", and "Shanghai Expo Exhibition Enterprise", etc.
Warmly welcome all fields of friends to visit our company and negotiate trade.
