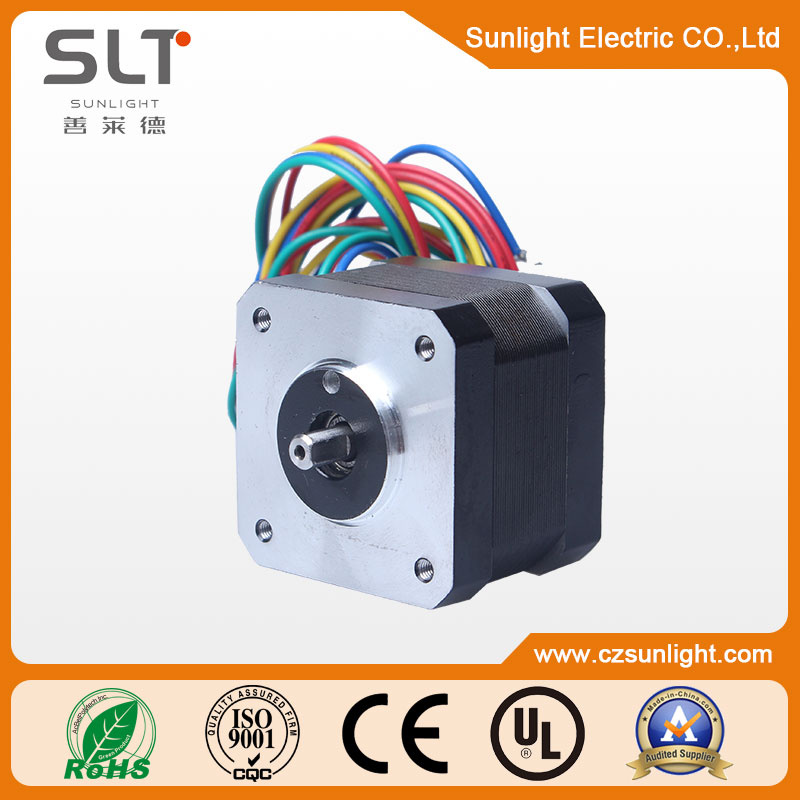

Best Price DC Eletric Small Stepper Motor for Textile Machine

Prod Model:	SLT42S01
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Step Angel Accuracy:	+/-5%
Resistance Accuracy:	+/-10%
Inductance Accuracy:	+/-20%
Temperature Rise:	80° C Max
Ambient Temperature:	-10oc-+50oc
Insulation Resistance:	100mmin.500 VDC;
Dielectric Strength:	500V AC for One Minute
Shaft Radial Play:	0.06max
Shaft Axial Play:	0.08max
Number Of Stator:	Three-Phase
Excitation Mode:	HB-Hybrid
Operate Mode:	The Three Single Phase
Type:	Magnetic-Electric
Brand:	Slt

Product Description

1,step angel accuracy:+/-5%( full step,no load);
2,Resistance accuracy:+/-10%;
3,Inductance Accuracy:+/-20%;
4,:Temperature Rise:80° C Max.(rated current, 2phase on);
5,Ambient Temperature:-10ºC-+50ºC;
6,Insulation Resistance:100MMin.500 VDC;
7,Dielectric Strength:500V AC for one minute;
8,Shaft Radial play:0.06Max. (450g-load);
9,Shaft Axial play:0.08Max. (450g-load);
10,Insulation Cldss:Class B 130°


Advantages of Micro DC Motor

1, Economic and practical products from Sunlight , reliable performance,
2,Choose Sunlight, choose a rest assured,
3,Advanced production lines and test rooms,
4,Perfect QCP.(Quality control plans)

Technique Specification
model		single shaft	single shaft	single shaft	single shaft
		42H33M-0606A	42H33M-0406A	42H33M-0316A	42H33M-1334A
		double shaft	double shaft	double shaft	double shaft
		42H33M-0606B	42H33M-0406B	42H33M-0316B	42H33M-1334B
voltage	V	4	4	12	2.8
current	A	0.6	0.4	0.31	1.33
Phrase Resistance		4.2	10	38.5	2.1
Phrase Inductance	mH	4	9.5	33	4.2
Holding Torque	Oz-in	22	22	22	30
	g-cm	1580	1580	1580	2200
Lead Wire	No.	6	6	6	4
Rotor Inertia	g-cm2	35	35	35	35
Motor Weight	Kg	0.22	0.22	0.22	0.22
Motor Length	mm	33	33	33	33

Application

A:Car (Fan,View mirror,wiper blade,car seat adjustment and so on.)
B:Home Appliance ( Electric cooker, Electric mop and other products.)
C:Medical equipment and beauty products.
D:Office products (such as printer, scanner......)
E:Electric tools and garden tools.


Why choose us ?

A:Quality in sure.
Quality is our culture!
Our company has passed ISO9001 and CCC International Quality Authentication System, so we can totally guarantee the excellent quality for you

B.Price is competitive.
Our Company has competitive raw materials,in the consequence we also have competitive price in the market.

C.Service is excellent.
With solid researching and developing strength,well-trained employees and strict inner management,our service is humanized and considerate.

D.Delivery on time.
Honesty is our Principle
Our company has formed our own distinctive enterprise manner-researching intensively,producing professionally and serving devotedly,so we will keep highly appointment with all our customers.


About Sunlight

1,The company covers an area of 5000 square meters;
2,Modern workshops have advanced production lines and professional knowledge of assembly.
3,Excellent sales team and after-sales service
4,Professional technical team
5,Broad market:Europe(Germany....)America(America,Canada...)
Asian( Korea, Japan...)


Our services

Need products in hurry?
We are a professional manufacturer of electronic components and 3D printer parts and flight control parts etc product in China. So we can make your order into reality in the shortest time!
Immediate response to your request!
We know time is money.Pls don't hesitate to contact us with phone,email or live chat.We'll do our best to reply you within 24 hours!


Shipment and Package

a.Strong packaging to ensure safty during transportation.
b.This supplier supports Trade Assurance.

Follow the Trade Assurance process and get:
1.On-time shipment and pre-shipment product quality safeguards
2.Refund up to the covered amount agreed with your supplier
3.Supplier's Trade Assurance Limit
4.Inner packing(Waterproof plastic bag packing)+Outer packing(Carton packing)
5.Export wooden box packaging for products.
6.Other package as you required


Personal Information

Any questions from you are welcome and will be replied in 24 hours.
Changzhou sunlight Co., Ltd
Contact Person: Janet Wang
Tel.: 86-519-83825998
Fax.: 86-519-83823899
Mobile: 86-15961201381
Website: www.czsunlight.com or www.sunlightmotor.com
Made in China website :czsunlightmotor.en.made-in-china.com
