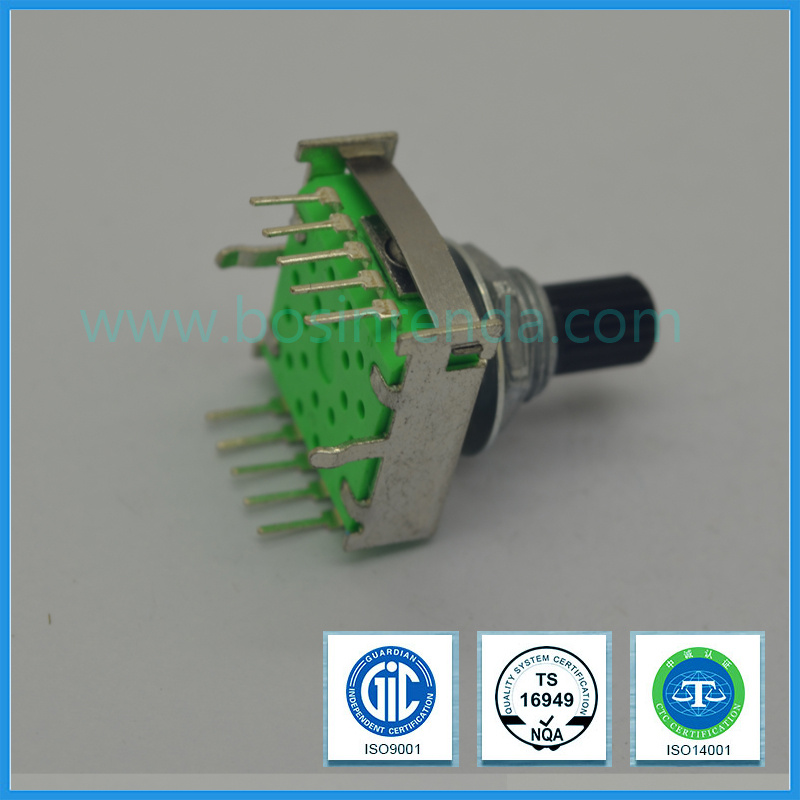

Best Price for 17mm Rotary Route Switch for Amplifier

Name: Best Price for 17mm Rotary Route Switch for Amplifier
Brand: all-electronics-online.com
SKU: 814630075
Availability: InStock
Rating: 4.4 (123 reviews)

Price:	US $ 0.1/Piece
Min Order:	1000/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Switch, rotary switch, reset switch, rotary route switch, rotory switches,position switch

Bosin electronics is a manufacturer specializing in rotary encoders, potentiometers and switches. Our company passed ISO9001, ISO14001, ISO/TS16949.

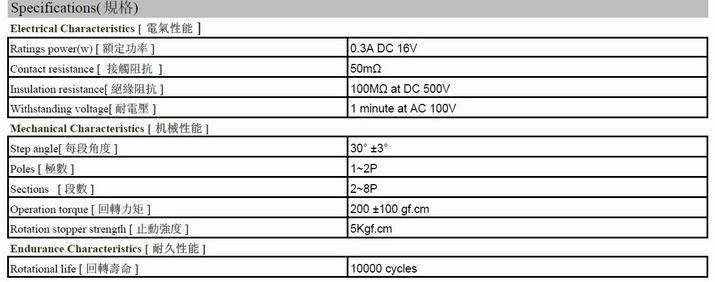

Please check below specification.

1. Mechanical Characteristic for rotary switch

1.1 Changeover angle: 30 +/- 3 degree

1.2 Click torque: 300~700 gf.cm

1.3 Push-pull strength: 8kgf Mix. at 10 sec.

1.4 Shaft wobble: 0.7*L/30mm P-P max.

1.5 Rotation stopper strength: 5.0kgf.cm Min.

2. Electrical Characteristic:

2.1 Rated power: DC 16V 3 Max.

2.2 Number of poles/positions: 1/6,2/6,3/6,4/6.

2.3 Insulation Resistance: 100m ohm Min. at 500V DC

2.4 Terminal contact resistance: 100 ohm Max.

2.5 Voltage proof: 1 minute at AC 500V

3. Endurable Characteristic:

3.1 Operating temp. range: -40 to 85 Celsius degree

3.2 Rotational life: 10,000cycles

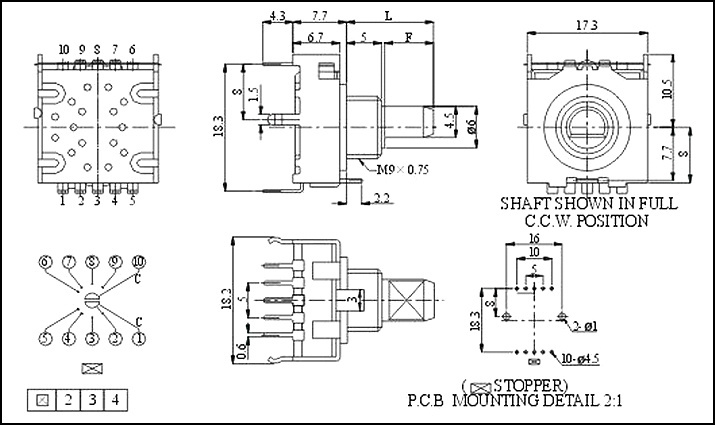

Prod Model:	RS1702
RoHS:	100%
Certificate:	ISO9001, ISO14001, Ts16949
Rotary Number:	Single Button
Usage:	Digital Products
Standard:	Nonstandard
Structure:	Screw Shank
Operation:	Knob
Certification:	CE
Condition:	New

Bosin Electronics Ltd is invested by Bosin holdings which established in 2006.

The copmany specializing in designing and manufacturing potentiometer, encoder, switch and DC motors. Now our company factory area is about 10000 m2, employees more than 600 persons and technicians more than 60 persons. And we all staffs have strived for five years to build up a set of completely production flow including of developing new product, mould manufacture, spare parts or components manufacture, finished product assembly. We build up a good image of " Bosin" in our field and the products already accepted by LG, PHILIPS, SANYO, BBK, Malata, etc. For a long time.

After decade of efforts, the Bosin products have been sent to over 100 countries, including rotary potentiometers, slide potentiometers, trimmer potentiometers, super-thin potentiometers, encoders and rotary switches, widely applied to computer/multimedia peripherals and various industrial fields. All products are RoHS compliant. For further improving the compatibility and making effort to our quality policy of "Keep Improving, Quality Assurance", the Bosin takes most advanced management mechanism and technologies that including computerized jigs and dies design, automatic assembly facilities and so forth. Now, the Bosin has the capability of producing over 1200 different kinds of hardware, 16 series with about 240 models of potentiometer to meet most of the requirement of the potentiometer market.

The Bosin has passed the certificate of ISO 9001-2000, ISO 14001-2004, TS16949, this assures to satisfy our clients with best quality of products and services. Now, the Bosin is devoting all its efforts to become the top of the potentiometer manufacturer in China.
