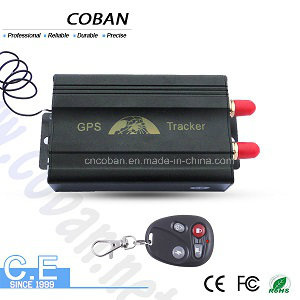

GPS Tracker device/unit/terminal 103GPS:
1. Support Door, ACC, Shock sensor alarm
2. Support car ARM and DISARM
3. Support Silent Mode
4. Support cut off and resume Oil and Power system
5. Support power off alarm
This tracker is a new product based on the GSM / GPRS network and GPS satellite positioning system, which set multiple functions of security, positioning, monitoring surveillance, emergency alarms and tracking in its entirety. It can track and monitor remote target by SMS or internet.
Main function:
1. ACC alarm, Door alarm and Shock sensor alarm at ARM state
2. Power off alarm. When the power be cut off or the voltage is 0V, the tracker will send SMS "power alarm+lat. /long" to the authorized number in 3 minutes interval.
3. Cut off and resume oil or power by sending SMS
4. Set up ARM and DISARM by Cell phone or remote controller
5. Anti-thief for 24 hours a day to protect the vehicle well
6. Emergency for help, SOS panic alarm
7. Support silent mode by SMS or controller
8. Alarms when without GSM network service or in blind area
9. Check the Vehicle State at any time by send SMS command
10. The internal GSM and GPS module can be reset by press reset button or SMS
11. Get the coordinates and Google map link by calling the tracker
12. Auto tracking continuously
13. Sending "address+password" to unit to get absolute street address
14. Support GPS+LBS double positioning ways
15. Set the local GPS time by SMS
16. Low battery alarm
17. Geo-fence
18. Movement alarm
19. Over speed alarm
20.Support dual sim card
21.support central lock relay to lock and unlock the car door
22.support two fuel sensor
Applications:
Used widely for vehicle and other moving objects tracking.
| Content | specifications |
| DIM. | 83*54*26mm |
| Weight | 120g |
| Network | GSM/GPRS |
| Band | 850/900/1800/1900Mhz |
| GSM/GPRS Module | SIM900B |
| GPS Module | SIRF3 chip |
| GPS Sensitivity | -159dBm |
| GPS Accuracy | 5m |
| GPS Start time | Cold status 45s
Warm status 35s
Hot status 1s |
| Voltage of car power system | 12 V -24V |
| Backup battery | Chargeable changeable 3.7V 800mAh Li-ion battery |
| Storage Temp. | -40° C to +85° C |
| Operation Temp. | -20° C to +65° C |
| Humidity | 5%--95% non-condensing |
