Best Quanlity Mc4 Tyco Solar System Connector

Name: Best Quanlity Mc4 Tyco Solar System Connector
Brand: all-electronics-online.com
SKU: 818140985
Availability: InStock
Rating: 5 (114 reviews)

Price:	US $ 0.395/Set
Min Order:	100/Set
Pay Type:	T/T

Contact Supplier

Showroom Product Company Profile

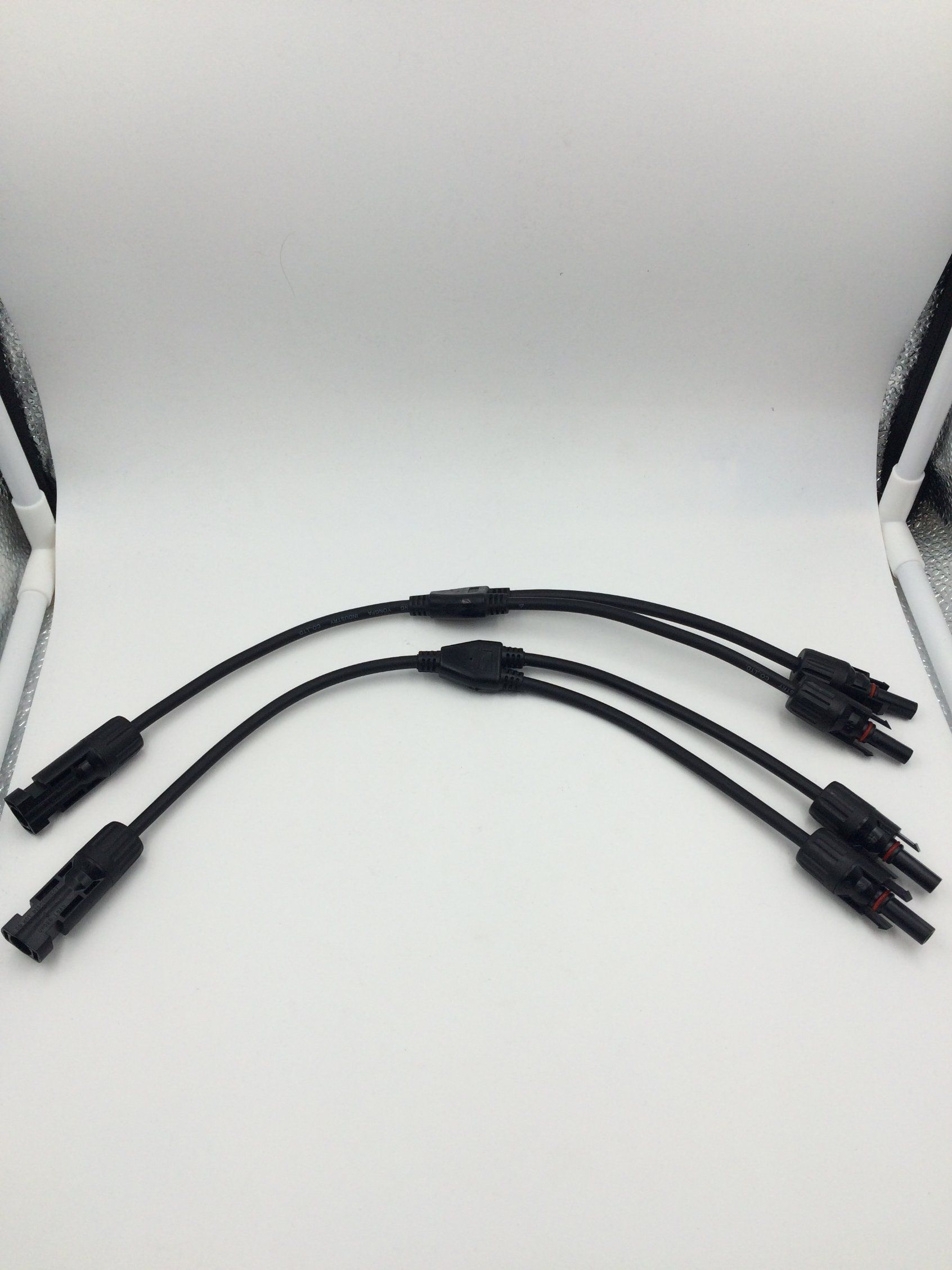

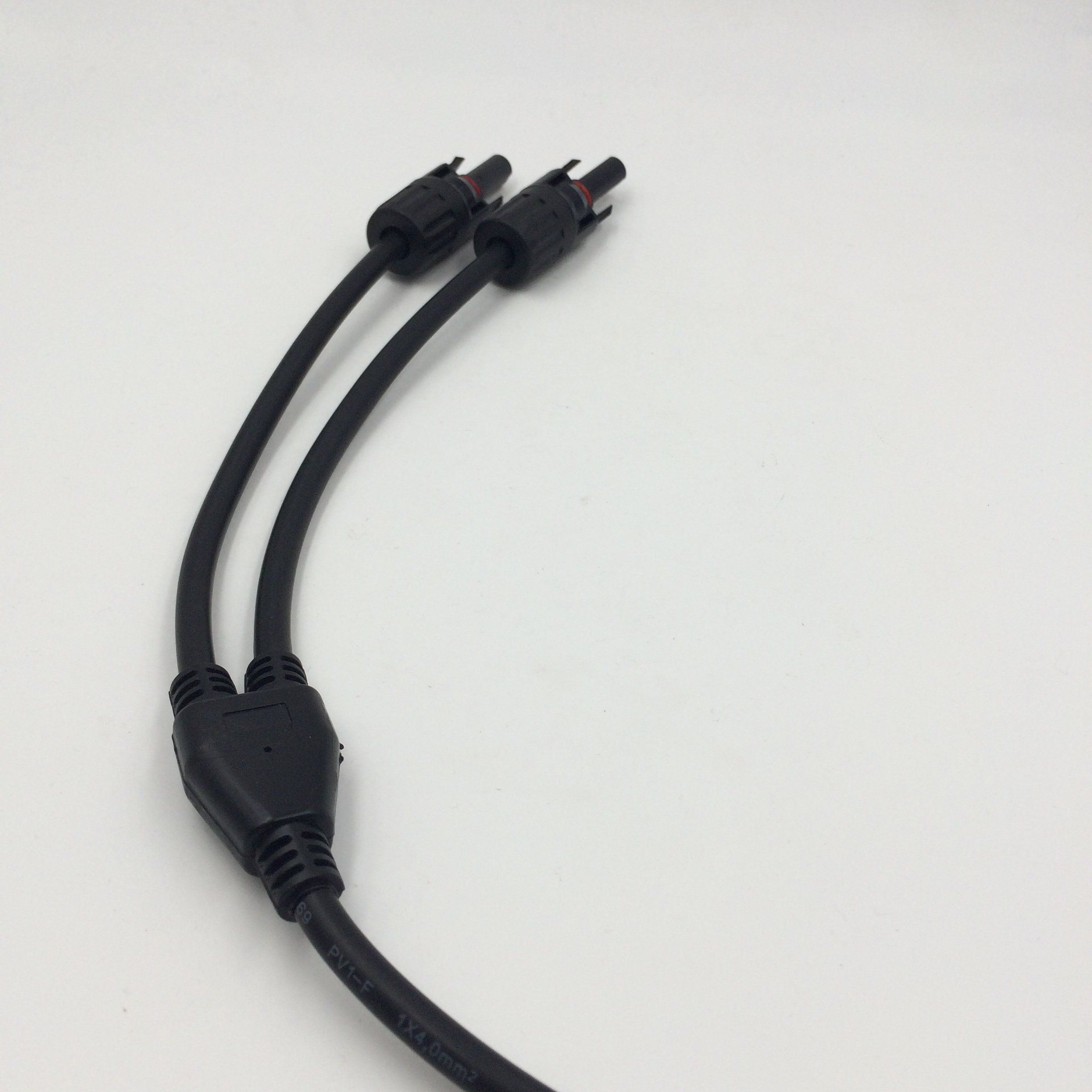

best quanlity Mc4 Tyco Solar System Connector

Solar Connector MC4 male and female connector Technical parameters:

Model No.	Part P/N		Cable sepcial
	Connector	Terminal	Conductor size (mm²)	Cable OD (ΦDmm)
MC4-CMMM-14	MC4-CMMM-H	MC4-CM-T14	AWG 14 (2.5 mm²)	Φ4.5- Φ8.5
MC4-CMMM-12		MC4-CM-T12	AWG 12 (4.0 mm²)
MC4-CMMM-10		MC4-CM-T10	AWG 10 (6.0 mm²)
Model No.	Part P/N		Cable special
	Connector	Terminal	Conductor size (mm²)	Cable OD(mm)
MC4-CFPM-14	MC4-CFPM-H	MC4-CF-T14	AWG 14 (2.5 mm²)	Φ4.5- Φ8.5
MC4-CFPM-12		MC4-CF-T12	AWG 12 (4.0 mm²)
MC4-CFPM-10		MC4-CF-T10	AWG 10 (6.0 mm²)
Rated current			30A(2.5-6mm²)
Rated voltage			1000V DC
Test voltage			6000V(50Hz,1min)
Overvoltage type/pollution degree			CAT III/2
Contact resistance of plug connector			Im Ω
Contact material			Copper, Tin-plated
Insulation material			PPO
Degree of protection			IP2X/IP67
Flame class			UL94-VO
Safety class			II
Suitable cable			OD 4.5-8.5 (2.5-6.0mm²)
Insertion force/withdrawal force			≤50N/≥50N
Connecting system			Crimp connection
Temperature range			-40ºC~+125ºC

Prod Model:	mc4
Color:	Black
Certificate:	Ce
Quanlity:	Waterproof
Parts:	Solar Panel Solar Cable
Metal Parts:	Copper
Shape:	Round
Warranty:	2 Years
Custom Made:	OEM
Factory:	Liushi,Wenzhou,Zhejiang,China
Application:	Power
Gender:	Pair

Wenzhou FITO Automation Technology Co., Ltd is one of the high-tech enterprises in Wenzhou China, where is well known as hometown of electrical equipments, located in Liushi Town, with a very convenient transportation system.

We are specialized in pneumatic components, Pneumatic Cylinders, Pneumatic Fittings, Solenoid Valve, and related Industrial use Pneumatic accessories.

Now we have more than 6 production lines and 2 warehouses for both rawmaterial and finished products. All the items are made by digital machines controled by pre-set data to ensure its accuracy. Each parts will be strictly inspected before packing.

After many years experience and development, our business range now goes into Air Cylinder, Quick Connector, Valve, Filter, Fittings, and related components, all the fittings can be both standard and customized, you can find almost all the parts to fit your machines, our products are sold to customers from all over the world, like US, Europe, Asia, Africa etc.

FITO is dedicated to innovation and creativity, with superior quality, competitive price and good service in the past 10 year, it is enjoying a high reputation among our customers both at home and abroad.

Welcome come to our factory to get the right components for your markets.
