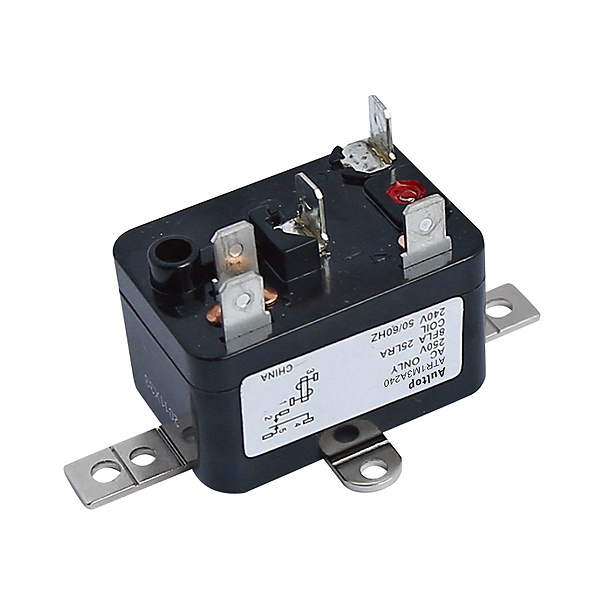

Best Selling Fan Relay A/C Heating 24V 4A Air Conditioners Parts Relay

Name: Best Selling Fan Relay A/C Heating 24V 4A Air Conditioners Parts Relay
Brand: all-electronics-online.com
SKU: 828907515
Availability: InStock
Rating: 4.6 (44 reviews)

Price:	US $ 2-3.5/Piece
Min Order:	500/Piece
Pay Type:	L/C,T/T,D/P

Contact Supplier

Showroom Product Company Profile

High Power/ Fan Relay

About Us
Mingguang Hecheng electrical Co.,LTD , is a master of manufacturing all Kinds of Contactors  (including
DP Contactors,  LC1 series contactors ,  Founded in Mingguang City,China, in 2005,  stepped  into the  HVAC industry  as  a reliable source .
Our  strongest domestic suppliers and our vast   experience  with  global  trading, allows  us to  bring  the
most   innovative  and highest  quality  products available to our customers.

Applications:
Air conditioners
Heat pumps
Water heaters
Other locations where a local disconnect is required

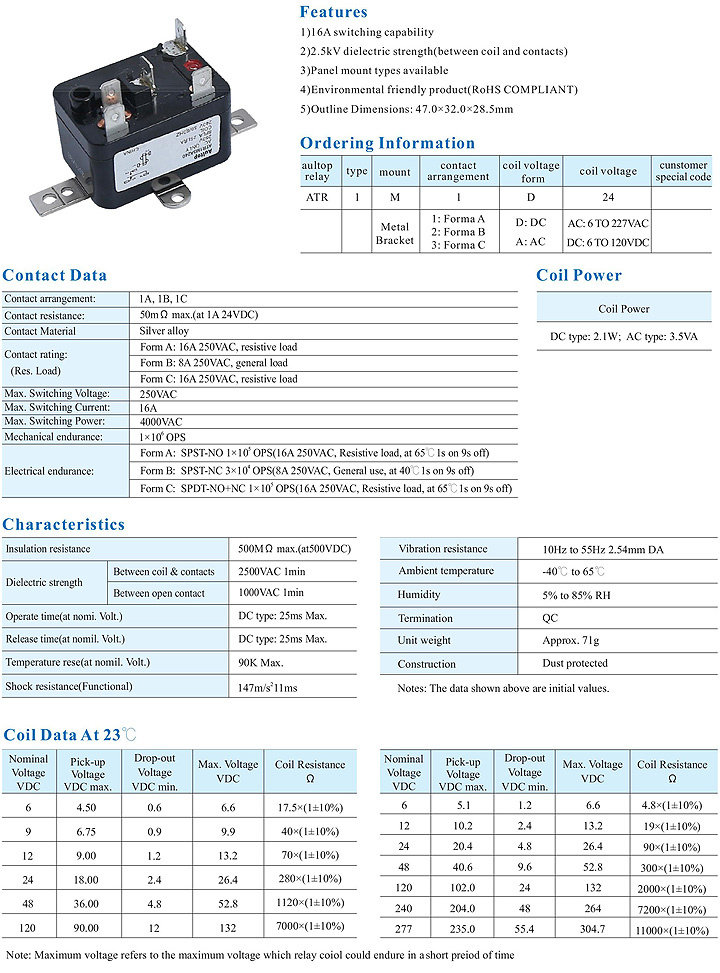

Specifications:

Amps Resistive	16
Coil Voltage	24
FLA/LRA at 250 Volts	8/25
Switch Type	SPST-NO

Replaces:

White-Rodgers	90-290
RBM	90-290Q
Mars	90290

Features:
1/4" quick connect terminals
Used for switching solenoids, fan motors, and other applications.

FAQ
     Q1: Can I get a sample for testing?
           A: Yes, we could offer free sample, but shipping cost should be paid at customers' side .
       Q2: Can I print my logo on the products?
           A: Yes, OEM and ODM are available.
         Q3: How can I get the after-service?
          A: If quality problem happen we promise re-send the item .
       Q4: Do you have inspection procedures for products?
          A: Our products100% self-inspection and testing before packing.
         Q6: How about delivery time of the order?
          A: 15-20 days after getting deposit.
         Q7: How about payment terms?
          A:  30% deposit, the rest payment balance against B/L copy.

Prod Model:	ATR1M3A
Color:	Black
Other Services:	ODM OEM
Delivery Date:	35 Days After Deposit

Mingguang Hecheng Electrical Co., Ltd., has been working on developing high quality Definite Purpose Contactor since estalished in 2004.We have experience in supplying to Hartland Controls, ABB Controls, Zettler Controls, Fasco, Packard Inc & Supco directly and indirectly.

From the business with the companies mentioned and the help from them, we've established a good process control system including Supplier Evaluation and Choice, Coiling Process& Inspection, General Assembly and Inspection, Packing and Delivery.With support from them and our rich Supply Chain Management (SCM) experiences, we are operating our business successfully.

We take care of all vital aspects so that our customers can focus on their customers.Our experienced engineers/inspectors are involved in all the important steps for quality control during production so that all our exported goods are perfectly in compliance to our customers' requirements.And all the members in our supply chains are selected carefully under our Supplier Evaluation Program established strictly according to ISO9001 system.

If you are interested, please try to contact us and take a try.We shall make you confident that this is the right company you would like to work with.
