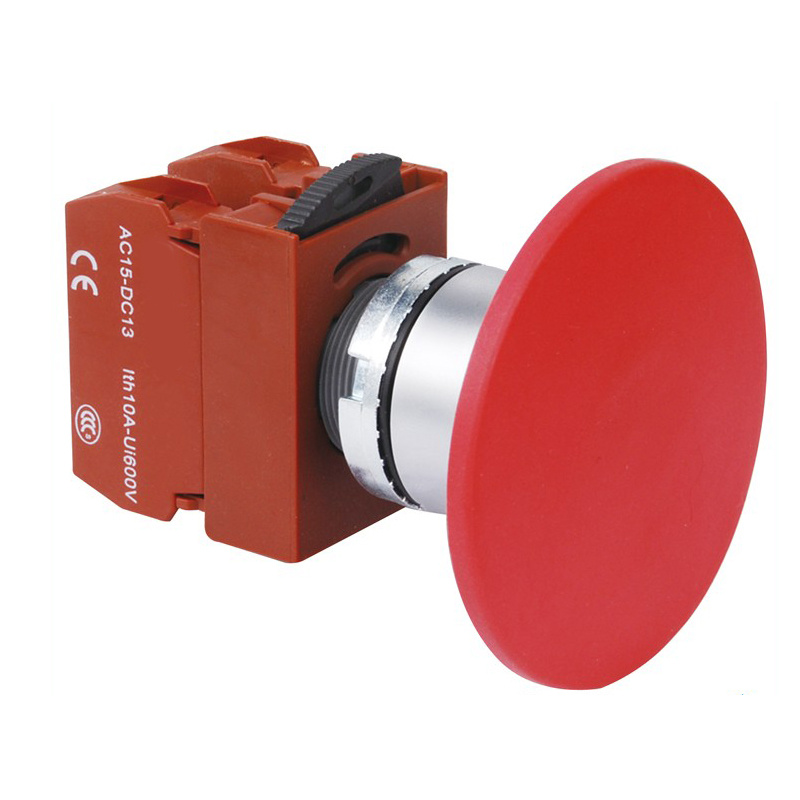

Big Button Waterproof Push Button Switch C2pnm6

Name: Big Button Waterproof Push Button Switch C2pnm6
Brand: all-electronics-online.com
SKU: 835041465
Availability: InStock
Rating: 4.6 (76 reviews)

Price:	US $ 1/Piece
Min Order:	1/Piece
Pay Type:	T/T,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	C2PNM6
Voltage:	250V
Life:	500,000
Type:	Composite
Usage:	Control Button
Kind:	Single-pole on-off Switch
Brand:	Deson

Product Description

CCC, CE Approval
Various types, Widely use
Mounting hole: 22mm, 30mm
Long service life

Standard	3C , CE Approved Standard
Electrical Capacitor	Max Insulation voltage 600VAC , Max thermal Current 10A
Operation	AC15 type : 250VAC/16A , DC13 type : 250VDC/0.6A
Contact Resistance	Max 500M
Insulation Strength	250VAC 50HZ , 1min
Insulation Resistance	500VDC Below , 100M above
Vibration Resistance	10g @ 40-500HZ
Life	Lamp 1000hours , LED 100000Hours
Mechanical Life	Pushbutton Switch : momentary >3.000,000 , lasting > 5,000,000 Selector Switch : Momentary > 3,000,000 , lasting > 5,000,000 Key Switch : Mementary > 3,000,000 , lasting > 5,000,000 Emergency Switch : > 3,000,000
Electrical Life	Contact Block AC15 250VAC/6A > 1,000,000 DC13 250VAC/0.6A > 1,000,000
Storange Temperature	-20-80 with no icing
Operation Temperature	-10-70 with no icing

Our company supplies different kinds of products. High quality and favorable price. We're pleased to get your Inquiry and we will come back to as soon as possible. We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective. To perfect our service, we provide the products with good quality at the reasonable price.
