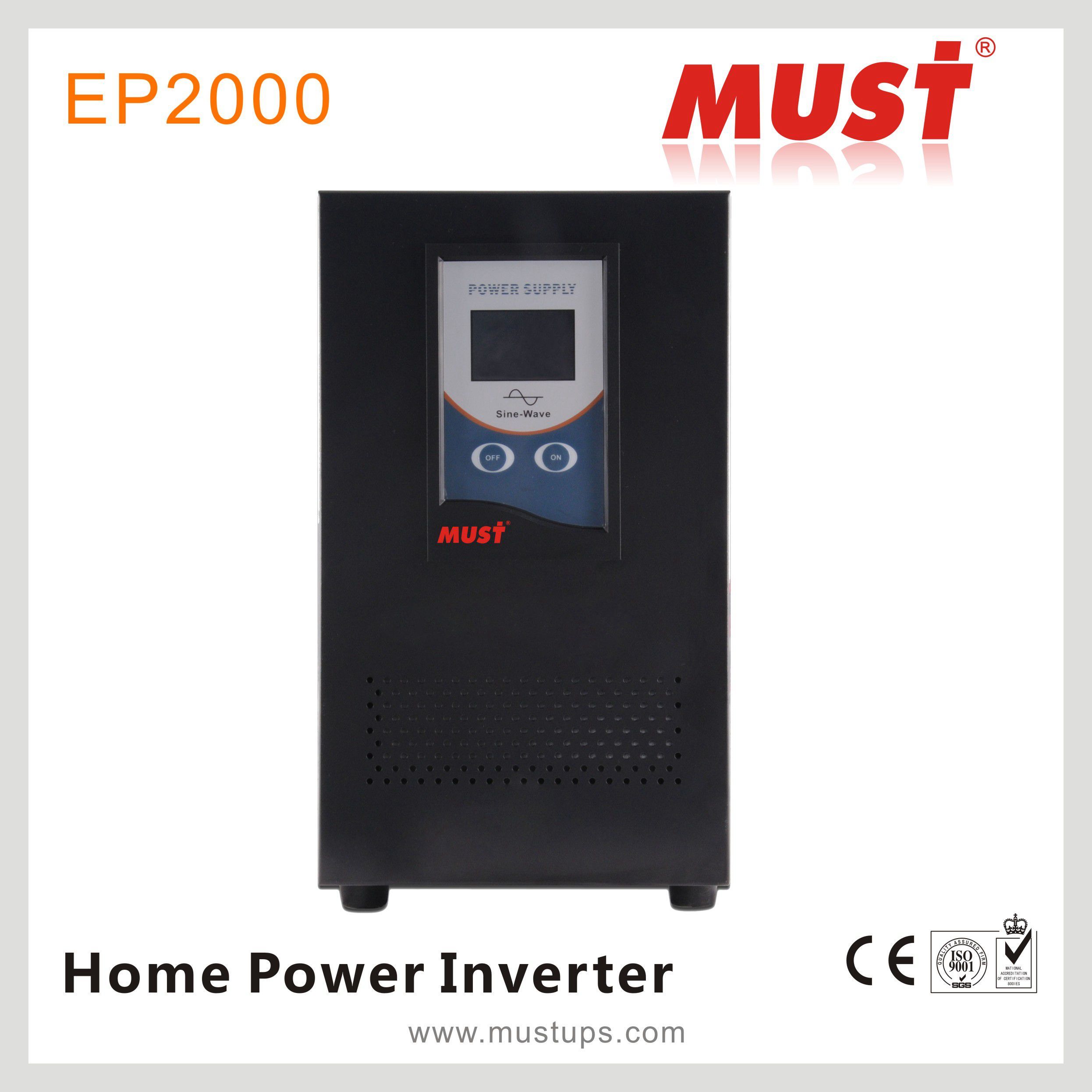

Big Capacity 1.5KW-10KW Pure Sine Wave Low Frequency Power Inverter
--------Main Features of this model EP2000:
* Pure sine-wave output;
* 25A battery charge current;
* Superior performance from CPU control technology;
* Genarator compatible
* Fast Action AC Synchronized Transfer Switch
* Wide range of input voltage, accurate output, AVR function;
* Inner-Equipped protection for over-load, short-circuit, over-voltage, low-voltage, over- heating, etc.
* Easy to check with inverter condition with concise LCD indication.
--------Full specifications of EP2000:
| MODEL | 600T | 1000T | 1500T | 2000T | 3000T | 4000T | 5000T | 6000T | 7000T | 10000T |
|---|
| Default Battery System Voltage | 12VDC/24VDC | 24VDC | 48VDC | 96VDC |
| INVERTER OUTPUT | Reted Power | 600W | 1000W | 1500W | 2000W | 3000W | 4000W | 5000W | 6000W | 7000W | 10000W |
| Waveform | Pure sine wave |
| Nominal Output Voltage RMS | 100V/110V/120VAC 220V/230V/240VAC(±10% RMS) | 220V/230V/240VAC(±10% RMS) |
| Output Frequency | 5OHz/60Hz±0.3 Hz |
| Inverter Efficiency(Peak) | >80% |
| Line Mode Efficiency | >95% |
| Power Factor | 1.0 |
| Typical Transfer Time | Typical 2~6ms ,10ms max |
| AC INPUT | Voltage | 100V/110V/120VAC 220V/230V/240VAC | 220V/230V/240VAC |
| Selectable Voltage Range | 96~132VAC 145~275VAC(For Personal Computers) | 145~275VAC(For Personal Computers) |
| Frequency Range | 50Hz/60Hz (Auto sensing 44~68Hz) |
| BATTERY | Nominal Input Voltage | 12VDC/24VDC | 24VDC | 48VDC | 96VDC |
| Minimum Start Voltage | 10.5VDC /21.0VDC/42VDC/84VDC |
| Low Battery Alarm | 10.5±0.3V /21VDC±0.6V/42VDC±1.2V/84VDC±2.4V |
| Low Battery Cutoff | 10.0±0.3V/20VDC±0.6V/40VDC±1.2V/80VDC±2.4V |
| High Voltage Alarm | 15.5±0.3V/31VDC±0.6V/62VDC±1.2V/124VDC±2.4V |
| High Battery Voltage Recover | 15.0±0.3V/30VDC±0.6V/60VDC±1.2V/120VDC±2.4V |
| CHARGER | Charger Voltage | 14V±0.2V/28V±0.4V/56V±0.8V/112V±1.2V |
| Overcharge Protection S.D. | 15.5VDC/31VDC/62VDC/124VDC |
| Maximum Charge Current | 15A~25A |
| BYPASS & PROTECTION | Nominal Input Frequency | 50Hz or 60Hz |
| Overload Protection (SMPS Load) | IPS automatically shutdown if overload exceeds 120% ofnormal value for 30 seconds IPS automatically resume work if overload comes back to rated load |
| Output Short Circuit Protection | FUSE | Circuit breaker |
| Bypass Breaker Rating | 10A | 15A | 30A | 50A |
| Max Bypass Current | 10A | 15A | 30A | 50A |
| MECHANICAL SPECIFICATIONS | Dimensions (W*H*D) | 140*182*380 | 255*385*470 | 260*750*570 |
| Net Weight (kg) | 11 | 12 | 24.2 | 27.4 | 29.5 | 33 | 35 | 41 | 47 | 53 |
| Shipping Dimensions(W*H*D) | 215*285*465 | 325*473*595 | 480*1030*720 |
| Shipping Weight (kg) | 12 | 13.2 | 26.9 | 30.1 | 33.2 | 35.7 | 49 | 55 | 61 | 67 |
| OTHER | Operation Temperature Range | 0°C to 40°C |
| Audible Noise | 60dB MAX |
| Display | LED or LCD Optional |
| Standard Warranty | 1 year |
