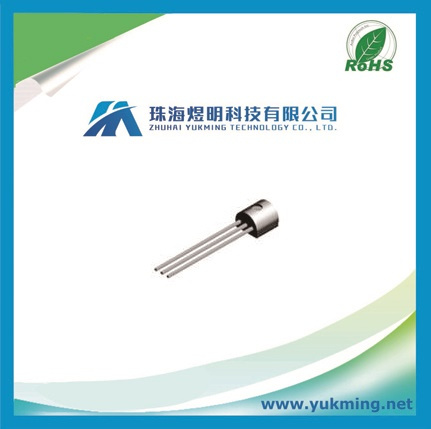

Bjt NPN Transistor General Purpose 2n3904tfr Electronic Component

Name: Bjt NPN Transistor General Purpose 2n3904tfr Electronic Component
Brand: all-electronics-online.com
SKU: 800824605
Availability: InStock
Rating: 4.5 (30 reviews)

Price:	US $ 0.0196/Piece
Min Order:	1000/Piece
Pay Type:	L/C,T/T,D/P

Contact Supplier

Showroom Product Company Profile

BJT NPN Transistor General Purpose

MANUFACTURER
Fairchild Semiconductor

PRODUCT CATEGORY
GP BJT

DESCRIPTION
Trans GP BJT NPN 40V 0.2A 3-Pin TO-92 T/R

The three terminals of this NPN 2N3904TFR GP BJT from Fairchild Semiconductor give it the ability to be used as either an electronic switch or amplifier. This bipolar junction transistor's maximum emitter base voltage is 6 V. Its maximum power dissipation is 625 mW. In order to guarantee safe delivery and allow for quick mounting of this component after delivery, it will be enclosed in tape and reel packaging during shipment. This bipolar junction transistor has a minimum operating temperature of -55 °C and a maximum of 150 °C. It has a maximum collector emitter voltage of 40 V and a maximum emitter base voltage of 6 V.

Specifications
EU RoHS Compliant
Type NPN
Number of Elements per Chip 1
Maximum Collector Base Voltage (V) 60
Maximum Emitter Base Voltage (V) 6
Maximum Collector Emitter Voltage (V) 40
Maximum DC Collector Current (A) 0.2
Maximum Power Dissipation (mW) 625
Minimum DC Current Gain [email protected]@1V|70@1mA@1V|100@10mA@1V|60@50mA@1V|30@100mA@1V
Maximum Transition Frequency (MHz) 300(Min)
Product Category Bipolar Small Signal
Minimum Operating Temperature (°C) -55
Maximum Operating Temperature (°C) 150
Packaging Tape and Reel
Mounting Through Hole
Package Height (mm) 5.33(Max)
Package Length (mm) 5.2(Max)
Package Width (mm) 4.19(Max)
PCB changed 3
Standard Package Name TO-92
Supplier Package TO-92
Pin Count 3
Lead Shape Formed

Prod Model:	2N3904TFR
Number Of Elements Per Chip:	1
Maximum Collector Base Voltage (V):	60
Type:	NPN
Maximum Emitter Base Voltage (V):	6
Maximum Collector Emitter Voltage (V):	40
Maximum DC Collector Current (a):	0.2
Maximum Power Dissipation (MW):	625
Mounting:	Through Hole
Operation Temperature Range:	-55-150
Maximum Transition Frequency (MHz):	300(Min)
