Blue Lxw 32-01mc Micro Switch

Name: Blue Lxw 32-01mc Micro Switch
Brand: all-electronics-online.com
SKU: 775018515
Availability: InStock
Rating: 4.8 (94 reviews)

Price:	US $ 7.8-8/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,Paypal,Western Union

Contact Supplier

Showroom Product Company Profile

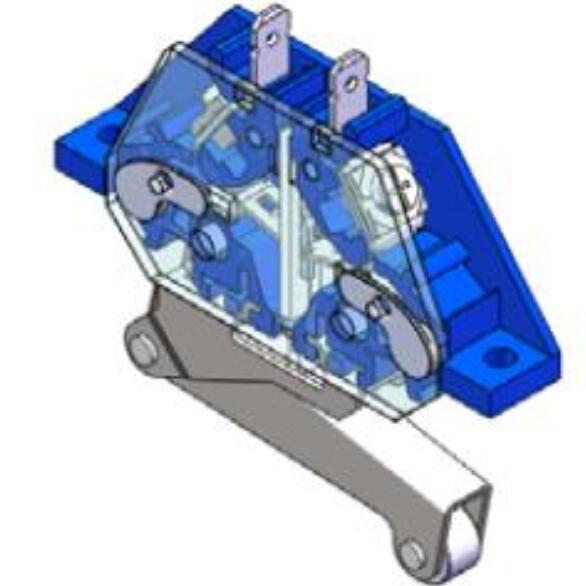

LXW 32-01MC Micro Switch

Features & Application

1	Quick & Reliable action,high precision,long life,nice appearance,which can replace the similar imported products.
2	Contact materials: silver alloy.
3	Applied to the control circuit or auxiliary circuit with the rated working voltage:AC 380V,DC250V, more technical characteristics will be shown as in the table below.
4	This product is widely used in the circuit of machinery, electrical etc, for controlling the electromagnet or the inductive load.

Code Instruction

LX:Category code(LX:master limit switch)
W:Characteristic code(W:microswitch)
32:Design No
01:With a group of normally close contacts
M:Magnetic quenching
C:Long roller

Technical Characteristics

Utilization Category	AC-12	DC-12
Rated insulation voltage	AC 400V
Ith conventional thermal current	10A
Ue rated working voltage	AC 250-380V	DC 220-250V	DC 125V
Ie rated working current	10A	2A(t=20ms)	6A
Contact resistance	≤30mΩ
Power frequency withstand voltage	Between current-carrying components and surface easy to touch		AC1890V±3% 45---65Hz 5s
Mechanical life	Between current-carrying metal parts and the ground		AC1890V±3% 45---65Hz 5s
Electrical life	300,000 times operations
Ambient operating temperature	10,000 times operations

Approved standards

	CCC
LXW32-01MC	AC-12 250-380V 10A
LXW32-01MC	DC-12 220-250V 2A 125V 6A

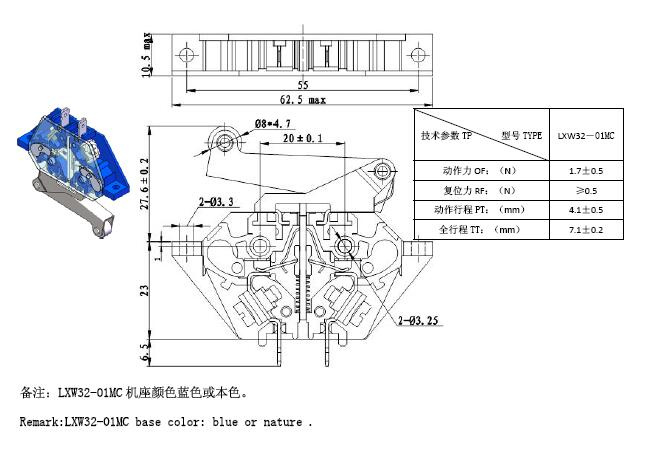

Prod Model:	LXW32-01MC-559
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Of(N):	1.65-1.75
RF(N):	Greater Than or Equal to 0.5
PT(mm):	4.05-4.15
Tt(mm):	7.08-7.12
Ambinent Operating Temperature:	-25-85 Degree Centigrade
Pressing Type:	Lever Roller
Protection:	Explosion-Proof
Size:	Small-Sized
Environment:	﹤250℃
Breaking Capacity:	DC
Breaking Form:	Single Type
Application:	Hv Cabinet
