Brass Copper Band Nozzle Heater Elment for Injection Machine

Name: Brass Copper Band Nozzle Heater Elment for Injection Machine
Brand: all-electronics-online.com
SKU: 689068431
Availability: InStock
Rating: 4.6 (138 reviews)

Price:	Negotiable/Piece
Min Order:	1/Piece
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

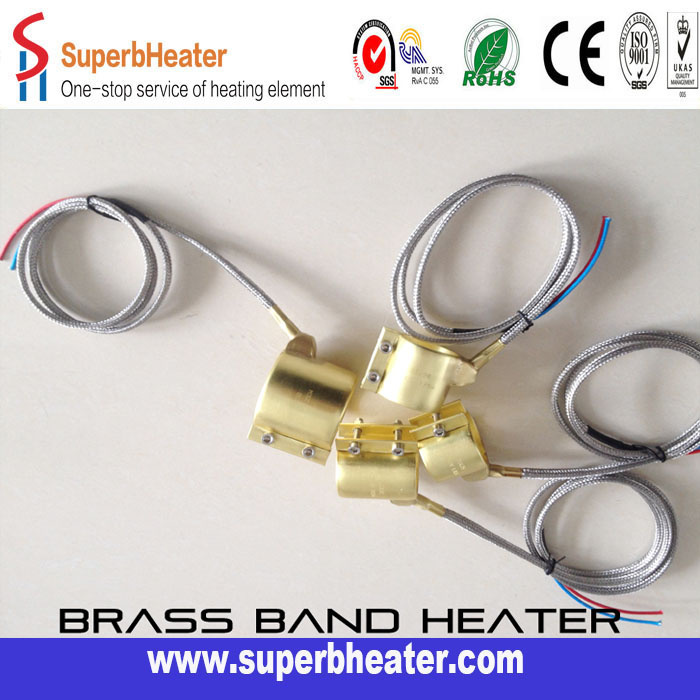

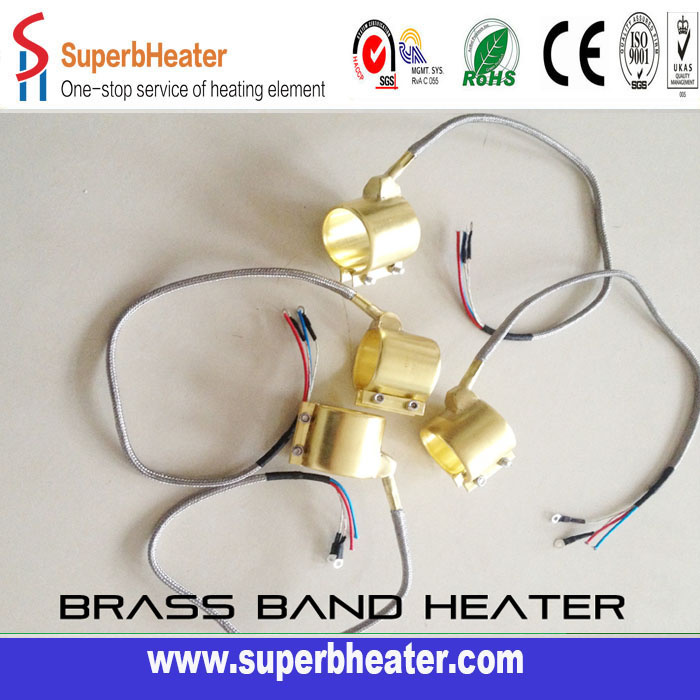

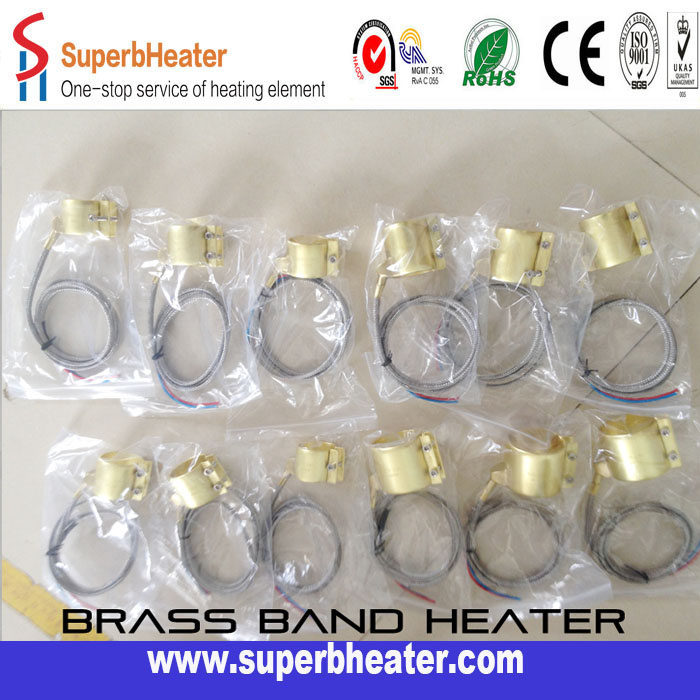

Brass sealed nozzle heater
Brass sealed nozzle heaters are completely against external agents such as melted plastics. They are very resistant to wearing and shocks. High watt-density per square centimeter allows a fast and safe reaching of required working temperature.
Brass sealed nozzle heaters are submitted to extremely high pressure that ensure high insulation, excellent thermal exchange, lack of internal voids, perfectly smooth contact area for an optimum and uniform heat transfer to every part of the nozzle.

Applications
1.	Dies
2.	Cylinders and drums
3.	Holding Tanks
4.	Plastic film extruders
5.	Injection and blow Moulding machine
6.	All Plastic & Rubber Processing Machinery.

Features
1.	Sealed band heater in brass, with folded ends
2.	Band heater connection, waterproof technology
3.	Electric insulation by mica plate
4.	Connection: nickel core, fiberglass insulated + earth wire; protected by a galvanized steel braid
5.	Max. watt density : 5 W/cm² (Wattage tolerance: +5% -10%)
6.	Diameter: 25 to 150mm
7.	Height: 25 to 70mm
8.	Max. operating temperature over the surface of the heater: 340ºC, depending on working conditions.
9.	Brass sealed nozzle heaters can be supplied with a built-in J-type thermocouple.

How to order:

The dia and height of the heater
The power and voltage of the heater

SIZE(MM)	WATT(W)	SIZE	WATT	SIZE	WATT	SIZE	WATT
Ø25×25	120	Ø32×25	115	Ø38×25	140	Ø45×25	160
Ø25×30	120	Ø32×30	140	Ø38×30	160	Ø45×30	185
Ø25×32	120	Ø32×32	150	Ø38×32	170	Ø45×32	200
Ø25×35	130	Ø32×35	160	Ø38×35	190	Ø45×35	225
Ø25×38	140	Ø32×38	175	Ø38×38	200	Ø45×38	240
Ø25×40	150	Ø32×40	180	Ø38×40	225	Ø45×40	250
Ø25×45	165	Ø32×45	200	Ø38×45	270	Ø45×45	275
Ø25×50	180	Ø32×50	230	Ø38×50	275	Ø45×50	325
Ø30×25	120	Ø35×25	130	Ø40×25	140	Ø50×25	180
Ø30×30	130	Ø35×30	150	Ø40×30	175	Ø50×30	220
Ø30×32	140	Ø35×32	160	Ø40×32	180	Ø50×32	235
Ø30×35	150	Ø35×35	175	Ø40×35	200	Ø50×35	250
Ø30×38	160	Ø35×38	190	Ø40×38	220	Ø50×38	280
Ø30×40	175	Ø35×40	200	Ø40×40	230	Ø50×40	300
Ø30×45	200	Ø35×45	225	Ø40×45	250	Ø50×45	325
Ø30×50	220	Ø35×50	250	Ø40×50	280	Ø50×50	370

Brass nozzle band heater mainly used for extrusion,casting and down-stroke machines.The temperature can reach up to 500ºC.The maximum surface loading rate is 8 w/ cm2.it has many advantages include fast speed of heating , high rate of heat utilization ,excellent energy saving(energy consumption is reduced by 30%),high resistance of high insulation rate.It is one of the most suitable:electric heaters for plastic extrusion and injection machines,plastic hollow and blowing machines and chemical fibre moulding machines.

Shenzhen superb heater technology Co., Ltd, Founded in 1985, Start is a state run Magnesium Oxide factory, After privatization reform To become a professional to provide all kinds of electric heating products of the comprehensive private joint-stock companies, After years of development company now grown to have include: ChaoHu heating material fitting, JiuDing machinery and spare parts, LiLin cartridge heaters, chaohu band coiling heaters, JXC Industrial heaters five plants, more than 200 employees, assets of more than $ 5 million, Products include various types of industrial heater, cartridge heater, hot runner, thermocouples, band heater and a variety of heater materials and heater equipment to meet customers one-stop shopping for all kinds of heating element, heating materials and heating equipment needs.

Over the years we are committed to technology and product quality improvement, many products similar products meet international quality, in China in the lead, swaged-in leads cartridge heater and diameter less 4mm cartridge heater as China's first single, cost-effective products to give our customers highly recognized, it has been to establish and maintain long-term cooperative relations with more than 700 customers in over 40 countries.

We will insist on our stable style to establish good image in both customers and our partners. We have been insisting on the "REDUCING THE COST AND GIVING ADVANGTAGE TO CUSTOMERS " To provide customers with better products and services, and grow with customers

After long-term accumulation, we have set up agents and partners in India, Dubai, USA, Russia, Brazil, Argentina, Thailand, Korea and other countries to provide convenient and quick service
