Break Switch Fuse Switch Disconnector

Name: Break Switch Fuse Switch Disconnector
Brand: all-electronics-online.com
SKU: 808170425
Availability: InStock
Rating: 4.3 (71 reviews)

Price:	US $ 2.5-12/Piece
Min Order:	50/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Product Description
1.Break Switch fuse switch disconnector
HR17 series fuse type load isolating switch can be operated with load and is a pplicable to ratedcurrent100A~1600A,and has three types: one-gang.two-gang a nd three-g ang.It can be i nstalled both tobus bar and solid plate. And supplies with upper en d inpu t, lower end input and output structure, lead indevice with cutting point and arc extinguishing equipment. Furthermore, switch and detector switch arebuilt inside. It can match fuse detector and also can be used as knife switch.

2.Technical Description
A. Voltage rating: 690V
B. Current rating: 630A
C. Frequency: 50Hz
D. Temperature range:-5°C to +40°C
E. Height above sea level:≤2000m
F. Humidity: no exceed 50% while temperature is +40°C
no exceed 90% while month average temperature no exceed 25 °C

3.Sepcification

Switch Rating Heat Current (A)	Number of Poles	AssortedFuse	Rated Current (A)
160	3, 4	TL00	4, 6, 10, 16, 20, 25, 32, 35, 40, 50, 63, 80, 100, 125, 160
250		TL1	80, 100, 125, 160, 200, 224, 250
400		TL2	125, 160, 200, 224, 250, 300, 315, 355, 400
630		TL3	315, 335, 400, 425, 500, 630

FAQ:
Q1:Are you a trading company or manufacturer?
We are professional manufacturer for distribution board and meter socket . also we supply of different electrical and electronic items
Q2: why will you choice us :
more than 10years of professional teams will give you good quality products ,good service ,and reasonable price
Q3:Can we have our logo or company name to be printed on your products or the package?
We offer OEM , ODM . our designer can make special design for you .
Q4: Is the MOQ fixed?
The MOQ is flexible and we accept small order as trial order.
Q5:Can I have a visit to you before the order?
you are welcome to visit our company ..
our company is only one hour by Air from shanghai

Dear Customers,

If you have any question , please feel free to contact with me by below Contact information :

GUANGTAI ELECTRICAL CO LTD
ARUS ELECTRICAL LIMITED (Sister Company)
Ms. Angel Huang
www.gtelec.cn

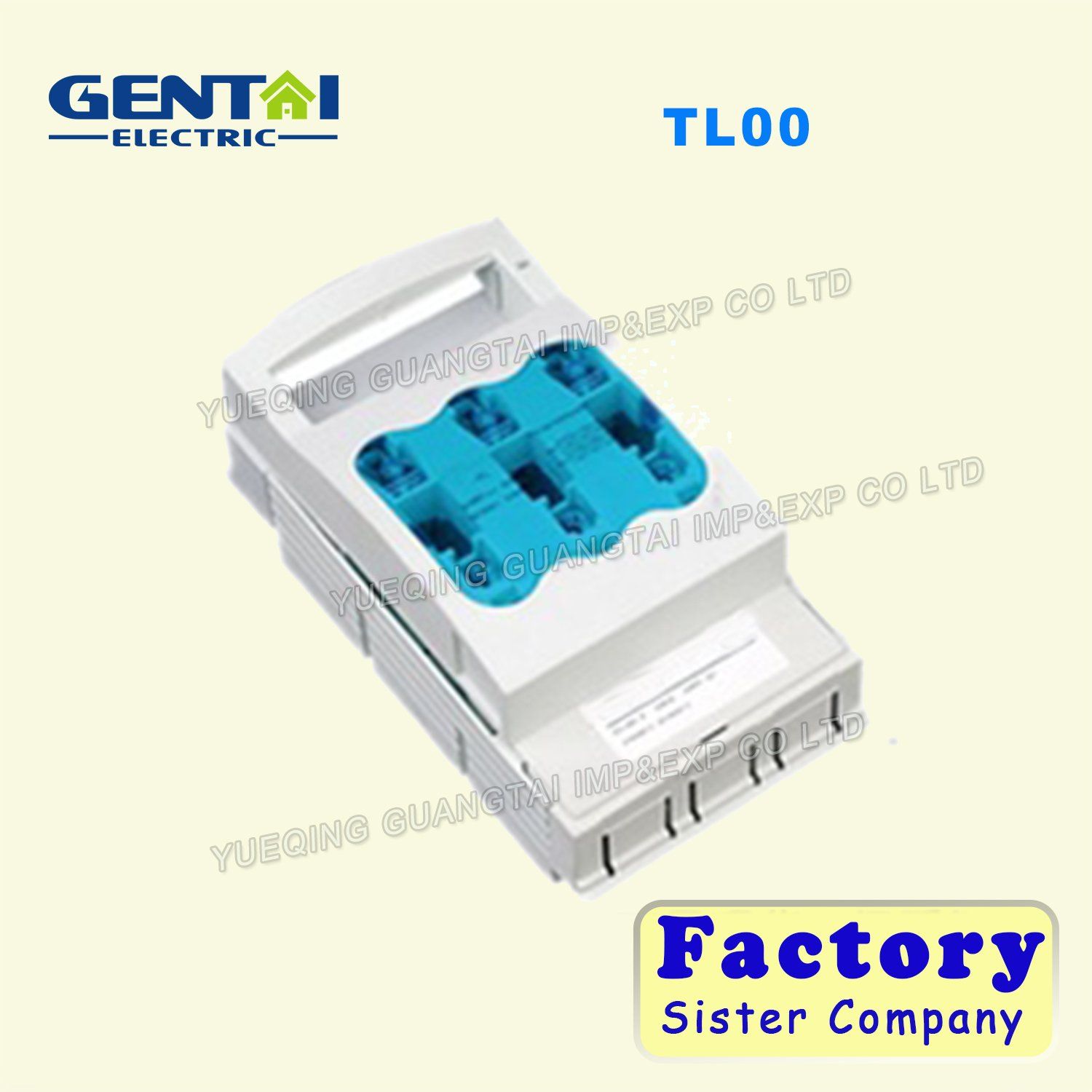

Prod Model:	TL00
Current:	160A-630A
Number Of Pole:	3p,4p
Series:	Single-Stage
Switching Mode:	Single Throw-in
Breaking Capacity:	High
Type:	Resettable Fuse
Usaga:	Low Voltage
