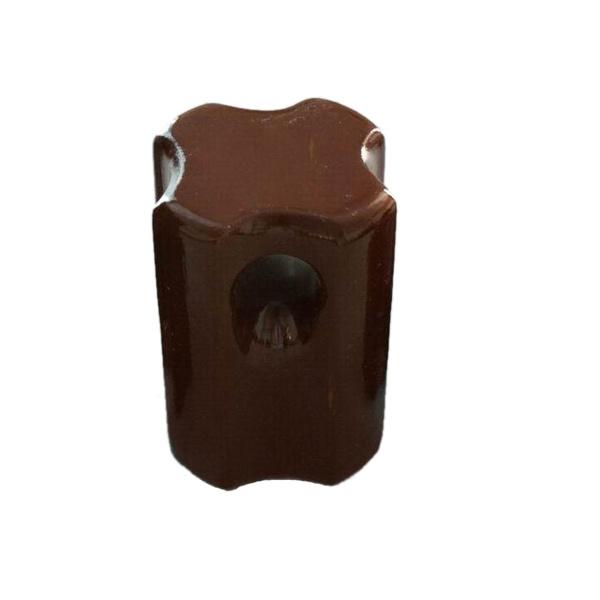

Brown Insolator Porcelain Stay / Guy Strain Insulator

Name: Brown Insolator Porcelain Stay / Guy Strain Insulator
Brand: all-electronics-online.com
SKU: 837869755
Availability: InStock
Rating: 4.4 (135 reviews)

Price:	US $ 1/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	54, 1, 2, 3, 4, 5, 6
Application:	Low-voltage
Material:	Porcelain
Structure:	Strain Insulator
Type:	A Type Insulator
Brand:	Conic

Product Description

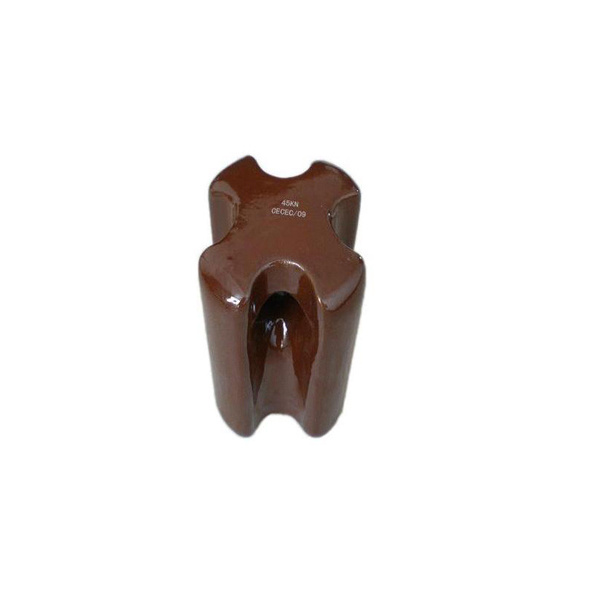

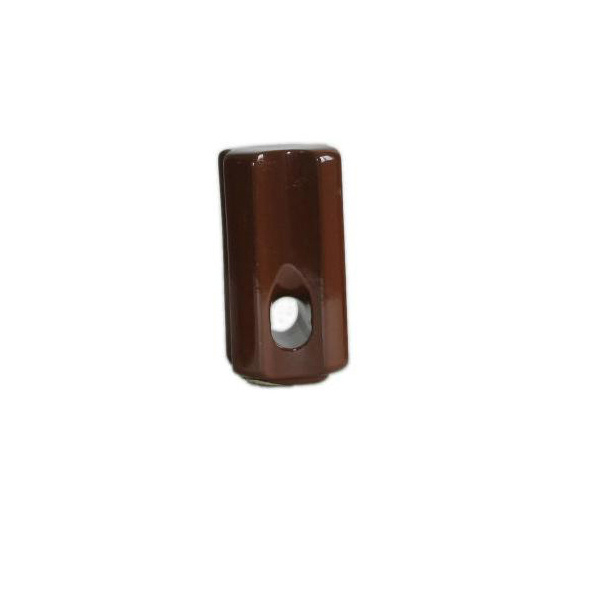

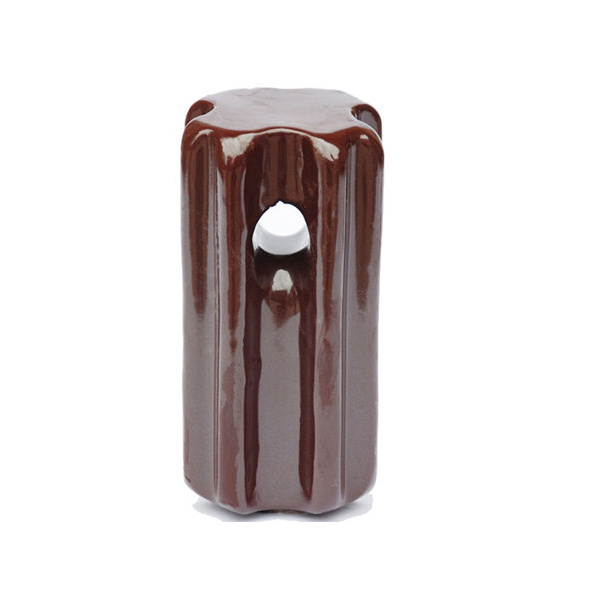

12kv ceramic stay insulator 54-1

specifications
1. original insulator producer
2. superior properties of low and medium temperature resistance;
3. strong aging resistance;
4. nice appearance & long service time.

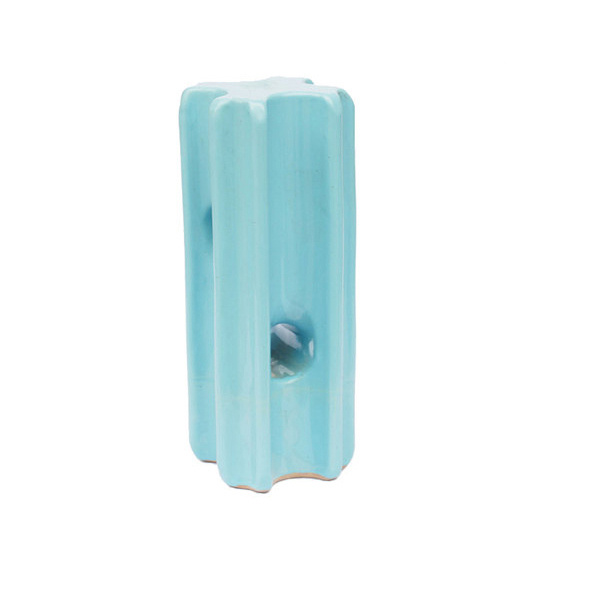

5. comman glaze and semi-conductor glaze, color brown and gray both available.
6. free sample, professional porcelain insulator supplier.

product description
porcelain spool insulator details and parameters

type		gy1	gy2	gy3	gy4	54-1	54-2	54-3	54-4
creepage distance mm						41	48	57	76
main dimension (mm)	h	90	146	216	280	89	108	140	171
	h	48	73	89	89	44	57	79	67
	h1	60	99	133	165	64	76	103	114
	d	68	73	115	115	64	73	86	89
	d	10	44	67	67	44	54	60	60
	d1	16	22	38	38	16	22	25	25
mechanical failing load kn		10	15	20	30	44	53	89	89
power frequency flashover voltage	dry/kv	27	71	222	222	25	30	35	40
power frequency flashover voltage	wet/kv					12	15	18	23
apply standard		as				ansi

our factory

we are a combination of trade and manufacturer that professional in insulators . our manufacturer has modern techniques, with advance semiautomatic production lines. main products have: suspension disc insulators, pin insulators, spool insulator, stay & starain insulators, line post insulator, shackle insulators, composite insulators and glasses insulators etc..

CONIC TOOLS focus on making professional quality hand tools, related hardware products and some electric fittings. CONIC TOOLS products are all strictly controlled at every step during designing, producing, packing and quality controlling process. CONIC TOOLS tools believe that the quality tools refer to the usability, efficiency and performance. Different from the OEM market, the advantages of CONIC TOOLS tools are: Affordable prices, Reliable quality, Ready stocks, Rapid delivery, without restrictive MOQ etc.

Product ranges - We provide full range of hand tools, products including the holding tools, mechanic tools, fastening tools, striking tools, cutting tools, measuring tools, painting tools, PPE items, Insulated tools, porcelain insulator, electirc clamp etc.

Quality control - Our well equipped testing center has the torque life tester, impact tester, hardness tester, drawing tester, material tester, high voltage tester etc., which make sure the quality control process and meet the special QC requirement from the customers.

CONIC TOOLS supplies different kinds of products. High quality and favorable price. We're pleased to get your Inquiry and we will come back to as soon as possible. We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective. To perfect our service, we provide the products with good quality at the reasonable price. Expecting to cooperate with you! ! !
