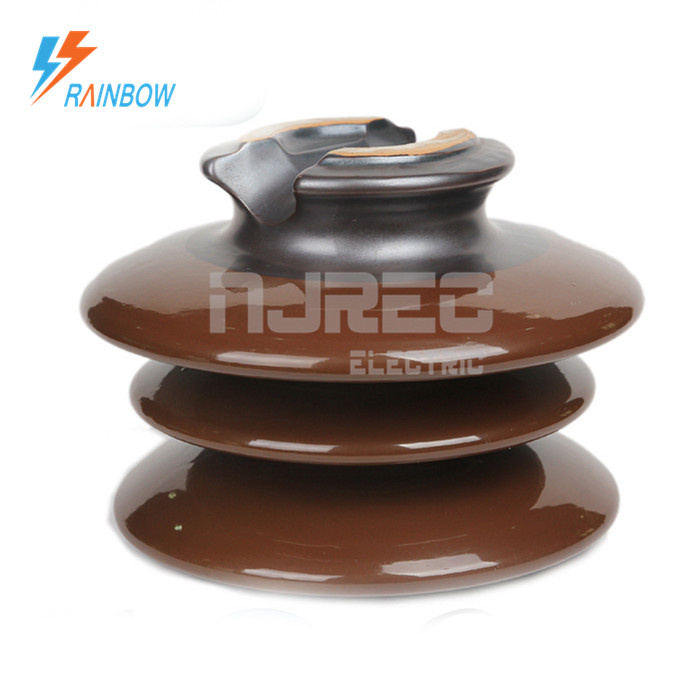

BS P-22-Y Porcelain Pin Type Insulator
| Price: |
US $ 2-6/Piece |
| Min Order: |
100/Piece |
| Pay Type: |
L/C,T/T,Western Union |
Porcelain pin type insulator is mounted on a pin on the cross-arm on the pole. There is a groove on the upper end of the insulator. The conductor passes through this groove and is tied to the insulator with annealed wire of the same material as the conductor. Pin type insulators are used for transmission and distribution of electric power at voltages up to 33 kV. Beyond operating voltage of 33 kV, the pin type insulators become too bulky and hence uneconomical.| ANSI Class/Standard | ANSI 56-2 |
| Dimensions(ln) | |
| Pin Hole Diameter - Inchs | 1-3/8 |
| Minimun Pin Height | 7 |
| Leakage Distance | 17 |
| Mechanical Values(kV) | |
| Cantilever Strength(lbs) | 3000lbs |
| Electrical Values(kV) | |
| Typical Voltage Class | 23kV |
| Low frequency flashover | Dry | 110kV |
| Wet | 70kV |
| Impluse flashover voltage | Positive | 175kV |
| Negative | 225kV |
| Low frequency puncture voltage | | 145kV |
| Radio influence voltage | Test voltage to ground | 22kV |
| Max. RIV at 1000kHz | 100kV |
| Net Weight(lb) | |
Technical Specifications:

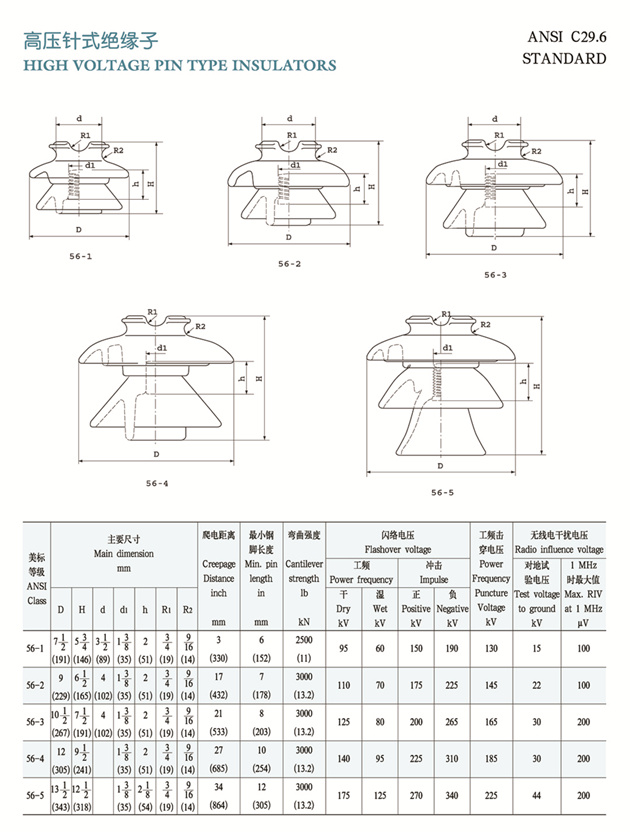

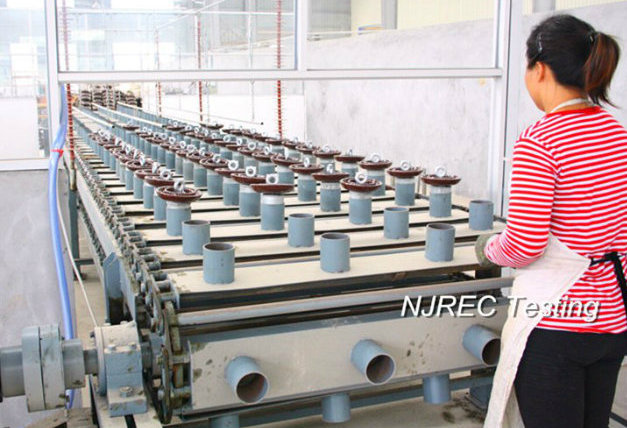

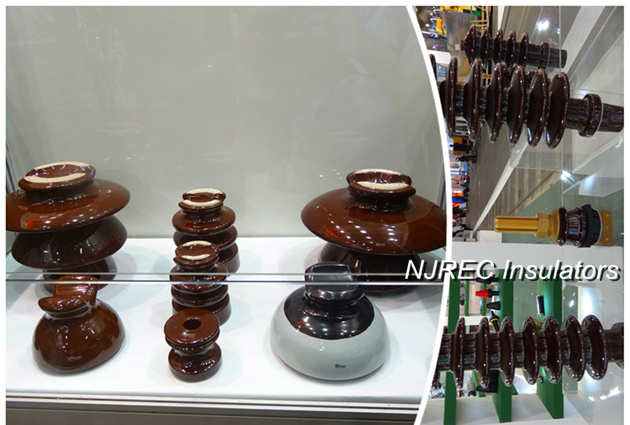

NJREC manufacturers three classes of pin type insulators. Low voltage pin types are manufactured and tested to the requirements of ANSI Standard C29.5, high voltage pin types to ANSI Standard C29.6, and special designs for use in areas of high contamination.
Glaze Color: Brown, Sky Gray, White, with Chocolate
Under standard ANSI C29.5, ANSI C29.6, IEC60383, BS137
ANSI 55-1 / ANSI 55-2 / ANSI 55-3 / ANSI 55-4 / ANSI 55-5
ANSI 56-1 / ANSI 56-2 / ANSI 56-3 / ANSI 56-4 / ANSI 56-5
P-11-Y / P-15-Y / P-22-Y / P-33-Y

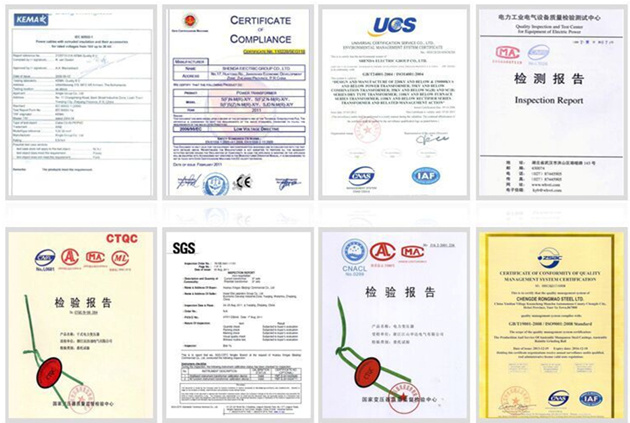

Certificates:
