Yueqing Geshiman Electric Appliance Co., Ltd. >> Busbar Insulator Busbar Support Busbar Sm Series Sm-60

Busbar Insulator Busbar Support Busbar Sm Series Sm-60

Busbar Insulator Busbar Support Busbar Sm Series Sm-60
Price: Negotiable/Piece
Min Order: 1000/Piece
Pay Type: L/C,T/T,Paypal
Prod Model: SM-60
Application: High-temperature
Type: A Type Insulator
Structure: Busbar Insulator
Material: BMC,SMC
Size Of Bearing Capacity: 25,30,35,40,50,60,76

Product Description

Product Description
Insulating Connector Bus bar Insulator SMC series

Operating temperature:-40--+140
Insert:Brass.steel with Zn coating
Material:BMC(bough moulding compound)
       SMC(sheet moulding compound)
Color,insert,mateerial in capability accordance with customer need.

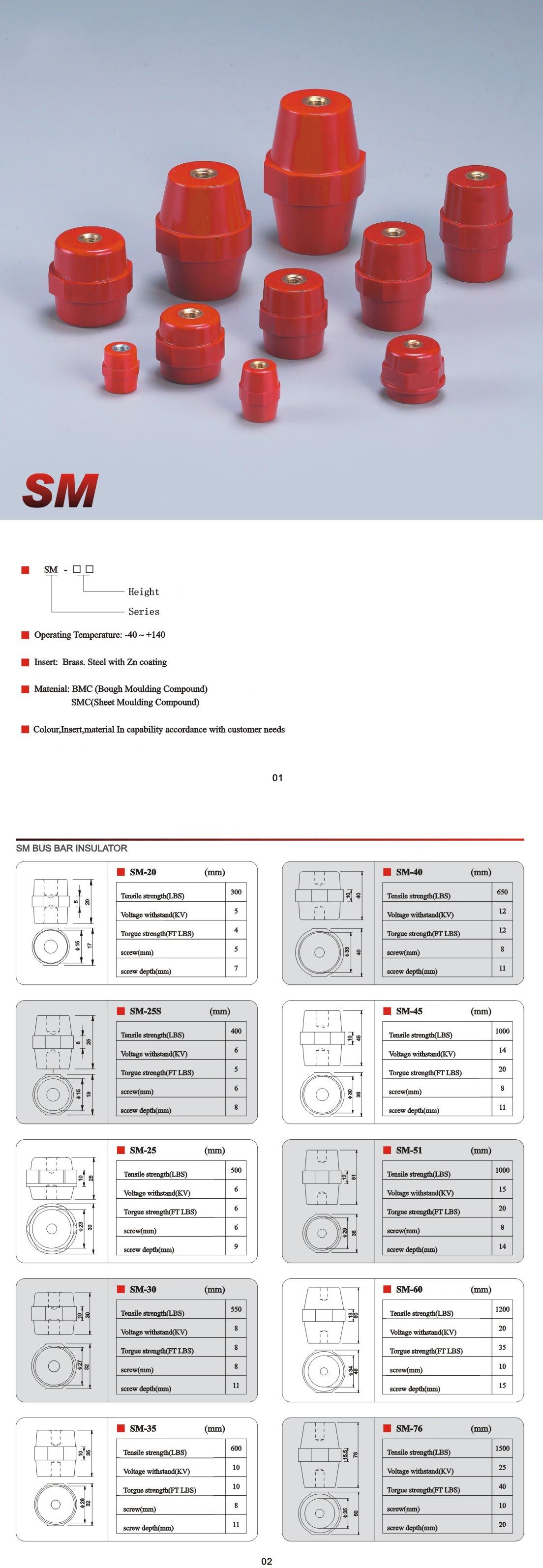

Specifications
  1. Size: SM25,SM30,SM35,SM40,SM45,SM51,SM76,SM-7105,SM-7100,SM-7120,SM-7160
2.Tensile strength:600LBS
3.Good electrical resistance, heat resistance, fire resistance, low shrinkage and water resistance properties

ValuesStyle
SM-25SM-30SM-35SM-40SM-51SM-76
Temsile strength(lbs)50055060065010001500
Torgue strength(fr lba)6810102040
Voltage withstand(kv)6810121525
Screw(mm)6888810
Weight(g)2844505683233

Advantages:
The products have excellent insulation properties,high strenght,high temperature resistant,safe and reliable,tated voltage 660V is good choice for low voltage power distribution cabinet fixed bus.

Using SMC unsaturated resin hot pressing. Mainly used for high and low voltage power distribution cabinet,inverter,power distribution box,supporting the connecting bus etc.

The product has excellent insulation properties,high strength,high teperature resistant,safe and reliable,rated voltage up to 660V is the best choice for low voltage power distribution cabiner fixed bus.

typediametersizeGW/pcsQTY/box
SM25M625X300.04kg20
SM30M630X320.04kg20
SM30M830X320.04kg20
SM35M635X320.06kg10
SM35M835X320.06kg10
SM40M840X400.09kg10
SM51M851X360.12kg10
SM76M1076X500.15kg10
SM7105M638X320.07kg10
SM7105M838X320.07kg10
SM7110M845X420.1kg10
SM7110M1045X420.1kg10
SM7120X50M1051X510.18kg10
SM7120X60M1060X540.2kg10

Yueqing Geshiman Electric, which specializes in manufacturing series of circuit breakers, is a scientific enterprise integrating with scientific research, manufacture, processing and trading business.

The main products in our company are Miniature Circuit Breaker, Residual Current Circuit Breaker, Mould case circuit breakers Push botton switches, isolator etc...Our products apply into high end of market in the world. The qualification of products reaches a MID and high level in China markets, and the quality is accepted by high end of market.

Meanwhile, we have our own intellectual rights for breakers and leakage breakers and have advanced testing and assembly equipment and exquisite manufacture techniques.

We have more than 500 workers for production 8 engineers for quality control and technics. All of our product line are according the CE certficates and test reports.

For Business. We have experience to serve the famous brand in OEM. Our company is not very big but with the quality goods forever. We only make the quality parts. Welcome all of our customers or new friends feel free to visit our company.
