Busbar Insulator Standard Sm Series

Name: Busbar Insulator Standard Sm Series
Brand: all-electronics-online.com
SKU: 770971175
Availability: InStock
Rating: 4.4 (124 reviews)

Price:	US $ 0.1562/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1000/Piece
Pay Type:	L/C,T/T,Paypal,Western Union

Contact Supplier

Showroom Product Company Profile

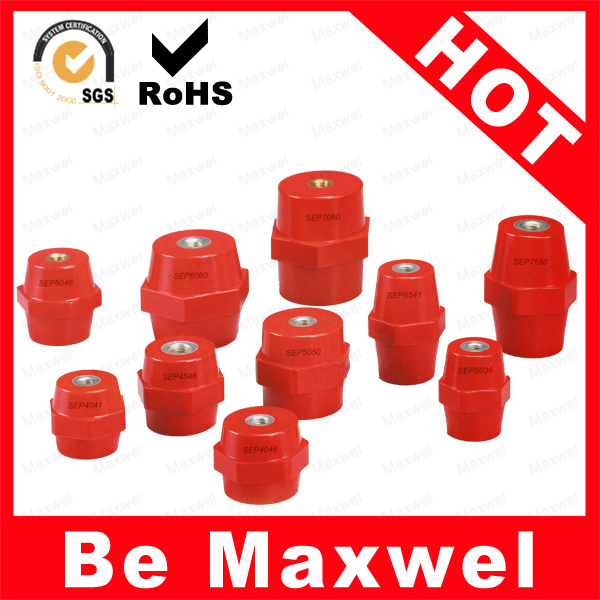

Standard Busbar Insulator SM Series

Specifications

1. Size: SM25, SM30, SM35, SM40, SM45, SM51, SM76
2. Tensile strength: 500LBS, 600LBS, 650LBS, 1000LBS
3. Good electrical resistance, heat resistance, fire resistance, low shrinkage and water resistance properties

Values	Style
Values	SM-25	SM-30	SM-35	SM-40	SM-45	SM-51	SM-76
Tensile Strength(LBS)	500	550	600	650	1000	1000	1500
Torgue Strength(FTLBS)	6	8	10	10	20	20	40
Voltage sithstand(kv)	6	8	10	12	15	15	25
Screw(mm)	6	8	8	8	10	8	10
Weight(G)	28	44	50	56	70	83	233

Prod Model:	SM
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Style:	Sm25,Sm30,Sm35,Sm40,Sm51,Sm76
Screw:	M6, M8, M10
Tensile Strength:	500~1000lbs
Colour:	Red, Blown,Black, etc
Application:	Low-voltage
Material:	Composite Polymer
Structure:	Pin Insulator
Type:	Sm Type
Color:	Red, Blown,Black, etc
Brand:	Maxwel

About Maxwel Electric

At Maxwel Electric, we efficiently produce a wide variety of tapes and electrical products. Our factory is ISO 9001: 2000-certified, and our products meet various international standards for easier market entry.

A large range for your selection

You can come to us for self-amalgamating, semi-conducting, butyl, mastic, sealing, PVC and aluminum foil tapes. We also manufacture miniature circuit breakers, residual current circuit breakers, residual current circuit breakers with over-current protection, switch disconnectors, distribution boxes and more.

Contact us

Our factory is equipped with state-of-the-art testing equipment, and we perform inspections during every step of production to ensure quality. To learn more, contact us today.
