BV Copper PVC Insulated Electrical/Electric Power Cable Wire
| Price: |
US $ 50-80/Piece |
| Min Order: |
100/Piece |
| Pay Type: |
L/C,T/T,Western Union,Money Gram |
| Prod Model: |
BV |
| Color: |
Blue, Black, Yellow, Green, Brown |
| Type: |
Insulated |
| Conductor Material: |
Copper |
| Insulation Material: |
PVC |
| Certification: |
CCC |
| Brand: |
Keqi |
| Conductor Type: |
Solid or Stranded |
| Application: |
Building or Constrction |
Product Description
BV wire is used to transmit power on the power transmission and distribution line of A.C.50Hz, rated voltage
35 kv or lower. In comparison with PVC insulation cable, it boasts not only excellent electric character,
mechanical character, heat and aging-resistant character, environmental stress resistant character and
chemical corrosion resistant character, but simple structure, light weight, no restriction by laying drop, and hightemperature allowance for long-term working as well.
BV & BVR Application
1. Use as home appliance wiring cable, building wire
2. Use as electrical and electronic equipment internal connecting wire
3. Use as lighting wire
4. House wiring cable | Type | Cross Section Area mm2 | Reference Application |
BV | 1.5 | Lighting equipment |
| 2.5 | Lighting equipment, socket, high-power electrical appliance |
| 4.0 | Air-conditioner, water heater |
BVR | 1.5 | Lighting equipment, socket |
| 2.5 | Air-conditioner, socket |
| 4.0 | Lighting equipment, socket, high-power electrical appliance |
| 6.0 | Central air-conditioner |
| 10.0 | Home entrance wire |
BV Cable data 1:Nominal
sectional area
mm2 | Conductor
No/Dia.
mm | Nominal
Insulated thick
mm | Max overall
Dia.
mm | Conductor
Resistance at 20 | Min insulated
resistance at
70MΩ/km | Weight
Kg/km |
| Cu | Al | Cu | Al |
| 1.5 | 1/1.38 | 0.7 | 3.3 | 12.1 | - | 0.011 | 19.2 | - |
| 1.5 | 7/0.52 | 0.7 | 3.5 | 12.1 | - | 0.010 | 20.6 | - |
| 2.5 | 1/1.78 | 0.8 | 3.9 | 7.41 | 11.8 | 0.010 | 30.8 | 15.0 |
| 4 | 1/2.25 | 0.8 | 4.4 | 4.61 | 7.39 | 0.0085 | 45.5 | 21.0 |
| 6 | 1/2.76 | 0.8 | 4.9 | 3.08 | 4.91 | 0.0070 | 65.0 | 29.0 |
| 10 | 7/1.35 | 1.0 | 7.0 | 1.83 | 3.08 | 0.0065 | 110.0 | 52.0 |
| 16 | 7/1.70 | 1.0 | 8.0 | 1.15 | 1.91 | 0.0050 | 170.0 | 70.0 |
| 25 | 7/2.14 | 1.2 | 10.0 | 0.727 | 1.20 | 0.0050 | 270.0 | 110.0 |
| 35 | 7/2.52 | 1.2 | 11.5 | 0.524 | 0.868 | 0.0040 | 364.0 | 150.0 |
| 50 | 19/1.78 | 1.4 | 13.0 | 0.387 | 0.641 | 0.0045 | 500.0 | 200.0 |
| 70 | 19/2.14 | 1.4 | 15.0 | 0.268 | 0.443 | 0.0035 | 688.0 | 269.0 |
| 95 | 19/2.52 | 1.6 | 17.5 | 0.193 | 0.320 | 0.0035 | 953.0 | 360.0 |
| 120 | 37/2.03 | 1.6 | 19.0 | 0.153 | 0.253 | 0.0032 | 1168.0 | 449.0 |
| 150 | 37/2.25 | 1.8 | 21.0 | 0.124 | 0.206 | 0.0032 | 1466.0 | 551.0 |
| 185 | 37/2.52 | 2.0 | 32.5 | 0.099 | 0.164 | 0.0032 | 1808.0 | 668.0 |
bvr Cable data 2:Nominal
sectional area
mm2 | Conductor
No/Dia.
mm | Nominal
Insulated thick
mm | Max overall
Dia.
mm | Conductor
Resistance at
20 | Min insulated
resistance at
70MΩ/km | Weight
Kg/km |
| 2.5 | 9/0.41 | 0.8 | 4.2 | 7.41 | 0.011 | 33.0 |
| 4 | 19/0.52 | 0.8 | 4.8 | 4.61 | 0.009 | 48.0 |
| 6 | 19/0.64 | 0.8 | 5.6 | 3.08 | 0.0084 | 68.0 |
| 10 | 49/0.52 | 1.0 | 7.6 | 1.83 | 0.0072 | 115.0 |
| 16 | 49/0.64 | 1.0 | 8.8 | 1.15 | 0.0062 | 176.0 |
| 25 | 98/0.58 | 1.2 | 11.0 | 0.727 | 0.0058 | 272.0 |
| 35 | 133/0.58 | 1.2 | 12.5 | 0.524 | 0.0052 | 384.0 |
| 50 | 133/0.68 | 1.4 | 16.5 | 0.387 | 0.0051 | 510.0 |
| 70 | 189/0.68 | 1.4 | 16.5 | 0.268 | 0.0045 | 714.0 |
| 95 | 259/0.68 | 1.0 | 19.5 | 0.139 | 0.0035 | 965.0 |
| 120 | 259/0.76 | 1.8 | 22.0 | 0.153 | 0.0032 | 1210.0 |
| 150 | 259/0.85 | 1.8 | 25.0 | 0.124 | 0.0032 | 1510.0 |
All the goods are full meter and working life are 25 years!

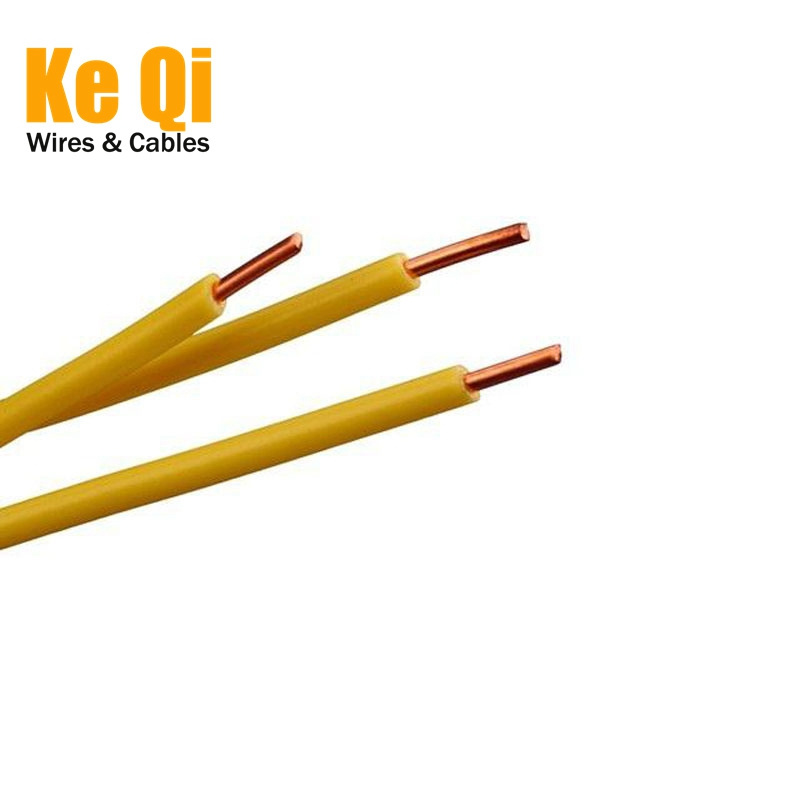

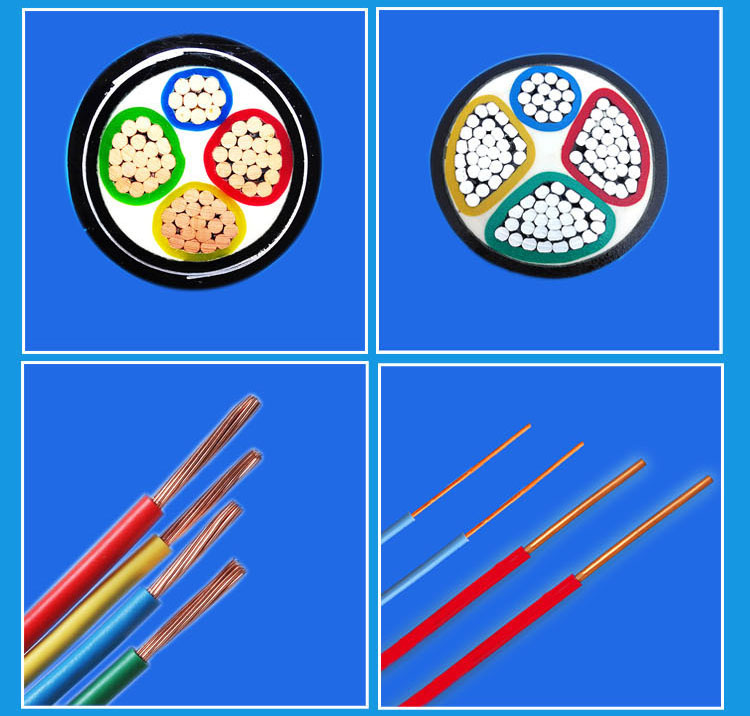

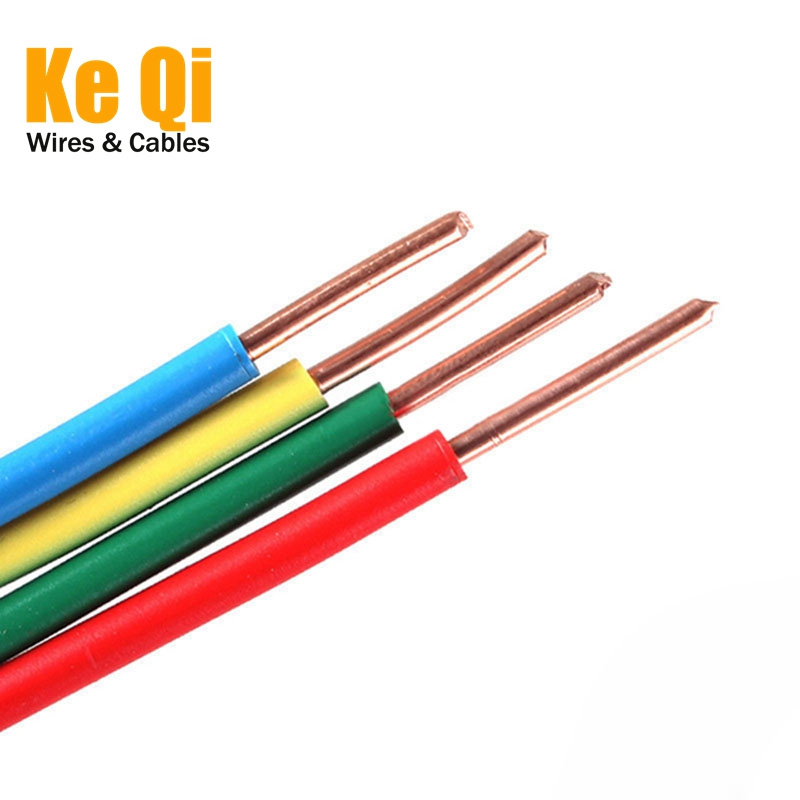

Product Photos

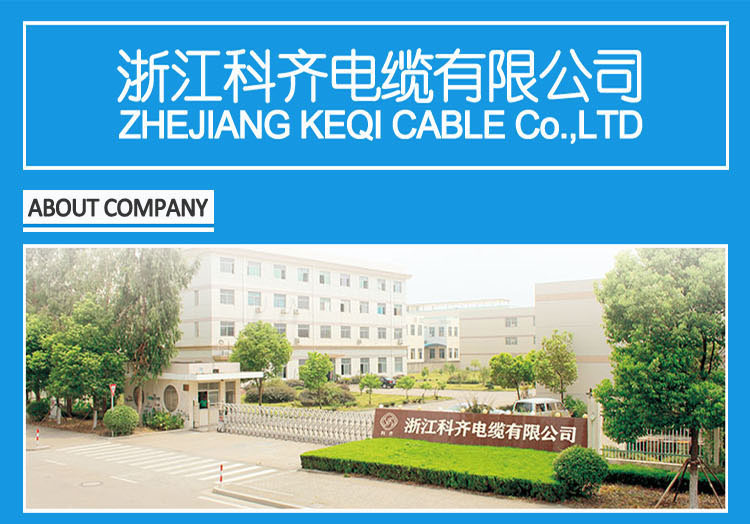

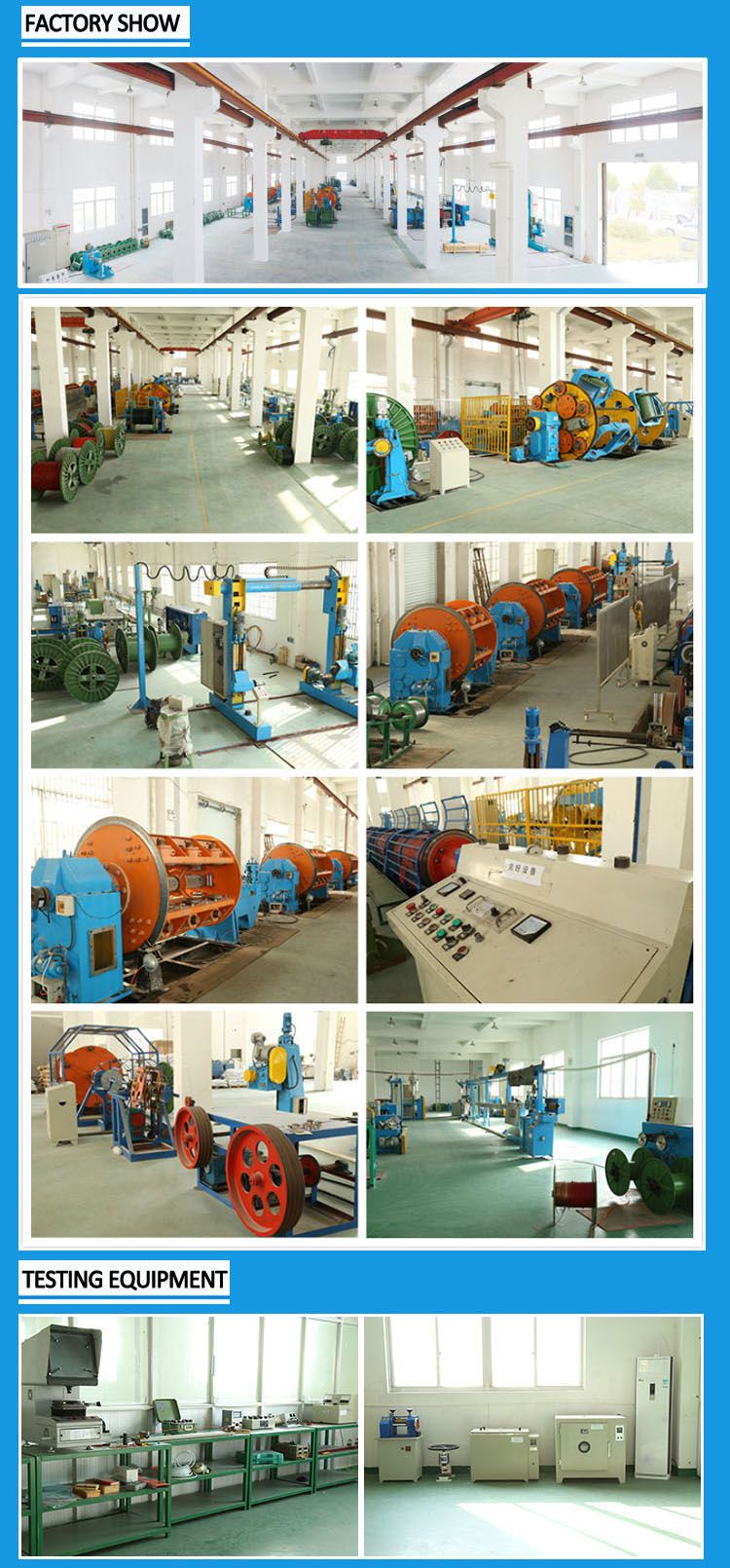

Our company
