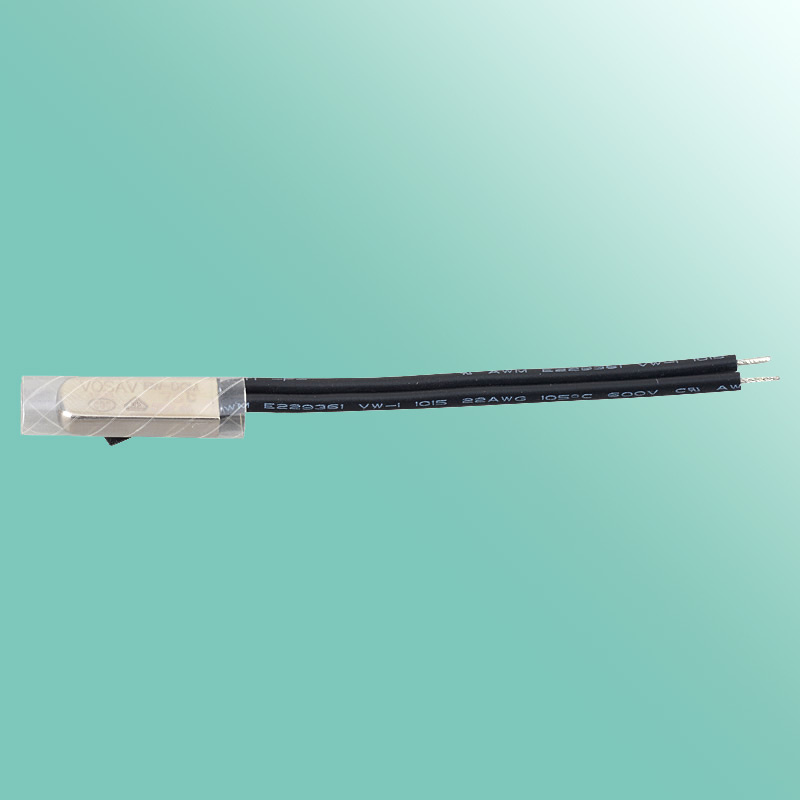

Bw Series Auto Parts of Thermal Protector

Bw Series Auto Parts of Thermal Protector
Price: Negotiable/Piece
Trade Terms: EXW
Min Order: 500/Piece
Pay Type: T/T
Details:
Key Benefits:
Ø  Miniature size
Ø  Positive make and break with snap-action disc
Ø  Repeatable temperature performance over 10k life
Ø  Gasketed case suitable for most impregnation processes
Ø  Substitute SENSATA 17AM 7AM, SEKI ST22 series

Application:

Ø  HID ballasts
Ø  Battery packs
    Ø  Fractional Power Motor
    Ø  AC brushless motor and pump
    Ø  DC motor
    Ø  Heating appliance

Technical Parameter:
    Ø  Contact forms : frequent karat,frequent shut
    Ø  Dimension case 3.8×7.4×20.0mm leading wire 70mm normal
    Ø  Maximum contact ratings  (15A/12VDC 12A/24VDC 10A/120VAC 8A/250VAC)
    Ø  Opening Temperature 50~150ºC
    Ø  Action Temperature Tolerance ±5±4±3ºC
    Ø  Contact Resistance ≤50mΩ
    Ø  Lnsulation Resistance ≥100mΩ



Prod Model: BW
Markets: North America,South America,Eastern Europe,Africa,Mid East,Western Europe
Features: Miniature Size
Breaking Capacity: High
Type: Temperature Fuse
Usaga: Electronic
Hengxin Precision Electrical Equipment Co., Ltd., is a manufacturer of thermal protectors, air discharge temperature controllers, automatic electrical controls for household and simmilar use.

Located in the city of Foshan, our manufacturing facility covers 5, 000 square meters, where we employ an experienced team of over 200 staff members. Moreover, we utilize advanced production machinery including state-of-the-art bimetal pressed technology and high precision thermal treatment equipment. Accordingly, our annual revenue reaches USD4, 200, 000.

With strong experience and a strict quality control system, our thermal protectors are some of the best in the industry. As such, we can provide a wide range of product specifications and gladly accept custom orders.

Accordingly, we have received several quality system and safety certifications including UL, C-UL, VDE and CQC certifications. As a result, our products have gained a strong reputation for reliability throughout many international markets.
