| Prod Model: |
BZJ-311 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Manufacturers: |
Yse |
Product Description
Product details:

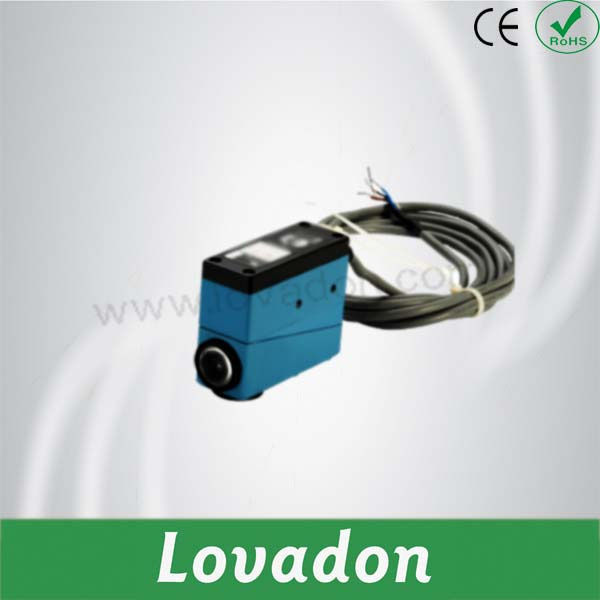

1. BZJ series color code sensor applies the light emitting and the receiving principle.
2. It will send out modulating light, receive the reflecting lights from detected object, and distinguish the color or recognize the existence of objects according the intensity of the receiving signals.
3. It can serve for sensor in the automaticcontrol systems for packing machiney, printing machinery, texture and paper making machinery ect and be used with other instruments to detect the existence of the object marked with color code, pattern code, line or others.
4. It has the functions of self-locating, recognizing colors, rectifying deviation, pattern checking and countering.
5. The sensor applies optical technique, semi-conductor electronic technique and modulation demodulation, and has the features of high sensitivity, quick response speed, strong anti-background interference, compact structure and convenient operation.
Main features:
1. Compact volume
2. High precision of repeated location
3. Diversified exterior structures
4. Good performance of anti-interference
5. Many output forms
6. High on-off frequency
7. Wide voltage range
8. Dust proof, vibration proof, water proof and oil proof
9. With short-circuit protection and inverted connecting protection
10. Long service life
Packaging
Items per Carton: | Please contact us for big order quantity packing information. |
| Gross Weight per Unit: | 0.6 kg |
| Package Size per Unit: | 4X6X10 cm |
| Package Type: | Independent color box packaging |
| Technical Parameter: | | | | |
| Model | BZJ-211 | BZJ-311 | BZJ-411 | BZJ-511 |
| Size(mm) | 85*57*28 | 38*62*100 | 23*40*56 | 23*40*56 |
| Supply voltage | 10-30vdc | 10-30vdc | 10-30vdc | 10-30vdc |
| Ambient temperature | 0-50 C | 0-50 C | 0-50 C | 0-50 C |
| Detecting method | Coaxial reflection | Coaxial reflection | Coaxial reflection | Coaxial reflection |
| Sensing distance | 9mm |
| Chromatogram of ligh | Red, green , blue, white | Red, green , blue, white | Red, green , blue, white | Red, green , blue, white |
| Facula | circular | circular | circular | circular |
| Response time | 50us | 50us | 200us/500us | 200us/500us |
| Output current | < 200mA | < 200mA | < 200mA | < 200mA |
| Output type | NPN | NPN, PNP, Analog Output | NPN | NPN |
| Shell material | Metal | Metal | Metal | Metal |
| Cable length | 2m | 2m | 2m | 2m |
| Protection | RP-power protection, Load short - circuit protection |
| Weight | 450g | 500g | 200g | 180g |
