| Prod Model: |
BC-1106B |
| OEM/ODM: |
Accepted |
| Warranty: |
2 Years |
| Certification: |
Ce, 3c, CAS, RoHS, ISO9001 |
| Panel: |
Aluminium Panel |
| Brand Name: |
Power Amplifier |
| Lead Time: |
15-25days |
| Color: |
Black |
| Tube Type: |
Transistor Amplifier |
| Function: |
Pre-amplifier |
| Voltage: |
AC 220V |
| Element Number: |
Monoamplifier |
| Conductive Mode: |
AB |
| Type: |
PA Amplifier |
| Used For: |
Hotel, School, Airport, Market, Church, Subway |
| Usage: |
Public Address System |
| Output Number: |
3+1 |
| Sound Channel: |
1.0 |
Product Description

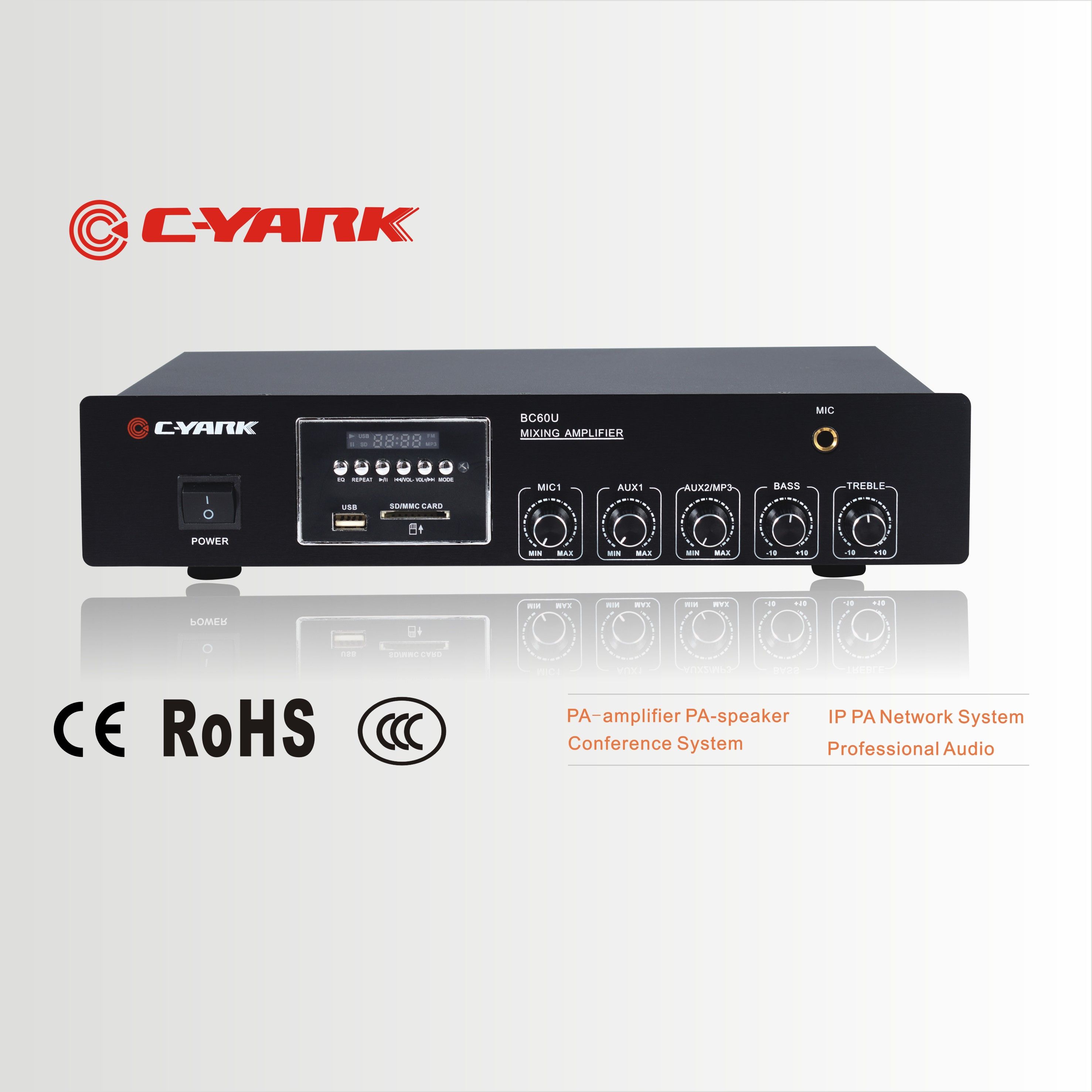

C-yark High Power Amplifier for PA System
Description

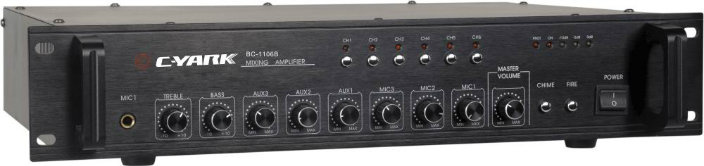

® 2U rack mount design with high quality aluminium alloy panel.
® Including 6 buttons to control ON or OFF of each zone and 1 button for fire alarm.
® The digital module includes USB port and SD card slot
® Mute function: Input has priority level ( Front MIC 1 overrides all other inputs).
® Applying newest separation circuit design for convenient repairing and maintenance.
® Output module has a cover to prevent it from damaging by other machines.
® Excellent device of radiator cooling fan that ensures working effectively.
® The perforated back panel and a high-speed fan keep the amp cool.
® It supports Bluetooth and is with LED to display status.
® It has 3 AUX inputs, 3 MIC inputs, internal MP3 player and FM.
® Master volume control are provide for overall tone control.
® Treble and bass volume control.
® Output module has a cover to prevent it from damaging by other machines.
® Built-in MP3 and FM function to play background music directly and no need for another audio facility.
Features
1.Power: 60W/100W/150W/200W/250W/350W/500W
2.Input: 3 AUX inputs, 3 MIC inputs(MIC 1 has Mute function for emergency input)
3.Output: 1 AUX output
4.5 point LED indicator
5.Model:USB / SD Card
6.File format: MP3/WMA/WAV
7.Multiple play mode:repeat; play/pause; previous/next; vol+/vol-;EQU(equalizer)
8.Remote controller
9.Power transistor: Samsung brand
10.Protection:Short-circuit/Over-load/Over heat Specifications| Model | BC-1106B | BC-1110B | BC-1115B | BC-1120B | BC-1125B | BC-1135B | BC-1150B |
| Rater Power | 60W | 100W | 150W | 200W | 280W | 380W | 500W |

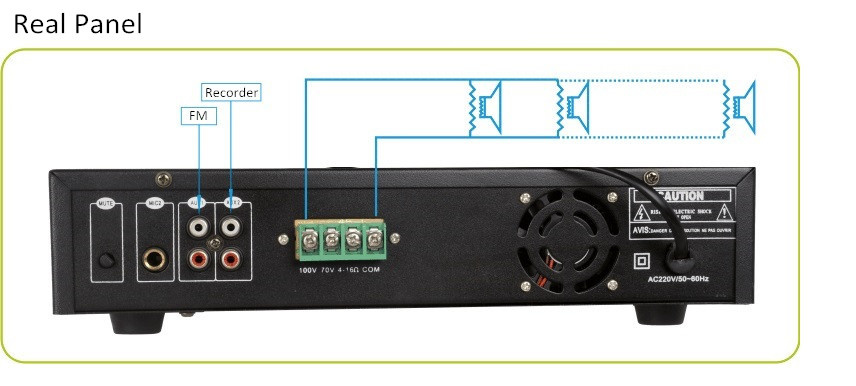

| Output Model | 70V 100V 4-16Ω |
| Input Sensitivity | 500mv/10KΩ |
| S/n Radio | >85db |
| Freq Response | 80Hz~~15KHz |
| Power | AC 220V~~240V/50Hz~60Hz |
| Dimension(mm) | 60W-280W: 485*370*90mm, 380W-500W: 485x390x90mm |
