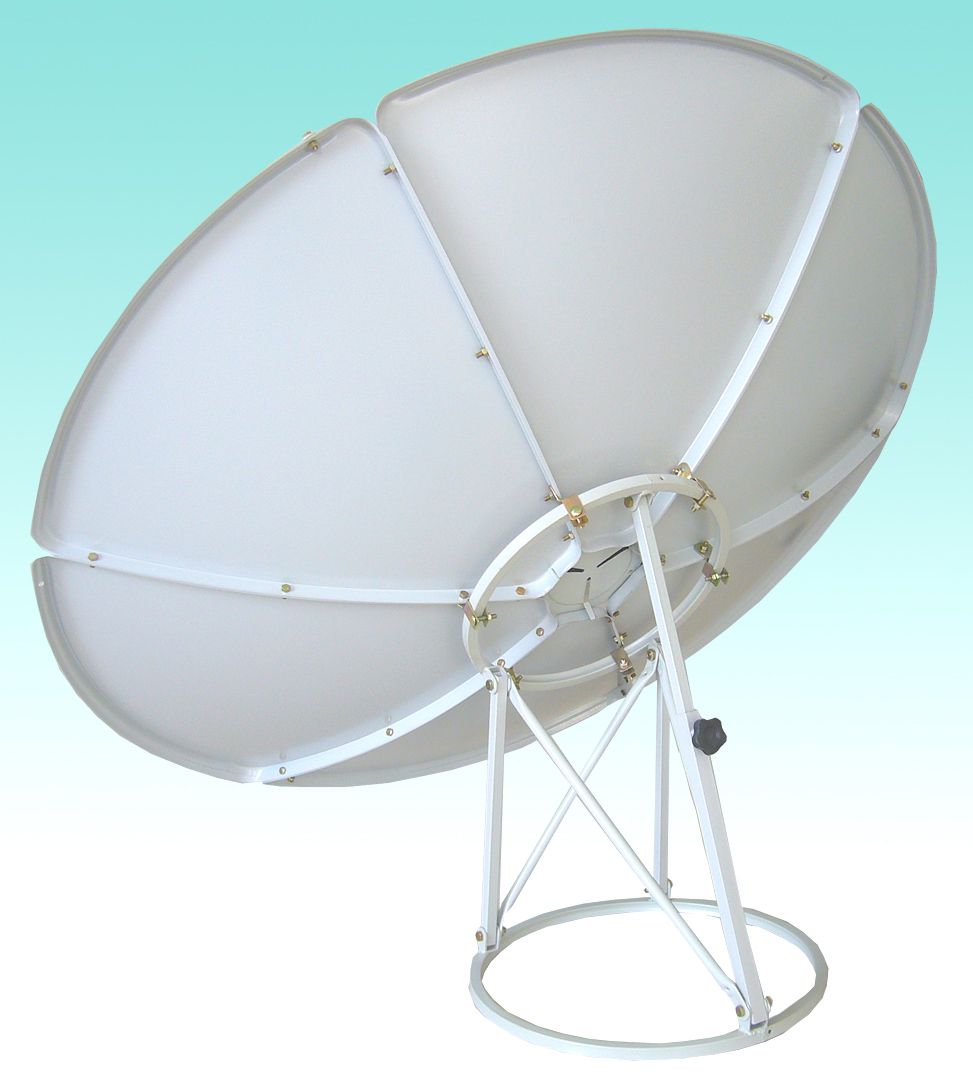

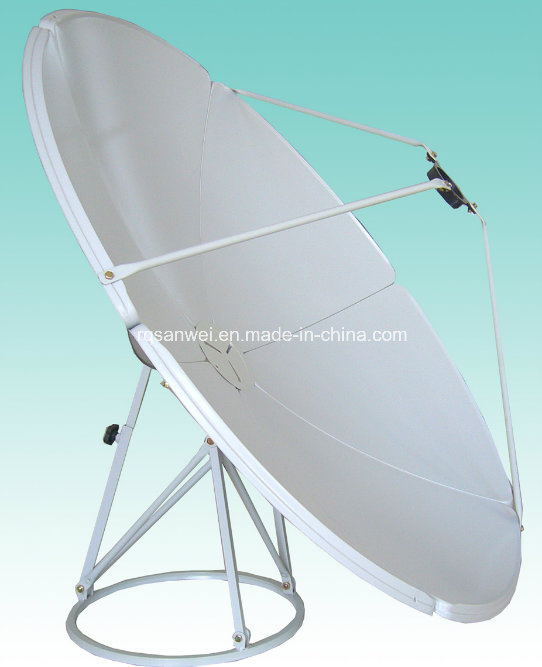

C120cm/C135cm/C150cm/C160cm/C180cm Satellite Dish TV Antenna
| Price: |
US $ 10-20/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
100/Piece |
| Pay Type: |
L/C,T/T,Western Union |
c120cm/c135cm/c150cm/c160cm/c180cm satellite dish tv antenna:24 years of experience
anti-rust resistance: min 5 years
sales agent all over most provinces of China and hot sale broad| type | SW-C-120-|| | SW-C-135-|| | SW-C-150-|| | SW-C-160-|| | SW-C-180-|| |
| panel | 6 panels | 6 panels | 6 panels | 6 panels | 6 panels |
| Caliber | 120CM | 135CM | 150CM | 160CM | 180CM |
| c band gain 4GHz | 32.78dB | 33dB | 34.5dB | 35.5dB | 36dB |
| F/D ratio | 0.38 | 0.38 | 0.38 | 0.38 | 0.38 |
| focal distance | 456MM | 513MM | 570MM | 608MM | 684MM |
| material | steel board | steel board | steel board | steel board | steel board |
| surface | spray plasties | spray plasties | spray plasties | spray plasties | spray plasties |
| stand | many uses with | many uses with | many uses with | many uses with | many uses with |
| angle of elevation | 0-90 degree | 0-90 degree | 0-90 degree | 0-90 degree | 0-90 degree |
| level | fixed/0-360 degree | fixed/0-360 degree | fixed/0-360 degree | fixed/0-360 degree | fixed/0-360 degree |
| wind speed | can receive | 25m/sec | 25m/sec | 25m/sec | 25m/sec | 25m/sec |
| can replace | 40m/sec | 40m/sec | 40m/sec | 40m/sec | 40m/sec |
| not damage | 60m/sec | 60m/sec | 60m/sec | 60m/sec | 60m/sec |
| work surrounding temperature | '-40ºC-- +60ºC' | '-40ºC-- +60ºC' | '-40ºC-- +60ºC' | '-40ºC-- +60ºC' | '-40ºC-- +60ºC' |
| net weight | 0.4mm:7.5 kgs | 0.4mm:9.65 kgs/ 0.5mm:11.49 kgs | 0.4mm:10.95 kgs/ 0.5mm:13.14 kgs |
| 0.5mm:19.18 kgs/ 0.6mm:19.92 kgs |
| gross weight | 0.4mm:8.3 kgs | 0.4mm:11 kgs/ 0.5mm:12.84 kgs | 0.4mm:11.82 kgs/ 0.5mm:14 kgs |
| 0.5mm:20.58 kgs/ 0.6mm: 21.32 kgs |
| container quantity |
| 40HQ:1560 sets/ 20GP:734 sets |
|
| 40HQ:875 sets/ 20GP:435 sets |
| Prod Model: |
c120cm/c135cm/c150cm/c160cm/c180cm |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Panel Thickness: |
0.4mm-0.6mm |
| Color: |
White Grey or as Customer's Request |
| Usage: |
TV Antenna |
| Material: |
Steel Plate |
Our factory was founded in 1992, and registered as company in Aug 2013. Our company covers an area of 40, 000 square meters with 400 staff. Our corporation is one of the earliest and biggest mannufacturers which researched and manufactured satellite antenna in China, meanwhile, we are also one of the first designated manufacturers which were approved by Ministry of Information Industry of People's Republic of China (MIIC). Sanwei has outstanding and superior equipments and there are four full automatic production lines for spraying. We have a production capability of more than 500, 000 sets per month. The turnover of 2016 is USD 17 million, the sales quantity of 2015 is 2.5 million sets.
Because of good quality and competitive price, Sanwei commodities enjoy fast sales home and abroad. We mainly manufacture ku band satellite antenna of 35cm, 45cm, 55cm, 60cm, ku65cm, 75cm, 80cm, 90cm, 100cm, 120cm, 137cm and 150cm and C band satellite antenna of 100cm, 120cm, 135cm, 150cm, 160cm, 180cm, 210cm and 240cm.
As one of the largest satellite dish antenna manufacturers in China, Sanwei Corporation has been leading in the market for 25 years. Because of good quality and professional service, our commodities get good reputation among overseas and domestic clients. In 2011, famous brand mannufacturer certificate of Hebei was awarded to us by administrative bureau for industry and commerce of Hebei; In 2011, 2012, 2015, our company got certificate for advanced enterprise for export exchange earning from our goverment; Furthermore, it was taken for granted that our corporation have obtained GB/T19001-2008 & ISO9001: 2008 Certificate of Quality Management System issued by World Standards Certificate Center Inc.
Our brand name-SANWEI is famous in China, and we have established sales agents in most provinces of China; Meanwhile, our goods enjoy fast sales during overeases distributors and goverent' tender winners.
In order to meet more and more requirements from clients, we have enlarged our factory and have bought new advanced equipments. Sanwei will go on to endeavor to provide more outstanding products and service for our clients. It's our target to make you satisfied. If you are interested in our commodities, please feel free to contact us: Mobile: 0086-15028691745, tel: 0086-317-2956015
