C2h6o Ethanol Gas Alarm Alcohol Detecting (semiconductor sensor)
| Price: |
US $ 418.78-435.88/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
T/T,Western Union |

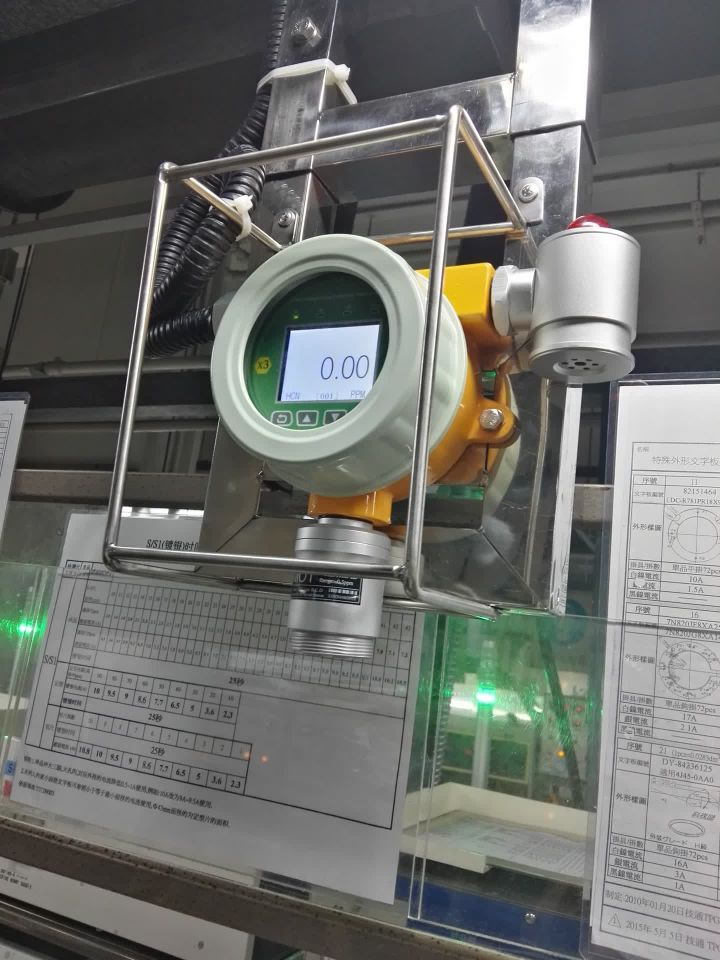

1) Description The MOT200 can continuous detect the real-time gas concentration and display data with the 2.4inches LCD HD color screen. It include RS485 Modbus digital output and 4-20mA analog digital output as well as 2 relays output as standard. It also provide other signal transmission like 3-4 core cable,Optical fiber network,Network cable,3G transmission,Wireless transmission,Video transmission. And it compatible with all kinds of controller ,PLC and DCS etc, allow user to remote monitoring and control. Monitoring data can be save and analyze by computer.
2) Selling Points:☆★ handhold,ABC+PC plastic case,IPS display
☆★ can be configure flexibly up to 5 gas sensors or 3 gas sensors plus 1 dust sensor
☆★ equipped with temperature and humidity detection function as standard
☆★ Up to 100,000 group data could be storage
☆★ can be exported to the computer to view historical data in a graph format or EXCEL format
☆★ print data at site by micro printer(optional)
☆★ wireless real-time communication with computer(optional)
3) Specifications| Product Type: | Online,Ethanol(C2H6O) |
| Sensor: | semiconductor Gas Sensor |
| Detection Pattern: | Diffusion,pipeline(screw thread size:M40*1.5MM),Circulation,Pumping is available,Online detection |
| Detection Range: | 0-1%VOL |
| Resolution: | 0.01%VOL |
| Detection Accuracy: | ≤±3%F.S | Linearity error: | ≤±1%F.S |
| Reaction Time: | ≤20S(T90) | Zero drift: | ≤±1%(F.S/Year) |
| Recovery Time: | ≤20S | Repeatability: | ≤±1%F.S |
| Relay output: | Two relays output,Contact rating:24VDC 3A/220VAC 3A |
| Explosion Proof Sign: | ExdII CT6,Certification Number of Explosion-proof :CNEx10.1807 |
| Outputs: | Analog:4-20mA signal,0-5V,0-10V
Modbus: RS485 signal
Pulse signal or TCP/IP signal,optional |
| Alarm Setting: | Two alarm set points
Alarm mode optional: Low alarm-High alarm / High alarm-High alarm / Low alarm-Low alarm |
| Controllers: | Compatible with DN3000/DN9000,as well as most DCS/PLC systems |
| IP Rating : | IP65 |
| Material: | Aluminum
,Explosion and corrosion proof | Connection: | 3/4″NPT,1/2″NPT |

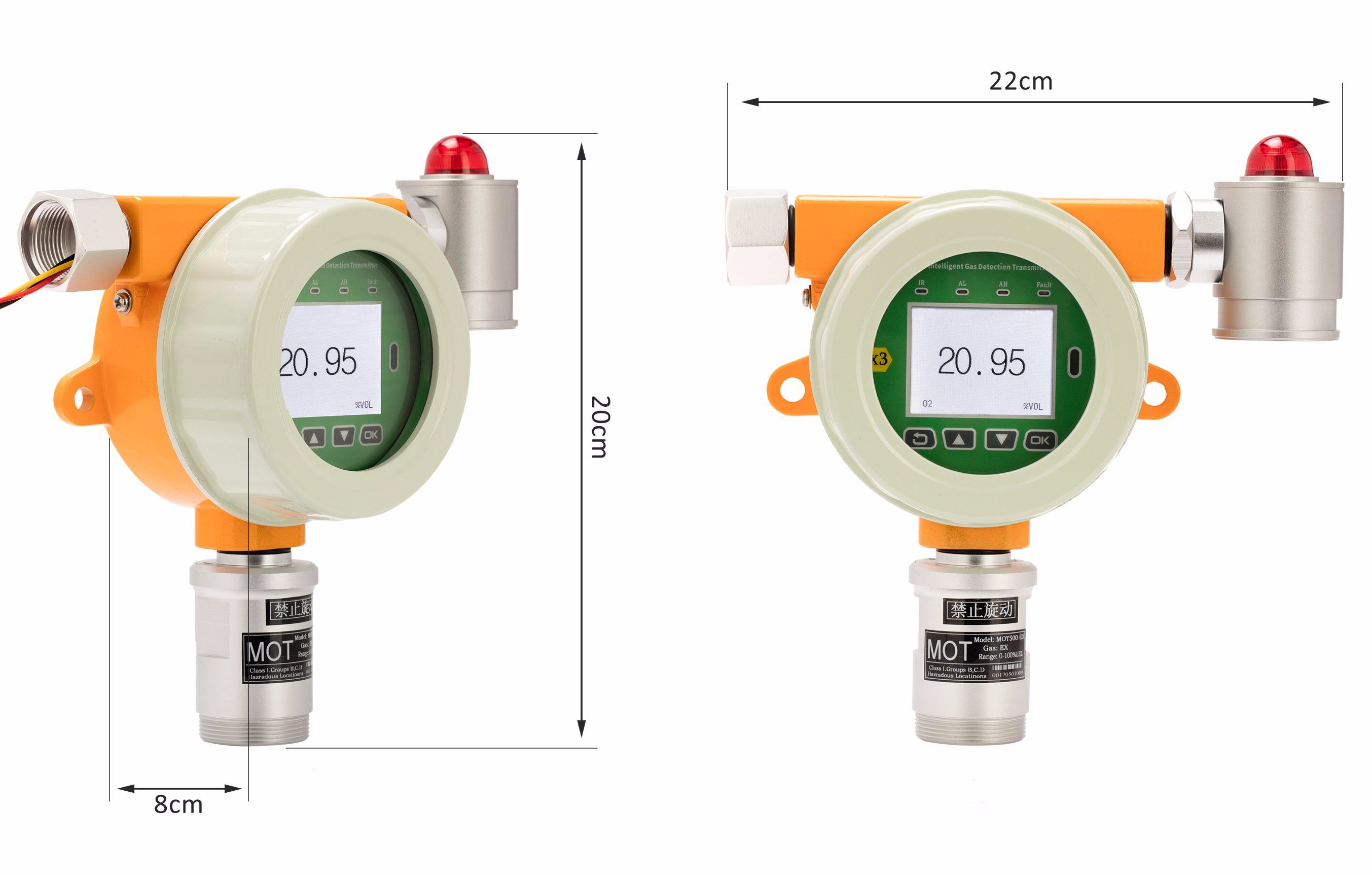

| Dimensions: | 200×160×80mm(L×W×H) | Weight: | 1.5 Kg(Net weight) |
Operating
Temperature: | -30 ~ 60ºC | Relative Humidity: | ≤90%RH,Non-condensing |
Operating
Pressure: | 0 ~ 200Kpa | Operating Voltage: | 24VDC(9~30VDC) |
| Standard Accessories: | -User manual
-Certification
-Calibration cover |
| Optional Accessories: | -hose(5*8mm),drying tube,water separator or pumping pump
-infrared remote control
-temperature and humidity sensor,SMS alarm,3G module or wireless transmission module |
4) F&Q:Q1:Can I have a sample order?
A1: The sample order to test are welcomed at the first time.
Q2:How about your production capacity and quality control?
A2:We have written instructions for incoming material&finished products inspections and testing.All the finished products will be 100% inspection and all the non-conforming units will be clearly marked and segregated to repaired and re-inspection.
Q3:How can I get a good price?
A3:We are 100% sure that we can provide you high value with competitive price and please attach your detailed request, application place, order quantity, delivery mode,payment terms to the inquiry mail ^ ^
5) Contact US:
| Prod Model: |
MOT200-C2H60 |
| N.W: |
1.4kg |
| G.W: |
1.7kg |
| Screen Size: |
2.4 Inch LCD HD Color Screen |
| IP Rating: |
IP 65 |
| Explosion Proof Sign: |
Exdll CT4 (Ia) |
| Power: |
24VDC |
| Modbus Digital Output: |
RS485 Output |
| Analog Digital Output: |
4-20mA Output(0-5V,0-10V Optional) |
| Alarm Type: |
Sound and Light Alarm |
| Material: |
Die-Cast Aluminum |
| Gas: |
C2h6o |
| Type: |
Semiconductor |
Shenzhen Korno Import& Export Co., Ltd is one of the top gas and dust particle detector manufacturer in China, with more than 10 years research and production experience. Our products mainly include Handheld Gas Detector, Portable Gas Detector, Online Gas Detector, Controller, Gas Pretreatment System ect. And we have passed ISO9001: 2015, ISO14001: 2015, OHSAS: 2007, CMC and Explosion-proof certification for our products.
We have associated factory named Shenzhen Korno Electornic Technology Co., Ltd, the factory was established in 2008 with 45 employees and occupies an area of more than 1000 square meters
We have our own R&D departments, processing plants, assembly plants, after-sale technical support departments, domestic sales, overseas sales departments, etc.
The company has advanced production equipment and testing instruments, excellent marketing team and partners both at home and abroad, perfect management of the product market development and product after-sales service.
Our main market is Asia, Europe and America, more than 30 countries.
Our customers are: Mordoch University, HUANGKUANG University, Humboldt University Berlin, S. P. Refinery. Co., Ltd, China National Petroleum Corporation, etc.
