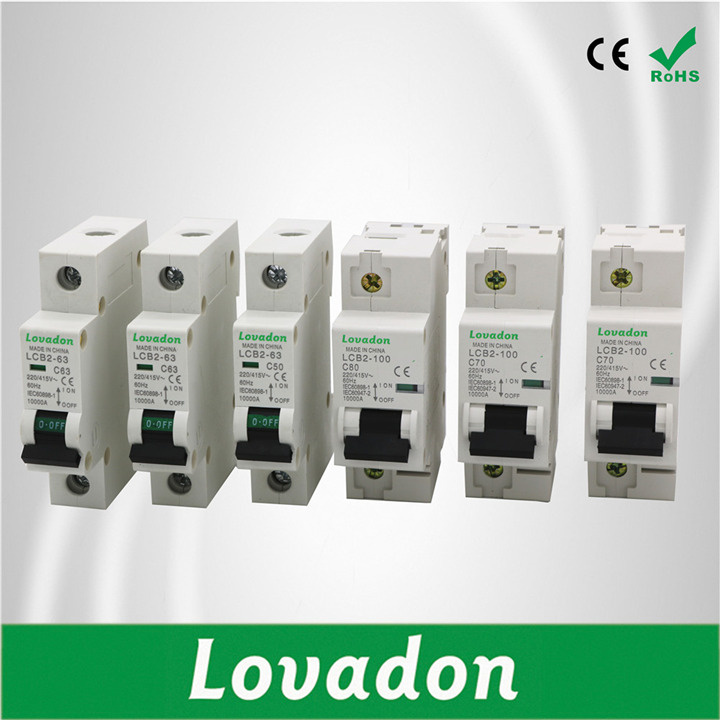

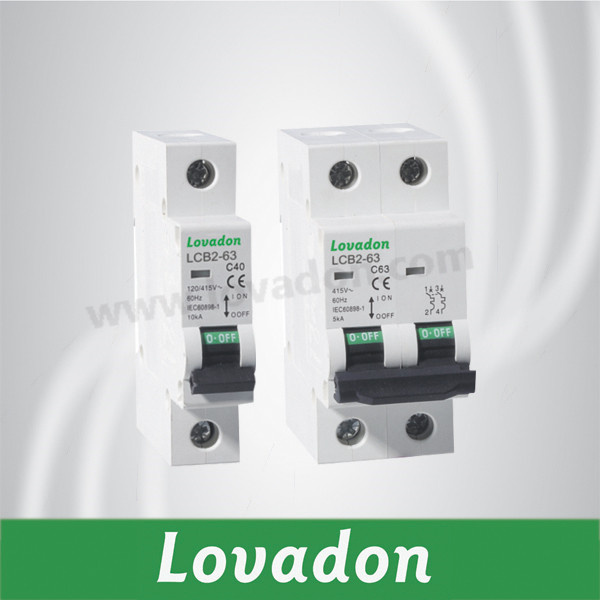

C40. C63 Lcb2-63n Miniature Circuit Breaker

Name: C40. C63 Lcb2-63n Miniature Circuit Breaker
Brand: all-electronics-online.com
SKU: 684192602
Availability: InStock
Rating: 4.8 (134 reviews)

Price:	US $ 0.61-0.62/Piece
Trade Terms:	FOB,CFR,EXW
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

1. Item name: LCB2-63
2. Standard: IEC/EN60898-1
3. Function: Overcurrent protection
4. Rated voltage: 220/380, 230/400, 240/415
5. Pole: 1, 2, 3, 4

Specifications
	Standard		IEC/EN 60898-1 IEC/EN 60947-2
Electrical features	Rated current In	A	1,2,3,4,6,10,13,16,20,25,32,40,50,63
	Poles	P	1,2,3,4
	Rated voltage Ue	V	120/240 220/380 230/400 240/415
	Insulation voltage Ui	V	500
	Rated frequency	Hz	50/60
	Rated breaking capacity	A	4500/6000/10000
	Energy limiting class		3
	Rated impulse withstand voltage(1.2/50)Uimp	V	6000
	Dielectric test voltage at ind. Freq. for 1min	kV	2
	Pollution degree		2
	Thermo-magnetic release characteristic		B,C,D
Mechanical features	Electrical life	t	10000
	Mechanical life	t	20000
	Contact position indicator		Yes
	Protection degree		IP20
	Reference temperature for setting of thermal element	ºC	30
	Ambient temperature (with daily average ≤35ºC)	ºC	-5~+40
	Storage ten perature	ºC	-25~+70

Prod Model:	LCB2-63N
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Poles:	1, 2, 3, 4
Rated Voltage Ue:	220/380V 230/400V 240/415V
Rated Frequency:	50/60Hz
Rated Current:	1-63A
Breaking Capacity:	Low Voltage Circuit Breakers
Operation:	Electric Type
Speed:	Normal Type Circuit Breaker
Arc-extinguishing Medium:	Air
Structure:	MCB
Poles Number:	2
Certification:	CE
Installation:	DIN Type

Our company supplys different kinds of products. High quality and favaroble price. We're pleased to get your Inquiry and we will come back to as soon as possible. We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective. To perfect our service, we provide the products with good quality at the reasonable price. If you are interested in any of our products, or wish to place a customized order, please contact us. We will do our best to meet your needs.

Yueqing Lovadon Electric Co., Ltd wsa founded in 2012, located in Liushi Chandong Industrial Zone where is near the national scenery area-Yandang Mountain. Our company covers an area of 500m² And has around 30 staff members. It has advanced automation equipment and testing equipment, with a number of high-education management team and staffs. The company speciallized in manufacturing low voltage and high voltage electrical product such as Circuit Breaker, Contactors, Distrubition Boxes, Automation products, Switches, Power source, Lightning arrester, Composite suspension insulator, and so on. Guaranteeing stable and timely supply, credible quality and sincere service, our products sell well in both domestic and overseas markets.
