C45 Insert Needle Naked Copper Cable Terminals Blade Terminal

Name: C45 Insert Needle Naked Copper Cable Terminals Blade Terminal
Brand: all-electronics-online.com
SKU: 756668165
Availability: InStock
Rating: 4.9 (129 reviews)

Price:	US $ 0.01/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	10000/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

We can supply insulated blade terminals, terminals, insulated terminals, copper terminals, insulated ring terminals, fork pre-insulated terminals, pin pre-insulated terminals and pipe pre-insulated terminals. We can provide good quality and good service with competitive prices.

Specification:

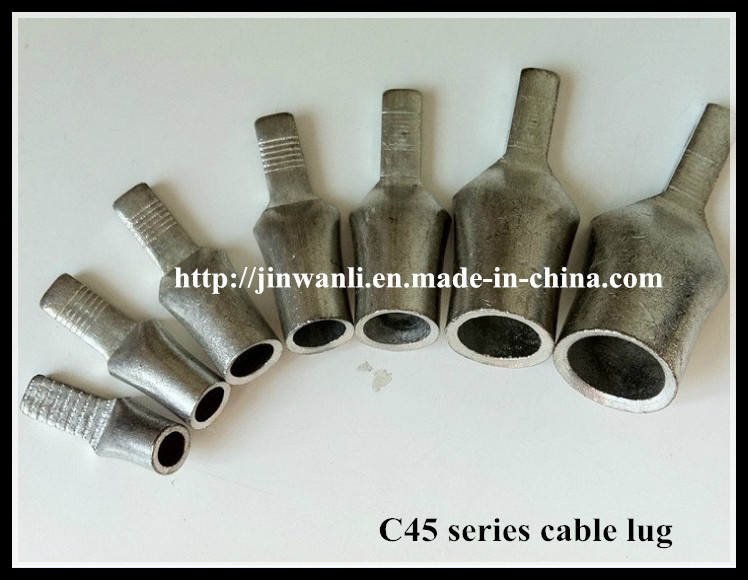

C45 Insert Needle Naked Copper Cable Terminals blade terminal
1.Material: Copper pipe
2.C45 Pin-shaped naked Terminal Lug
3.Pin Type Terminal Lug
4.Certificate: ISO900 CE ROHS
5.Surface: Tin-plated.
6.Application: Wiring and cable joint.

Item No	Dimension (mm)
Item No	DΦ	dΦ	L	L1	B
C - 6²	5.5	4.2	22	10.5	7
C - 10²	7.5	5	34	13.5	7
C - 16²	8.5	6	35	14	7
C - 25²	10	7	36	14.5	7
C - 35²	11	8	37	15	7
C - 50²	13	10	41	15.5	7
C - 70²	16	12	45	16	7
C - 95²	18	14	50	18	9
C - 120²	20	15	57	20	9
C - 150²	22	17	67	24	9
C - 185²	24	19	77	28	9
C - 240²	26	21	85	31	9

Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Type:	Single Hole Terminals
Material:	Copper
Application:	Transmission of Electrical Signals

Our company is a key electrical accessories manufacturer of terminal blocks and other cable accessories in China.

Our company is located in Yueqing, Wenzhou City, Zhejiang Province. It is a manufacturing and export company, specialized in producing components for kinds of lights, automobile and so on. They have gone through many authentications such as CQC, CE, RoHS. The main products are terminal blocks and wires, cable ties, cable clips, cable glands and copper inserts. They have entered the mafket of most parts in the world including Europe, the Middle East and Latin America. They are of good quality and sell well in many countries.

Our company manufactures products strictly according to IEC and national GB standards, and we have established a complete and improved quality management system according with ISO9002 standard system, We guarantee the products with competitive price, high quality and timely delivery. Besides, we can supply a complete set of after-sales service to our customers and help term expand their local market share.

We welcome you to contact us for more information and we are looking forward to chances of creating a long and mutually beneficial partnership with you. We do hope to cooperate very very well and develop rapidly with our joint efforts for mutual benefits.
