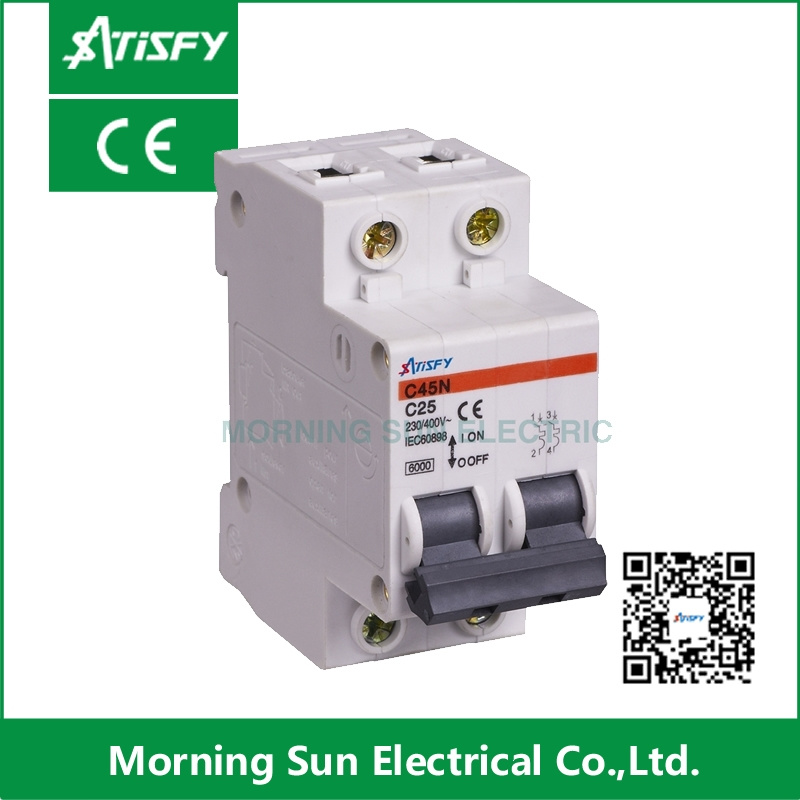

C45n MCB with High Quality

Prod Model:	C45N
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
High Quality Competitive Prices:	OEM
Breaking Capacity:	Low Voltage Circuit Breakers
Operation:	Electric Type
Speed:	Normal Type Circuit Breaker
Arc-extinguishing Medium:	Air
Installation:	Fixed
Structure:	MCB
Poles Number:	3
Certification:	CCC

Product Description

DZ47-63(C45N) series circuit breaker is used in lighting distribution system or motor distribution system for Protecting overload and short circuit in the system. The product is neoteric in structure, light in weight, reliable And excellent in performance. Its frame and parts adopt plastics of high fire resistant and shockproof. The product, With long life, is mainly used in AC 50Hz/60Hz single pole 240V or two, three, four poles up to 415V circuit for Overload and short circuit protection, as well as for unfrequently switching on&off electric equipment and lighting Circuit in normal case. The products comply with IEC 60898 & GB10963-1999.

Pole: 1P, 2P, 3P, 4P
Frequency	50HZ/60HZ
Rated voltage	240/415V AC
Rated breaking capacity	6000A
Rated frame current	63A
Rated trip current(A)	2, 4, 6, 10, 20, 25, 32, 40, 50, 63A
No. of pole	1, 2, 3, 4
