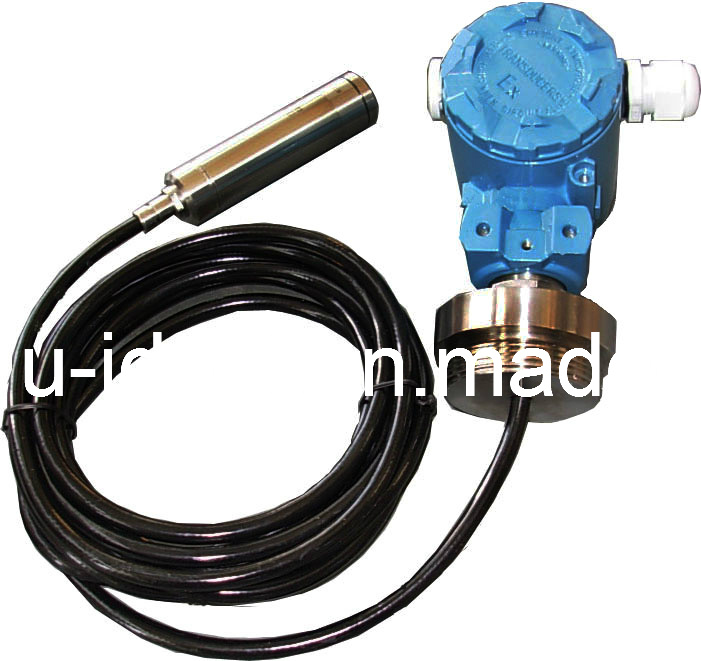

Cable Drop-in Type Hydrostatic Pressure Sensor
| Price: |
US $ 60/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,D/P,Paypal,Western Union |
| Prod Model: |
UI-P300 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Display: |
Digital |
| Function: |
Electric Signal-Controlled |
| Accuracy: |
0.5 |
| Indicating Pressure Reference: |
General Pressure Gauge |
| Application: |
Industrial |
| Structure: |
Fluid Column Pressure Gauge |
| Connection Type: |
Screw or Flange Connection |
| Measuring Range: |
Low-Pressure Gauge |
| Measuring Medium: |
Steam,Liquid,Gas. |
Product Description
Cable drop-in type hydrostatic pressure sensor, pressure transmitter, hydrostatic pressure testing
Key Specifications/Special Features:
Features:
Adapts high performance pressure core as sensitive unit
Reasonable industrial structures which are all stainless steel sealed
Amplifying circuit has been laser compensated which can assure measured data reliable
Electrical connection cable applies military anti-corrosion air-conduction cable, so back-pressure chamber directly connected with atmosphere
Can transmit measured pressure to 4 to 20mA standard current signal, combined with other instruments to achieve automatic control
Suitable for various industrial tank liquid measurements
Widely used in petroleum, chemical, textile, metallurgy, electric power, water conservancy, environment-protection, beer and ships tanks
Specifications:
Working temperature: 0 to 100° C
Accuracy class:
Class 0.1: ± 0.1% (basic error)
Class 0.3: ± 0.3% (basic error)
Class 0.5: ± 0.5% (basic error)
Hot zero drift: When condition temperature is out of working temperature range, transmitter's zero drift value can be not larger than 0.03%FS/° C
Hot sensitivity drift: With high accuracy, nice stability, sensor can realize temperature compensation at 0 to 65° C temperature and through circuit compensation, can eliminate effects which because of temperature drift
Insulation resistance: During defined temperature range, insulation resistance value between transmitter ends and ground can't be less than 20MΩ /250V
Explosion-proof performance:
Instrument conforms to Exia II CT4
Back cover
Front cover
Waterproof wire
Liquid level detector
Connection: 4 to 20mA
Primary Competitive Advantages:
Country of Origin China supplier
Experienced Staff 10year instrument experence
Price economic price
Product Features
Product Performance
Prompt Delivery
| Name | floating level transmitter |
| output | 2-wire 2~20mA, switching alarm, LCD, Hart optional |
| Load | 0~500 |
| Level range | H=0.1~30m(special assemble if longer than 6m) |
| Accuracy | A:+/-5mm, B: +/-10mm, C: +/-20mm |
| Fluid temperature | -20~150ºC |
| Electric Power | DC 24V |
|
| Model selection |
| UQK-B | floater level transmitter |
| Accuracy | A | 5mm |
| B | 10mm |
| C | 20mm |
| structure |
| 1 | float ball diameter:45mm. H1=40mm, H2=30mm |
| 2 | 76mm, H1=50mm, H2=40mm |
| 3 | 125mm, H1=80mm, H2=65mm |
| Insallation |
| F | flange |
|
| P | angle plate bracket |
|
| S | screw |
|
| A | adjustable screw is optional |
| Other function |
| P | pressure <0.6MPa |
| E | explosion-proof |
| S | Digital display |
