Product Details
Product Name:
High-precision Miniature Compression Force Sensors
Features:
1. High-precision Miniature Compression Force Sensors utilize strain gauge technology.
2. These force sensors offer high accuracy. They have non-linearity of 0.5%.
3. The force sensors are made of stainless steel and have strong compression bearing ability.
4. Many capacities are available and they can be modified or customized to meet requirements.
Applications:
High-precision Miniature Compression Force Sensors are mainly applied in force measurement in small space installation, such as feeling tester for keyboard switch, pressure measurement for hot and cold lamination machine, and grasping force measurement for robotic hands.
Capacity:
5, 10, 20, 50, 100, 200, 500, 1000,1500,2000kg
Technical Specifications:
| Rated Output | 1.0~1.5mV/V | Material | Stainless Steel |
| Zero Balance | ±2%F.S. | Insulation | ≥5000MΩ/100VDC |
| Non-linearity | 0.5%F.S. | Recommended Excitation | 5V |
| Hysteresis | 0.5%F.S. | Maximum Excitation | 10V |
| Repeatability | 0.5%F.S. | Compensated Temp Range | -10 ~ 60ºC |
| Creep(30min) | 0.5%F.S. | Operating Temp Range | -20 ~ 80ºC |
| Temp Effect on Output | 0.5%F.S./10ºC | Safe Load Limit | 120% |
| Temp Effect on Zero | 0.5%F.S./10ºC | Ultimate Load Limit | 150% |
| Input Impedance | 350 ± 5Ω | Cable Size | Φ2 ~ 3 × 2m |
| Output Impedance | 350 ± 5Ω | Wire Connection | Ex+ : Red; Ex- : Black;
Sig+ : Green; Sig- : White |
Our main products are micro force sensors, load cells, pressure sensors, control instrumentation and automation system supplies.
Our products can be applied in the traditional force measurement field, and also widely used in the industrial automation production line, and the new fields, i.e. metallurgy, etc. With our services and quality, we have earned a very high reputation in the domestic, and also our products are exported to the customers worldwide including Germany, Italy, the United States, Russia, Australia and other regions.
If you want to get more information,please feel free to contact me
Choose suitable load cell according to your application.
With the development of sensor technology, custom design is getting increasingly common. Customizable variables include:
Capacity
Rated output(mV,0-5V,0-10V,0-20mA,4-20mA)
Material(Al,alloy steel and stainless steel)
Dimensions
Electrical connection
Ingress protection class
Working temp.
Other parameters are crucial to your application.

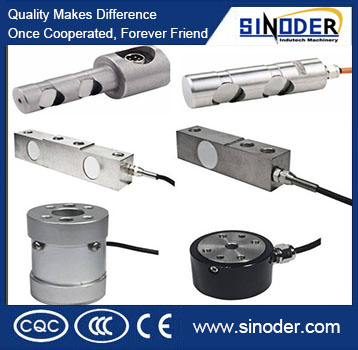

At SINODER,you can find universal products like:
Compression load cell
Tension compression load cell
Strain gauge load cell
Button load cell
Torque transducer
Force Sensor
Weight Load cell
SINODER is also an expert in customized force transducers like:
Load pins for overload protection
Bolt sensor for fastening force monitoring
And other tailor-made force sensors for auto industry,robotics,medical equipment,etc.
With experienced engineers in force sensor and load cell application area, SINODER knows exactly what you need after you talk to us.Being expert in strain gauge based load cell manufacturing technology and custom-made service, we are confident in providing the most suitable products to meet your applications perfectly.
Quality,we not only know its importance,but also act in the same way. Lifelong technical support starts the moment you contact us.
Send us an inquiry,we'll get back with solutions!
