Capacitive Fuel Oil Level Sensor for Fuel Oil Tank
| Price: |
US $ 100-125/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
2/Piece |
| Pay Type: |
L/C,T/T,D/P,Paypal,Money Gram |
Tosilon Capacitive Fuel Oil Level Sensor for Fuel Oil Tank (Ex Approved)Design and Manufacturing according to ATEX, CE StandardIntroduction
TOS-606 series Fuel Oil level Gauge is special designed for measuring level of all kinds of oil such as gasoline, diesel, hydraulic oil, etc. It applied in storage tank in rail, lorry, fuel tanks in all kinds of vehicles. It is also used to measure non-conductive and conductive media level with adverse working condition such as strong corrosion, high temperature, high toxic, explosion etc.
Based on radio frequency capacitance principle, adopted temography and dynamic analysis technology, the TOS-60 series Level Transmitter can calibrate automatically in different media without calibrating if the media is changed. It is able to get high accuracy 0.2% and have little temperature drift because of its temperature compensation.
Feature· 2- wires Electric Current Loop
· Measuring System is isolated from the current loop
· Check media dielectric constant and temperature change with tomography technology and calibrate automatically when media changed

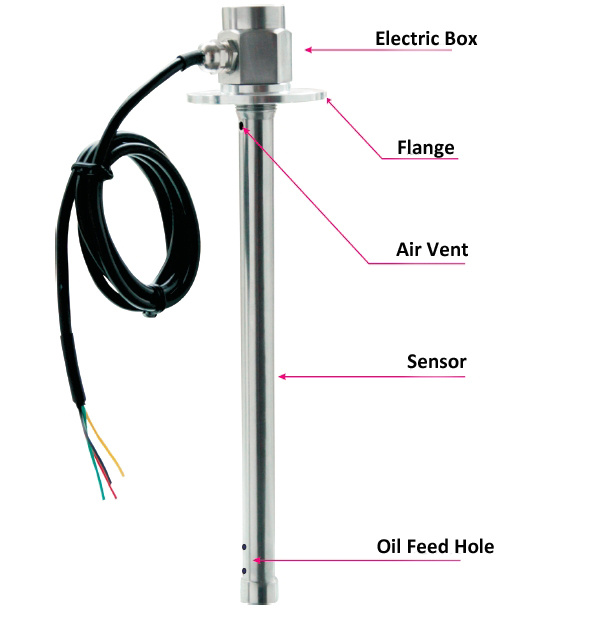

· High Accuracy and Stability.Outline Structure
General Technical Data (For details, please contact Tosilon)Measuring Range Accuracy
100~1400mm 0.5% F.S
Bearing Pressure (MPa) Media Tempt. (Degrees Celsius)
- 0. 1~0. 6 - 50~125
Output
4~20mA, 0~5V, 0~3.3V, via RS 485/232, CAN
Power Supply
10~80VDC or 5~30VDC
Process Connection
M27x1.5, flange DN25, as required
Probe Diameter Explosion-Proof Class
16mm ExiaIIC T6, ExdIIC T5 For more information, please contact Tosilon
Your Global Partner for Automation
www.tosilon.com
| Measuring Range | 100~1400mm |
| Acc. | 0.5% F.S |
| Bearing Pressure (MPa) | - 0. 1~0. 6 |
| Media Tempt. ( 0 C) | - 50~125 |
| Output | 4~20mA, 0~5V, 0~3.3V, via RS 485/232, CAN |
| Power Supply | 10~80VDC or 5~30VDC |
| Process Connection | M27x1.5, flange DN25, as required |
| Probe Diameter | Φ16 |
| Explosion-Proof Class | ExiaIIC T6, ExdIIC T5 |
| Prod Model: |
TOS |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Measuring Range: |
100~1400mm |
| Bearing Pressure (MPa): |
- 0. 1~0. 6 |
| Media Tempt. (Degrees Celsius): |
- 50~125 |
| Output: |
4~20mA, 0~5V, 0~3.3V, Via RS 485/232, Can |
| Power Supply: |
10~80VDC or 5~30VDC |
| Process Connection: |
M27X1.5, Flange Dn25, as Required |
| Probe Diameter: |
16mm |
| Explosion-Proof Class: |
Exiaiic T6, Exdiic T5 |
| Warranty: |
1 Year |
| Measurement Accuracy: |
±3mm |
