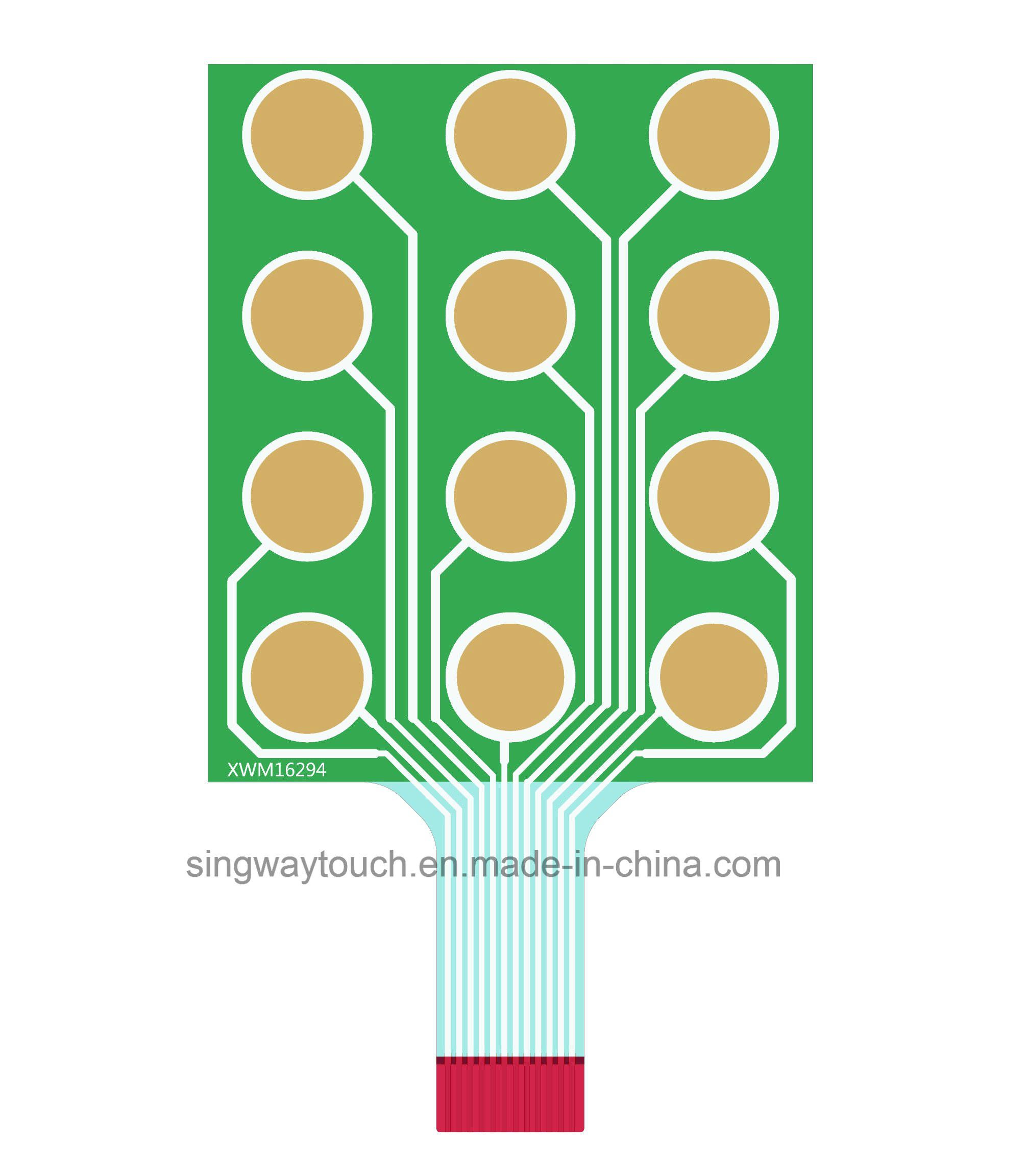

Capacitive Membrane Touch with Transparent Siliver
| Price: |
US $ 1.7/Piece |
| Min Order: |
500/Piece |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
Technical Parameters
1.Electrical| Maximun Circuit Rating: | 35V(DC),100mA,1W |
| Contavt Resistance: | 10Ω~ 500Ω |
| Insulation Resistance: | 100MΩ 100V |
| Dielectric: | 250VRms(50~60Hz 1min) |
| Contact Bounce: | < 5ms |
Life Expectancy: | Flat: ≥ 5million times |
| Tactile: ≥ 1 million times |
| Dura switch: ≥ 10million times |
2.Mechanical| Actuation Force: | Flat:57~284g(2~10oz)
Tactile: 170~397g(6~14oz) |
Switch Strok:
| Flat: 0.1~0.5mm
Tactile: 0.6~1.5mm |
3.Environment| Operation Temperature: | -40~+80 |
| Storage Temperature: | -40~+80 |
| Humidity: | 40,90%~95%,240hours |
| Vibration: | 20G,max.(10~200Hz,Mil-SLD-202,M204.Condition B) |

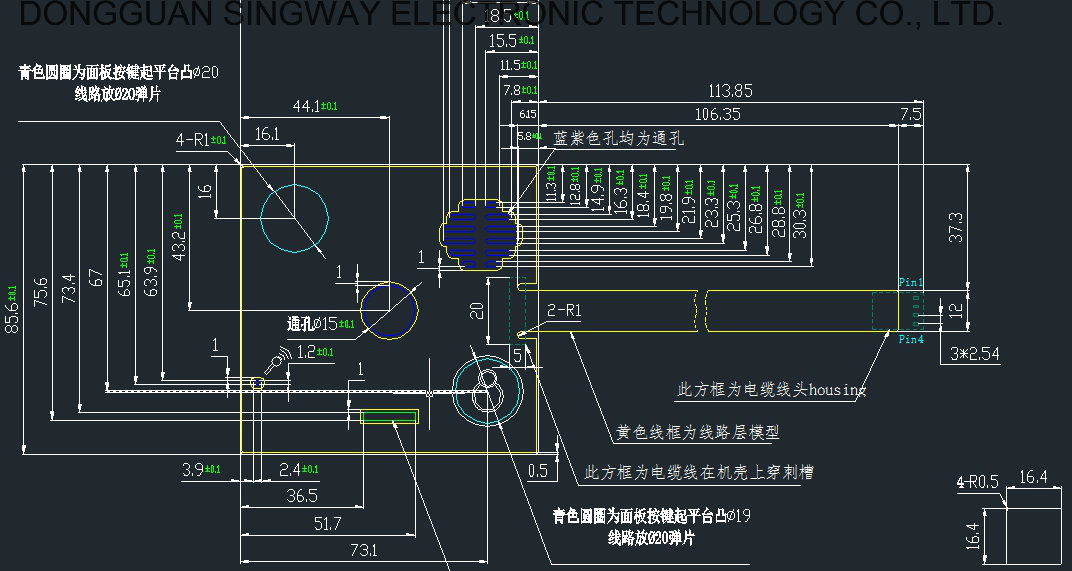

Produce Drawing:
Lead time: ★Lead-time for our company to create and submit counter-drawings + artwork for your approval:2-3 work days★Lead-time for our company to build tooling and ship the 5 samples for your approval:10 days★Lead-time for you have approved the 5 samples:2-3 weeks Shipping Details:1) Can Ship by express such as DHL, FEDEX, EMS, TNT, UPS, or by Sea, by air, it's depends on your requirement.(The express shipping time is about 3 to 7 working days.)2) The tracking number will be informed after 1 day the package delivered.3) We will follow the shipment after we sent it. If you not receive goods on time, please contact us immediately, we will assist to get the goods smoothly. Packaging Details:1) Wrap in air bubble film2) Put into foam box3) Packed with extra carton box, which make sure the goods safety in transportation.4) We accepted Customized package. Payment terms:1.First 3 dealings: payment term is Cash On Delivery(C.O.D.), we accept Bank T/T for payment. 2.After the first 3 dealings: payment term is 30 days. Our Service1. Whenever, we are pleased to get your order and any relevant requests.2. Ensure the products meet the quality standards.3. Ensure the goods will be delivered on time.4. Provide warm and friendly service and after-sale service. 5. We will reply you within 24 hours.6. OEM quality and original quality are acceptable.7. About the warranty, if you have any problem about the goods after received it, you can tell us on time. We will make sure to give you a satisfactory solution. 8. For more details and latest price, please feel free to contact us.
| Prod Model: |
XWM16138 |
| Overlay Material: |
F200 |
| FPC(mm): |
113.85 |
| Housing: |
4pin,2.54mm Pitch |
| Metal Dome: |
20mm |
| Type: |
Flexible |
| Material: |
PET |
| Application: |
Home Appliance |
| Structure: |
Pet+Metal Dome+Lower Circuit+Rear Adhesive+Housing |
| Contact Type: |
Round Embossing |
| Number Of Switch: |
2 |
| Detection Method: |
Electrical |
| Brand: |
Singway |
