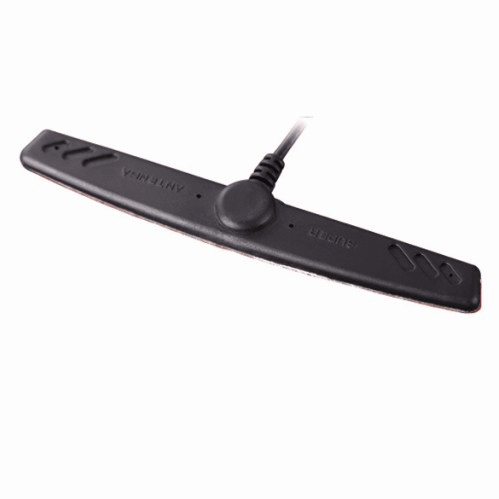

Car GSM Flexible Antenna Jcg108

Car GSM Flexible Antenna Jcg108
Price: US $ 0.95-1/Bag
Min Order: 100/Bag
Pay Type: T/T,Paypal
Prod Model: JCG108
Usage: Radar Antenna
Directionality: Omnidirectional Antenna
Operating Wavelength: 824~960/1710~2170MHz
Material: ABS
VSWR: <2
Dimensionality: 115*9*0.8mm

Product Description

Product information:
ItemSpecifications
AntennaFrequency Range824~960/1710~2170MHz
PolarizationLinear
Gain2.5dBi(Zenith)
V.S.W.R<2.0
Impendance50Ω
PCB Dimension115*9*0.8mm
Mechanical CableRG174
ConnectorSMA or others
Radome MaterialEVA
Mounting MethodAdhesive
EnvironmentalOperating Temperature -40ºC~+85ºC
Relative HumidityUp to 95%
Ingress ProtectionIP67
Vibration10 to 55Hz with 1.5mm amplitude 2hours
Environmentally FriendlyROHS Compliant


OUR  CUSTOMERS:


CERTIFICATE:

Electric-driving technology is a China local expert in electric motor industry, which focus on energy saving engineering of electric motor and professional solutions providing of motor manufacturing machine and equipment.

What we can do for your success?

1. Supply you our competitive products in terms of quality and cost

2. Product development as per your requirement with speed and low cost

3. Production line build up in different country

4. Product technical consulting

Business scope:

Power tool and motor, BLDC Motor, lithium battery and application, Electric motor production line machinie, Solar system and wind generator, Automotive DC motor, Garden facility, hand tool, agriculture facility

Our company is located in Hangzhou city, It takes 1 hr by train from Shanghai to hangzhou city.

Our customers are worldwide such as Valeo, Bosch, Makita and so on. We are looking forward to being your business partner and do our best for your success.
