| Prod Model: |
SCB |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Item: |

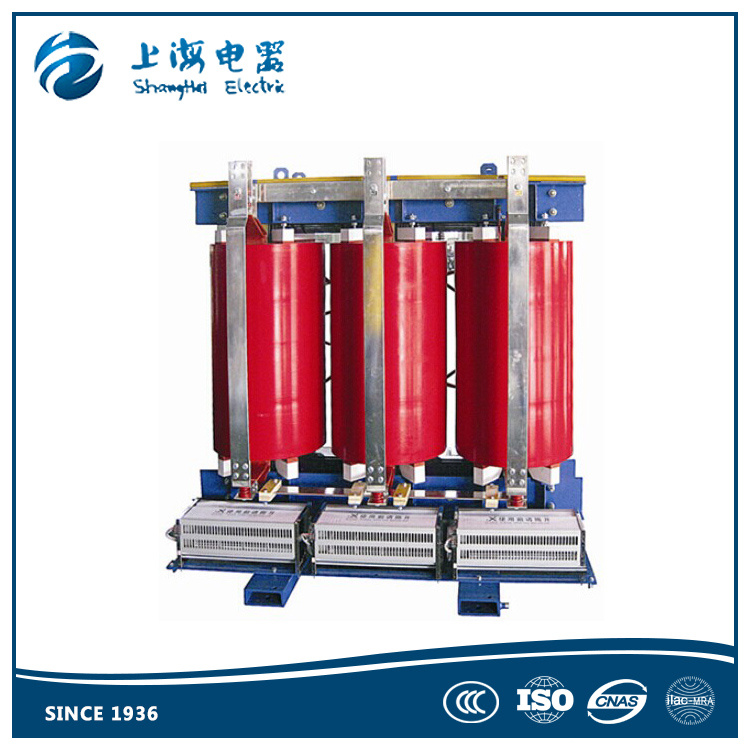

Cast Resin Dry Type Three Phase Distribution Trans |
| Application: |
Power |
| Phase: |
Three |
| Coil: |
Core-type Transformer |
| Cooling Method: |
Dry-type Transformer |
| Winding Type: |
Two-winding Transformer |
| Frequency Characteristics: |
50-60Hz |
| Brand: |
Shanghai Electric |
Product Description
Features
Low loss, compact and light weight, low noise level,clamp-proof,anti-fouling,high mechanical strength, flame resisting, strong overload ability and low partial discharge quality,they are application to power transmission and distribution system,hotel,restaurant,commercial building,stadiums,chemical plants,stations,aiports,offshore drilling platforms,especially to heavy load centers and places with special fire protection requirements.
Type
| Voltage combination | Vector group | Insulation level | Loss(W) | Imp voltage
% | No load current | Noise
(db)A | Dimension
(L*W*H)
mm | Weight
(kg) |
| Primary | Tapping range | Secondary | No Load loss | Full
load loss |
| SC(B)10-30/10 | 6
6.3
6.6
10
10.5
11
13.2
17.5
20
24
33
35
40.5
| ±2x2.5% | 0.4 or other | Yyn0 or Dyn11 | LI75AC35
LIOAC3 | 190 | 700 | 4.0 | 2.2 | 43 | 680*400*686 | 300 |
| SC(B)10-50/10 | 270 | 990 | 2.0 | 43 | 690*400*686 | 360 |
| SC(B)10-80/10 | 360 | 1370 | 1.8 | 43 | 730*450*796 | 500 |
| SC(B)10-100/10 | 400 | 1570 | 1.8 | 44 | 730*500*816 | 600 |
| SC(B)10-125/10 | 470 | 1840 | 1.6 | 44 | 780*600*950 | 700 |
| SC(B)10-160/10 | 540 | 2120 | 1.4 | 44 | 950*650*1124 | 850 |
| SC(B)10-200/10 | 620 | 2520 | 1.4 | 45 | 990*650*1164 | 950 |
| SC(B)10-250/10 | 720 | 2750 | 1.4 | 45 | 1020*650*1207 | 1100 |
| SC(B)10-315/10 | 880 | 3460 | 1.2 | 47 | 1050*750*1320 | 1250 |
| SC(B)10-400/10 | 970 | 3980 | 1.2 | 48 | 1100*800*1450 | 1550 |
| SC(B)10-500/10 | 1160 | 4880 | 1.2 | 48 | 1140*800*1430 | 1850 |
| SC(B)10-630/10 | 1340 | 5870 | 1.0 | 50 | 1250*800*1500 | 1900 |
| SC(B)10-800/10 | 1520 | 6950 | 6.0 | 1.0 | 52 | 1330*800*1540 | 2200 |
| SC(B)10-1000/10 | 1760 | 8120 | 0.8 | 54 | 1400*960*1640 | 2750 |
| SC(B)10-1250/10 | 2090 | 9690 | 0.8 | 54 | 1450*960*1690 | 3300 |
| SC(B)10-1600/10 | 2450 | 11730 | 0.8 | 56 | 1560*960*1930 | 4000 |
| SC(B)10-2000/10 | 3320 | 14450 | 0.6 | 57 | 1680*960*1930 | 4800 |
| SC(B)10-2500/10 | 4000 | 17170 | 0.6 | 57 | 1720*1010*1950 | 5500 |
Shanghai Electric Group Co., Ltd(Shanghai Electric) since 1936.
Members of goverment mechanical ministry
Key enterprises of Shanghai
We are one of the earliest manufacturer of electrical equipment in China
We used cooperate with German Stahl, Siemens and Mannesmann, American Westinghouse, Timage, turbine air systems, Wyman-Gordon forgings, France Schneider, Italian Dalmine, ABB Switzerland, Spain Tubacex, Japan Mitsubishi etc famous international company
Our company was ISO9001/ISO14001/OHSAS18001 approval
Group has sucess project for Qinshan nuclear power plant, the YANGZI RIVER project, Pudong International Airport, Baosteel Group, Shengli Oilfield, the Oriental TV Tower, Nepal conference building, Iran subway, Pakistan Chashma nuclear power plant, sugar mills in Malaysia, Royal Palace of Thailand, and other domestic and foreign key projects supporting.
After 70 years of development, group have completely R&D, production, sales, contracting, engineering branch
Covering power transmission and distribution equipment manufacturing, environmental protection and energy saving products manufacturing, power generation equipment engineering contracting, import and export trade, bio medical industry of 5 big pillar, the camp pin network throughout the world more than 30 countries and regions, the group company (including member enterprise with total assets of 11.2 billion yuan, the number of employees more than 13000 people, the total output value in 2015 reached 26.5 billion yuan.
We will be a new concept, the success of the performance, solid strength, good reputation for you to build a boutique project!
