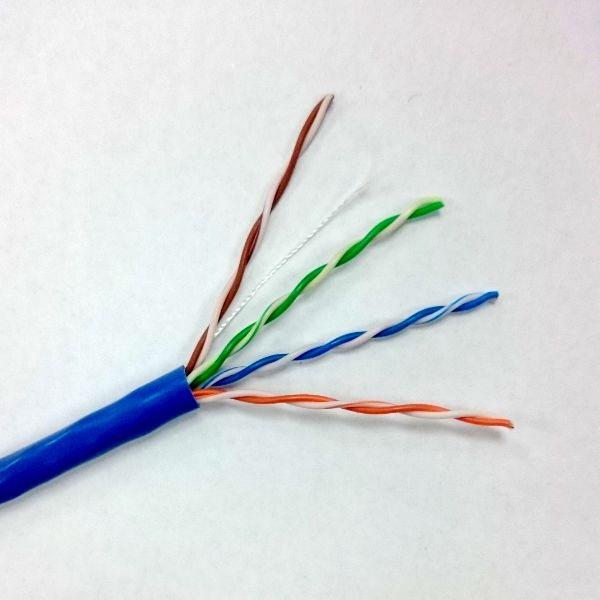

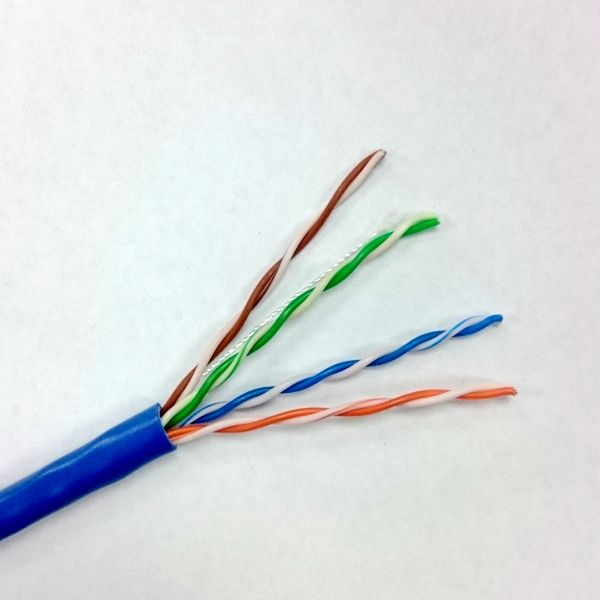

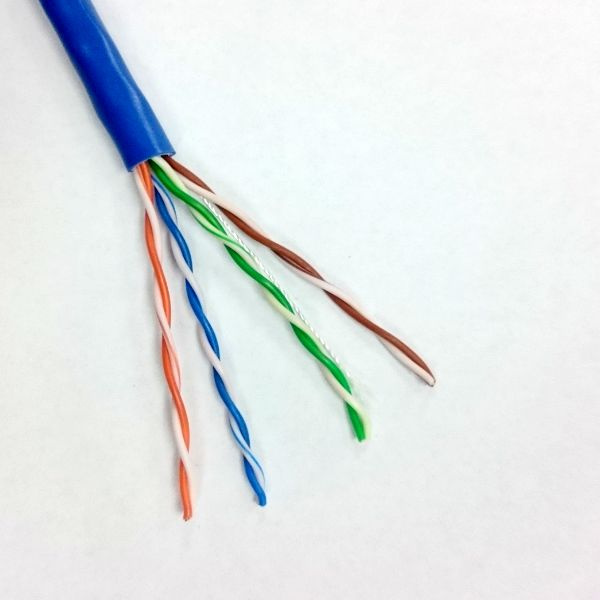

Cat 5e UTP Network Cable 24AWG 1000FT solid copper (ERS-1551250)Indoor Cat 5e UTP cable
NO:ERS-1551250
Execution standard
UL758,UL1581,UL444,ANSI/TIA/EIA-568,CSAC22.2,ISO/IEC11801,YD/T1019-2001
Product Feature
Technical parameters Beyond the requirements of cat 5e transmission standard
Adopt import HDPE insulating materials
The insulating material consistency support lower propagation delay deviation
Small diameter size,reduce the twisting in the installation
Product application:
Integrated wiring system
Support data,voice,video signal
Support 10Base-T,100Base-TX,1000Base-TX
100Base-VG-ANYLAN,155Mbps ATM,622Mbps ATM,1000Base-T etc.
Datasheet
Electrical part
ITEM | Parameter |
Capacity | Nom.16.5 pf/ft |
Rebroadcast speed | Nom.75% |
Operation TEM. | -20ºC--80ºC |
DC resistance | Max.91.8/km at 20ºC |
Characteristic impedance | Nom.impedance 100±15 |
Mechanical property
ITEM | Parameter |
Fire rating | CM |
Conductor Spec(AWG) | 24 |
Conductor Spec(NO/mm) | 0.505±0.005mm |
Conductor material | Oxygen-free copper(RoHS) |
Insulation materials | HDPE 3364 |
Sheath material | PVC 80ºC 45P RoHS |
Cable diameter | 5.3±0.1mm |
Minimum bend radius | 8*Outer diameter |
Order information

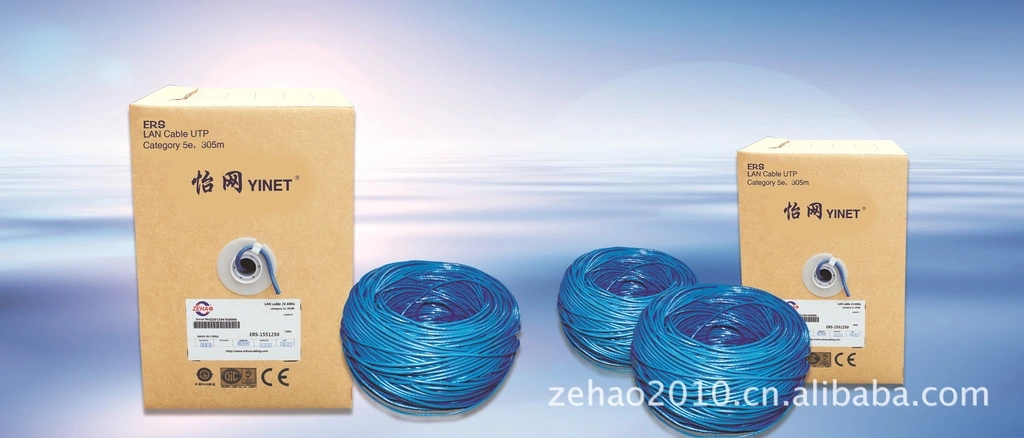

Cat 5e indoor UTP cable NO:ERS-1551250,305m/box Sheath color: blue
For Reference
Cat 5e STP transmission performance
Parameter | Typical measurements |
Frequency(MHz) | 1 | 4 | 10 | 16 | 20 | 31.25 | 62.5 | 100 |
Attenuation(dB/100m) | 2 | 3.6 | 5.8 | 7.5 | 8.3 | 13 | 15.2 | 18.6 |
NEXT (dB) | 75 | 70 | 65 | 63 | 59 | 18.5 | 47 | 44 |
PS NEXT(dB) | 73 | 68 | 63 | 61 | 57 | 26 | 45 | 42 |
ACR(dB) | 73.2 | 66.4 | 59.4 | 55.5 | 50.7 | 32.5 | 31.8 | 25.4 |
PS ACR(dB) | 71.2 | 64.4 | 57.4 | 53.5 | 48.7 | 39 | 29.8 | 23.4 |
ELFEXT(dB) | 84 | 69 | 63 | 60 | 55 | 52 | 47 | 41 |
PS ELFEXT(dB) | 82 | 67 | 61 | 58 | 53 | 65 | 45 | 39 |
Return loss(dB) | 27 | 28.1 | 28.7 | 29.1 | 28.5 | 27.6 | 28.2 | 28 |
Cat 5e UTP transmission performance
Parameter | Typical measurements |
Frequency(MHz) | 1 | 4 | 10 | 16 | 20 | 31.25 | 62.5 | 100 |
Attenuation(dB/100m) | 2 | 3.7 | 6 | 7.8 | 8.7 | 10.9 | 15.3 | 19.8 |
NEXT (dB) | 71 | 61 | 55 | 52 | 51 | 48 | 43 | 40 |
PS NEXT(dB) | 69 | 59 | 53 | 50 | 49 | 46 | 41 | 38 |
ACR(dB) | 69 | 58 | 49 | 44 | 42 | 37 | 28 | 20 |
PS ACR(dB) | 67 | 55 | 47 | 42 | 40 | 35 | 26 | 18 |
ELFEXT(dB) | 76 | 68 | 57 | 52 | 48 | 44 | 38 | 34 |
PS ELFEXT(dB) | 74 | 68 | 55 | 50 | 46 | 42 | 36 | 32 |
Return loss(dB) | 26 | 29 | 30.8 | 29.7 | 30.1 | 30.1 | 28 | 27 |
Cat 6 STP transmission performance
Parameter | Typical measurements |
Frequency(MHz) | 1 | 4 | 10 | 16 | 20 | 31.25 | 62.5 | 100 | 155 | 250 |
Attenuation(dB/100m) | 2 | 3.8 | 5.8 | 7.2 | 8 | 9.9 | 14.5 | 18.4 | 24.2 | 29.5 |
NEXT (dB) | 85 | 80 | 79 | 75 | 70 | 69 | 60 | 55 | 52 | 51 |
PS NEXT(dB) | 82 | 78 | 77 | 72 | 68 | 65 | 58 | 53 | 50 | 49 |
ACR(dB) | 80 | 72 | 65 | 60 | 57 | 51 | 42 | 35 | 27 | 18 |
PS ACR(dB) | 78 | 70 | 62 | 57 | 55 | 48 | 39 | 32 | 27 | 18 |
ELFEXT(dB) | 88 | 80 | 69 | 62 | 58 | 53 | 47 | 42 | 38 | 34 |
PS ELFEXT(dB) | 86 | 78 | 67 | 59 | 55 | 51 | 44 | 39 | 36 | 31 |
Return loss(dB) | 28 | 35 | 39 | 41 | 42 | 45 | 40 | 56 | 38 | 39 |
Cat 6 UTP transmission performance
Parameter | Typical measurements |
Frequency(MHz) | 1 | 4 | 10 | 16 | 20 | 31.25 | 62.5 | 100 | 155 | 250 |
Attenuation(dB/100m) | 2 | 3.7 | 5.7 | 7.2 | 8 | 9.9 | 15 | 19 | 24.3 | 30.5 |
NEXT (dB) | 80 | 73 | 67 | 64 | 62 | 57 | 53 | 48 | 46 | 45 |
PS NEXT(dB) | 78 | 71 | 65 | 62 | 59 | 55 | 51 | 46 | 44 | 40 |
ACR(dB) | 78 | 69 | 61 | 57 | 53 | 47 | 39 | 30 | 23 | 13 |
PS ACR(dB) | 76 | 67 | 59 | 55 | 51 | 45 | 37 | 28 | 21 | 11 |
ELFEXT(dB) | 86 | 78 | 67 | 60 | 56 | 53 | 46 | 40 | 36 | 32 |
PS ELFEXT(dB) | 84 | 76 | 65 | 58 | 54 | 51 | 44 | 38 | 34 | 30 |
Return loss(dB) | 27 | 27 | 29.8 | 31.7 | 30.7 | 29 | 28.8 | 29.8 | 28 | 25 |
Cat 6A STP transmission performance
Parameter | Typical measurements |
Frequency(MHz) | 1 | 4 | 10 | 16 | 20 | 31.25 | 62.5 | 100 | 155 | 250 | 300 | 500 |
Attenuation(dB/100m) | 2 | 3.7 | 5.8 | 7.3 | 8 | 9.9 | 14.3 | 18.4 | 24.2 | 29.6 | 33.5 | 42.5 |
NEXT (dB) | 96 | 96 | 99 | 96 | 93 | 95 | 95 | 95 | 90 | 90 | 84 | 75 |
PS NEXT(dB) | 94 | 93 | 92 | 91 | 90 | 88 | 87 | 86 | 86 | 85 | 84 | 73 |
ACR(dB) | 93 | 91 | 89 | 88 | 87 | 85 | 81 | 82 | 81 | 80 | 50 | 38 |
PS ACR(dB) | 89 | 87 | 85 | 84 | 83 | 82 | 81 | 80 | 80 | 80 | 48 | 36 |
ELFEXT(dB) | 95 | 92 | 93 | 92 | 89 | 85 | 83 | 80 | 76 | 73 | 57 | 52 |
PS ELFEXT(dB) | 93 | 92 | 90 | 89 | 86 | 83 | 84 | 80 | 78 | 75 | 54 | 50 |
Return loss(dB) | 25 | 27 | 24 | 22 | 20 | 29 | 31 | 26 | 25 | 21 | 23 | 21 |
Cat 6A UTP transmission performance
Parameter | Typical measurements |
Frequency(MHz) | 1 | 4 | 10 | 16 | 20 | 31.25 | 62.5 | 100 | 155 | 250 | 300 | 500 |
Attenuation(dB/100m) | 2 | 3.7 | 5.8 | 7.3 | 8 | 9.9 | 15 | 19 | 24.3 | 30.6 | 35 | 44.5 |
NEXT (dB) | 91 | 89 | 87 | 85 | 29.1 | 83 | 88 | 88 | 84 | 84 | 79 | 74 |
PS NEXT(dB) | 90 | 86 | 80 | 81 | 81 | 78 | 80 | 79 | 80 | 76 | 74 | 71 |
ACR(dB) | 91 | 88 | 85 | 85 | 83 | 81 | 78 | 77 | 76 | 74 | 47 | 36 |
PS ACR(dB) | 87 | 84 | 82 | 82 | 79 | 79 | 79 | 76 | 74 | 73 | 46 | 34 |
ELFEXT(dB) | 93 | 90 | 91 | 90 | 87 | 85 | 82 | 78 | 74 | 71 | 55 | 50 |
PS ELFEXT(dB) | 91 | 90 | 88 | 88 | 85 | 83 | 84 | 79 | 76 | 74 | 52 | 48 |
Return loss(dB) | 23 | 25 | 22 | 21 | 19 | 29 | 31 | 25 | 23 | 20 | 22 | 20 |
