CAT5E 350 MHz UTP 24AWG, 8C Solid Bare Copper fluke test 1000ft Ethernet Cable
Specifications:
| Bare Copper Conductor | AWG | 24 |
| Construction | 1/0.51mm±0.01mm |
| Insulation, PE | Average thickness | 0.21±0.03mm |
| Min. point thickness | 0.17mm |
| Insulation diameter | 0.93±0.03mm |

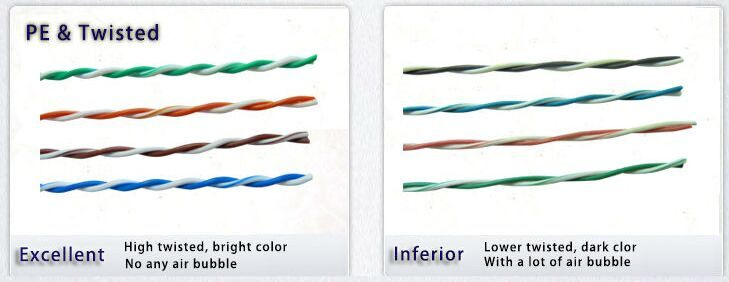

| Core twist | Lay length (Ref.) | 24, 11, 17, 14 mm |
| Pair colors | Blue/White/Blue Orange/White/Orange Green/White/Green Brown/White/Brown | |
| Cabling | Lay length (Ref.) | 140mm |
| Jacket, PVC | Average thickness | 0.50±0.05mm |
| Min. point thickness | 0.43mm |
| Outer diameter | 5.1±0.2mm |
Product Description:
Cat5e UTP (unshielded twisted pair) BC (Copper Clad Aluminum) 24 AWG bulk ethernet cable in easy to use pull box is ideal for your network installation. Case contains 1000 ft of wire with orange jacket. This unshielded cable comes in its own spool box and is connector free, giving the user the freedom to customize the length, wiring, and application.Future-proof your network for 10-Gigabit Ethernet (backwards compatible with any existing Fast Ethernet and Gigabit Ethernet)
Specification:
- 4-pair unshielded twisted pair
- 1000 FT Cat5e
- 24 AWG Solid BC (Copper Clad Aluminum)
- Communicate rate: 100 MHZ
- Insulated Resistance: ≥5000MΩ.km at 20°C
- Working temperatures: -20 to 75°C
- Impedance: 9.38 Ω /100M

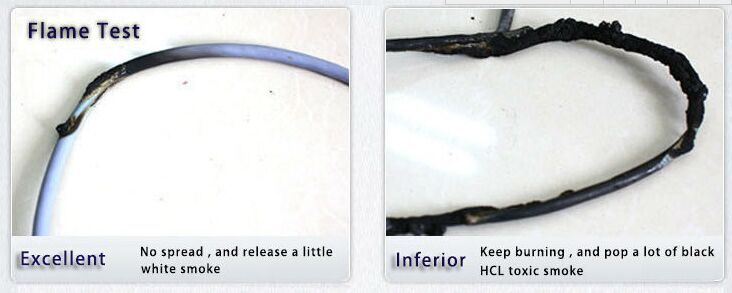

- Reference standard: YD/T 1019-2013; UL444; UL1581;TIA/EIA-568B;IEC 60332-1 ; ISO/IEC11801; (Performance and superior to the above standards)
APPLICATIONS:
- For indoor use
- Patch cables
- Crossover Cables
- Other network installations
Widely apply to network wiring structure and transmission media,such as audio,video,digital communication,message and so on.

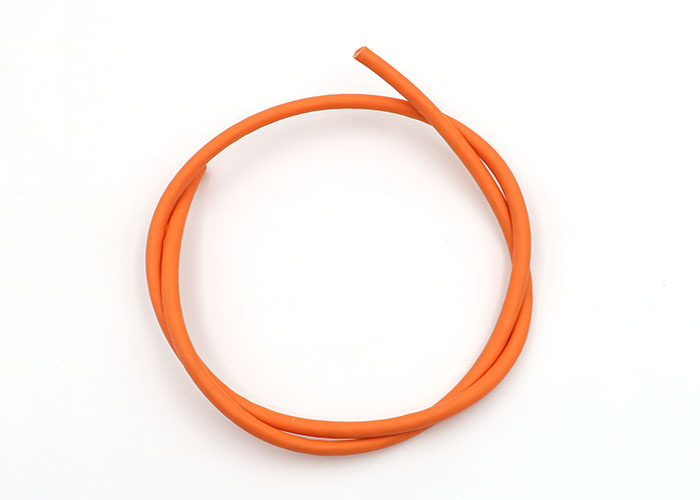

Sample:
Competitive Advantage:
1. OEM
2. Medium-sized enterprises, more cost-efficient and less administration fee
3. After-sales service 24/7
4. Offer customized service&production packing service
We can produce network cable as per customer's request.| Frequency MHz | Impedance ohm | RL | Attenuation dB/100m | Next Db/100m | ELFEXT dB/100m | PS NEXT Db/100m | PS FLFEXT Db/100M | Propagation speed m/s |
| db |
| 1 | 100±15 | 20 | 2 | 65.3 | 63.8 | 62.3 | 60.8 | 0.65C |
| 4 | 23 | 4.1 | 56.3 | 51.7 | 53.3 | 48.7 |
| 8 | 25 | 5.8 | 51.8 | 45.7 | 48.8 | 42.7 |
| 10 | 25 | 6.5 | 50.3 | 43.8 | 47.3 | 40.8 |
| 16 | 25 | 8.2 | 47.3 | 39.7 | 44.2 | 36.7 |
| 20 | 25 | 9.3 | 48.5 | 37.7 | 42.8 | 34.7 |
| 25 | 24 | 10.4 | 44.3 | 35.8 | 41.3 | 32.8 |
| 31.25 | 24 | 11.6 | 42.9 | 33.9 | 39.9 | 30.9 |
| 62.5 | 22 | 17 | 38.4 | 27.8 | 35.4 | 24.8 |
| 100 | 20 | 22 | 35.3 | 23.8 | 32.3 | 20.8 |
| 155 | 10±18 | 19 | 28.1 | 33 | 20 | 29 | 17 |
| 200 | 19 | 32.4 | 31 | 18 | 28 | 15 |
| 310 | 100±22 | 18 | 41.8 | 28 | 14 | 25 | 11 |
| 350 | 17 | 44.9 | 27 | 13 | 24 | 10
|
