******Basic Info.******
***Quick Detail***
Basic specifications |
Model No. | CBB60 Capacitor |

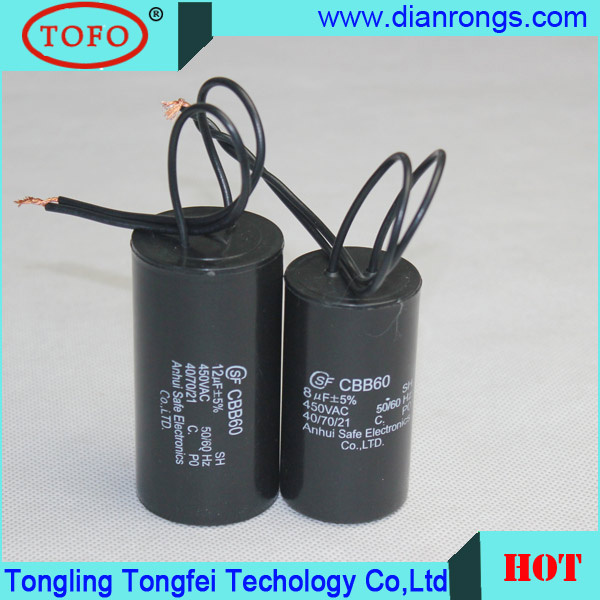

Type | cbb60 250VAC 100UF Plastic Running Capacitor |
Structure | Single Film Capacitor |
Capacitance | 1~60uF |
Capacitance Tolerance | ±5% |
Rated Voltage | 200~500VAC |
Manufacturing Material | Polypropylene |
Electrolyte | Polypropylene Film |
Class of Operation | Class B,Class C |
Operating Temperature | 40/70/21 or 40/85/21 |
Class of Safety Protection | P0/P2 |
Package Type | Export Carton |
Production Capacity | 500,000pcs/Month |
MOQ | 1 pcs |
Size | Available on Request (Customized Capacitor) |
***The Composite Capacitor can be also customized producing according to our customer's request.
***Product Description***
The capacitor takes heavy-edge metallized Al/Zn PP film as electrodes and dielectric. Its components are sealed with flame-retardant epoxy resin.It has cylindrical outline with high moisture resistance and stability.
***Technical Specifications***
Reference standards | GB/T 3667.1 ( IEC60252-1 ) |
Climatic category | 40/70/21,40/85/21 |
Class of operation | Class B(10000h) Class C(3000h) |
Class of safety protection | P0/P2 |
Voltage range | 200~500VAC |
Capacitance range | 1~60μF |
Capacitance tolerance | ±5% |
Dissipation factor | 20×10-4(100Hz,20ºC) |
Test voltage terminal to terminal UTT | 2 Un for 2 seconds |
Test voltage terminal to case UTC | (2Un+1000)VAC or 2000VAC-50Hz for 60 seconds |
Insulation Resistance | ≥3000MΩ. μF(100Hz,20ºC,1min) |
***Application***
CBB60 capacitor broadly applied to starting and running of AC single-phase motors at 50Hz(60Hz) frequency for washing machine and high efficiency compressors of refrigerators etc.
******Additional Info.******
Company Name: Tongling Tongfei Technology Co.,Ltd
Trademark: TOFO
Standard: GB/T 3667.1 or IEC 60252-1
Origin: China(Mainland)
Export Market: Global
***Appearance & Application***
Installation Type: Through Hole
Shape: Cylinder
Capacitor Case: Plastic
Lead out: Pin or Wire
Application: CBB60 Capacitor applied to General purpose,AC motor,Power,Lighting,Air Conditioner,High voltage,Fan,Automobile,etc.
***Packing&Delivery***
Packing: Export Standard Carton Packing for Capacitors
Delivery Detail: 7~15 days after payment
Port: Shanghai or Ningbo
***Dimensions(mm)***
Specifications | Routine | With screws or pins |
450VAC | 250VAC | 450VAC | 250VAC |
1μF | Φ26×52 | Φ26×52 | Φ30×52 | Φ30×52 |
2μF | Φ26×52 | Φ26×52 | Φ30×52 | Φ30×52 |
2.5μF | Φ26×52 | Φ26×52 | Φ30×52 | Φ30×52 |
3μF | Φ26×52 | Φ26×52 | Φ30×52 | Φ30×52 |
3.5μF | Φ26×52 | Φ26×52 | Φ30×59 | Φ30×52 |
4μF | Φ28.5×55 | Φ26×52 | Φ35×62 | Φ30×52 |
4.5μF | Φ28.5×55 | Φ26×52 | Φ35×62 | Φ30×52 |
5μF | Φ28.5×55 | Φ26×52 | Φ35×62 | Φ30×52 |
5.5μF | Φ34×62 | Φ26×52 | Φ35×62 | Φ30×52 |
6μF | Φ34×62 | Φ26×52 | Φ35×62 | Φ30×52 |
6.5μF | Φ34×62 | Φ26×52 | Φ35×62 | Φ30×52 |
7μF | Φ34×62 | Φ26×52 | Φ35×62 | Φ30×52 |
8μF | Φ34×62 | Φ26×52 | Φ35×62 | Φ30×52 |
9μF | Φ34×62 | Φ26×52 | Φ35×62 | Φ30×52 |
10μF | Φ34×62 | Φ26×52 | Φ35×72 | Φ30×52 |
12μF | Φ37×73 | Φ26×52 | Φ35×72 | Φ30×61 |
14μF | Φ37×73 | Φ34×62 | Φ40×72 | Φ30×61 |
15μF | Φ37×73 | Φ34×62 | Φ40×72 | Φ30×61 |
16μF | Φ37×73 | Φ34×62 | Φ40×72 | Φ30×61 |
18μF | Φ37×73 | Φ34×62 | Φ40×72 | Φ35×67 |
20μF | Φ40×70 | Φ34×62 | Φ40×72 | Φ35×67 |
25μF | Φ42×80 | Φ42×62 | Φ40×72 | Φ35×67 |
30μF | Φ42×90 | Φ40×72 | Φ45×95 | Φ40×72 |
35μF | Φ45×90 | Φ40×72 | Φ45×95 | Φ40×72 |
40μF | Φ50×100 | Φ42×90 | Φ50×110 | Φ40×97 |
45μF | Φ50×100 | Φ42×90 | Φ50×110 | Φ40×97 |
50μF | Φ50×100 | Φ42×90 | Φ50×120 | Φ40×97 |
60μF | Φ50×115 | Φ42×90 | Φ50×120 | Φ40×97 |
* Note:Other specifications,size and terminal outside table are negotiable.
