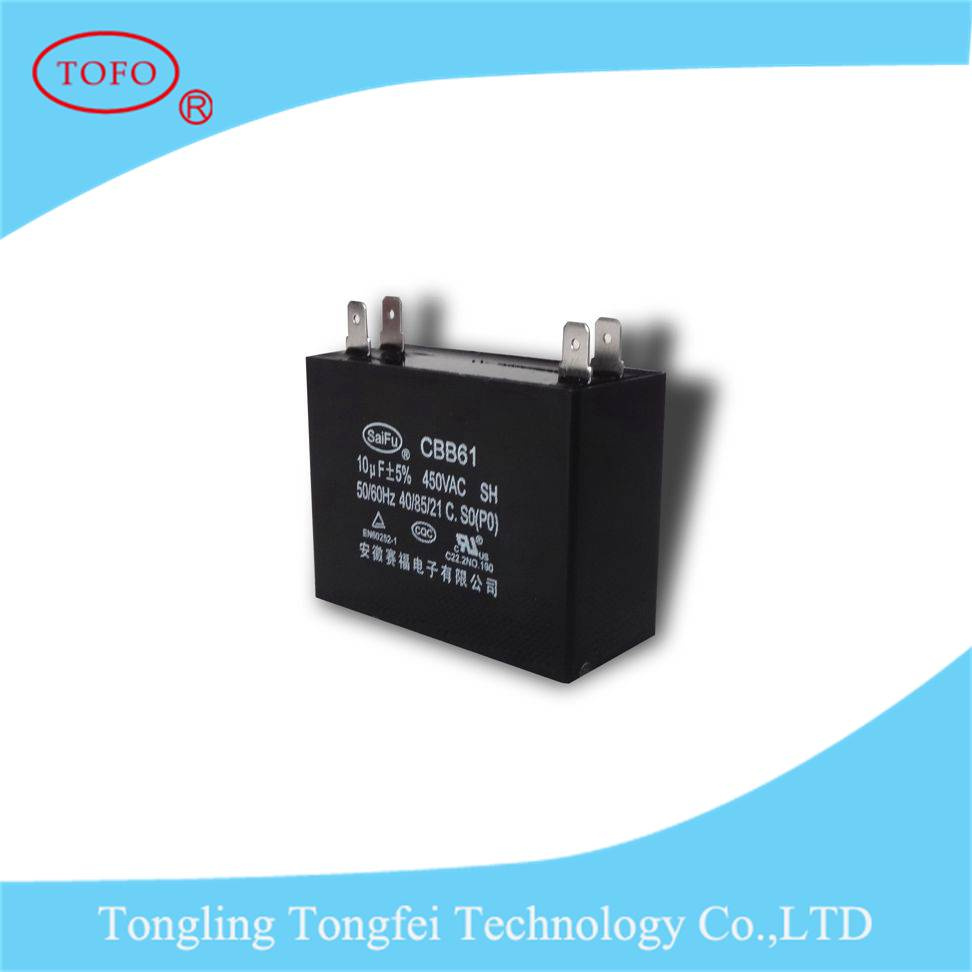

Cbb61 Fan Capacitor 440V 450VAC Polypropylene Film Capacitor
Price: |
US $ 0.09-1.1/Piece |
Trade Terms: |
FOB,CFR,CIF |
Min Order: |
1/Piece |
Pay Type: |
L/C,T/T,Western Union,Paypal |
Prod Model: |
CBB65 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Model No.: |
Cbb61 Capacitor |
Rated Voltage: |
200~500VAC |
Operating Temperature: |
40/70/21 or 40/85/21 |
Capacitance Tolerance: |
±5% |
Class Of Operation: |
Class B, Class C |
Class Of Safety Protection: |
P0/P2 |
MOQ: |
1 PCS |
Shape: |
Squareness |
Capacitor Case: |
Plastic |
Lead Out: |
Pin or Wire |
Type: |
Polypropylene Capacitor |
Application: |
Water Pump |
Package Type: |
Surface Mount |
Capacitance: |
1~35UF |
Manufacturing Material: |
Plastic Case and Capacitor Mpp Film |
Electrolyte: |
Film Capacitor |
Usage: |
Fan, AC Motor, Air Conditioner |
Filter: |
Film Capacitor |
Product Description
7×24 hours Sincerely Service for You Basic Info.Basic specifications |
Model No. | CBB61 Capacitor |
Type | Cbb61 Fan Capacitor 440v 450VAC Polypropylene Film Capacitor |
Capacitance | 1~35uF |
Structure | Single Film Capacitor |
Manufacturing Material | Polypropylene |
Electrolyte | Polypropylene Film |
Rated Voltage | 200~500VAC |
Operating Temperature | 40/70/21 or 40/85/21 |
Capacitance Tolerance | ±5% |
Class of Operation | Class B,Class C |
Class of Safety Protection | P0/P2 |
Package Type | Export Carton for CBB61 Fan Capacitor |
Production Capacity | 500,000pcs/Month |
MOQ | 1 pcs |
Size | Available on Request (Customized Fan Capacitor) |
Product Description450VAC 5UF Cbb61 Fan Capacitor Polypropylene Capacitor takes heavy-edge metallized Al/Zn film as electrodes and dielectric.It is impregnated with flame-retardant epoxy resin and canned in cubic ABS or PBT plastic case with characteristics of small size,reliable performance and long endurance.
Technical Specifications:Reference standards | GB/T 3667.1 ( IEC60252-1 ) |
Climatic category | 40/70/21,40/85/21 |
Class of operation | Class B(10000h) Class C(3000h) |
Class of safety protection | P0/P2 |
Voltage range | 200~500VAC |
Capacitance range | 1~35μF |
Capacitance tolerance | ±5% |
Dissipation factor | 20×10-4(100Hz,20ºC) |
Test voltage terminal to terminal UTT | 2 Un for 2 seconds |
Test voltage terminal to case UTC | (2Un+1000)VAC or 2000VAC-50Hz for 60 seconds |
Insulation Resistance | ≥3000MΩ. μF(100Hz,20ºC,1min) |
Application:The CBB61 fan capacitor broadly applied to starting and running of AC single-phase motors at 50Hz(60Hz) frequency for air conditioners' fans,electric fans and exhaust fans etc.at comparatively low rated power.Additional Info.Company Name: Tongling Tongfei Technology Co.,LtdTrademark: TOFOStandard: GB/T 3667.1 or IEC 60252-1Origin: China(Mainland)Export Market: GlobalAppearance & ApplicationShape: SquarenessCapacitor Case: PlasticLead out: Pin or WireInstallation Type: Through HoleApplication: CBB61 capacitor applied to General purpose,AC motor,Power,Lighting,Air Conditioner,High voltage,Fan,Automobile.Packing&DeliveryPacking: Export Stand Carton Packing for CapacitorsDelivery Detail: 7~15 days after paymentPort: Shanghai or Ningbo
Our AdvantagesLeadingTechnology:Have a number of invention patentsStable Quality:The company has the world's most advanced production equipment, and implement ISO9001 standard management.Reasonable Price:Executive "Industrial products 10% Profit in the first"Cordial Service:7*24 hours online, prompt reply and timely delivery Products Dimensions(mm):Specifications | 450VAC | 250VAC |
1μF | 37×13×23 | 37×13×23 |
1.2μF | 37×13×23 | 37×13×23 |
1.5μF | 37×14×25 | 37×13×23 |
2μF | 37×16×28 | 37×13×23 |
2.5μF | 37×18×28 | 37×14×25 |
3μF | 47×18×29 | 37×14×25 |
3.5μF | 47×18×34 | 37×16×28 |
4μF | 47×18×34 | 37×16×28 |
4.5μF | 47×22×34 | 37×16×28 |
5μF | 47×22×34 | 37×18×28 |
5.5μF | 47×22×34 | 37×18×28 |
6μF | 47×22×34 | 47×18×29 |
6.5μF | 48×26×38 | 47×18×29 |
7μF | 48×26×38 | 47×18×29 |
8μF | 48×26×38 | 47×18×34 |
10μF | 58×26×44 | 47×22×34 |
12μF | 58×26×44 | 47×22×34 |
15μF | 58×26×44 | 47×22×34 |
16μF | 58×26×44 | 47×26×38 |
20μF | 58×35×49 | 47×26×38 |
25μF | 58×35×49 | 47×26×38 |
30μF | Negotiable | 58×26×44 |
35μF | Negotiable | 58×26×44 |
* Note:Other specifications,size and terminal outside table are negotiable. Welcome to Contact UsCompany Name: Tongling Tongfei Technology Co.,Ltd.Add: No.695 North Taishan Road,Tongling,Anhui,China Tel: 0086 0562 2821018Fax: 0086 0562 2821558Mobile Phone: 13305620368 (Helen Hu) *Please note all the price are negotiable upon specifications, if you have any inquiry, welcome to contact us. *For more product information, please view our website:www.dianrongs.com
