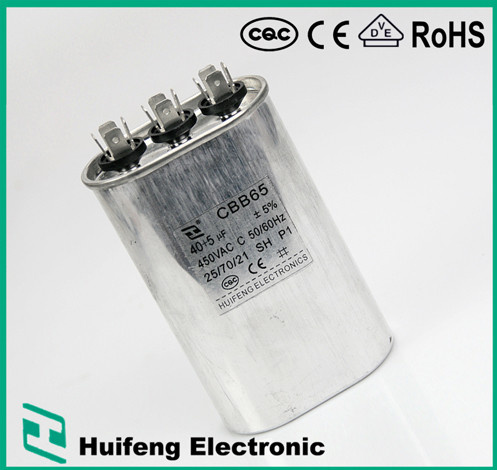

Cbb65 450VAC Air Conditioner Capacitor

Name: Cbb65 450VAC Air Conditioner Capacitor
Brand: all-electronics-online.com
SKU: 783424765
Availability: InStock
Rating: 4.7 (76 reviews)

Price:	US $ 0.1-3/Piece
Trade Terms:	FOB
Min Order:	500/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

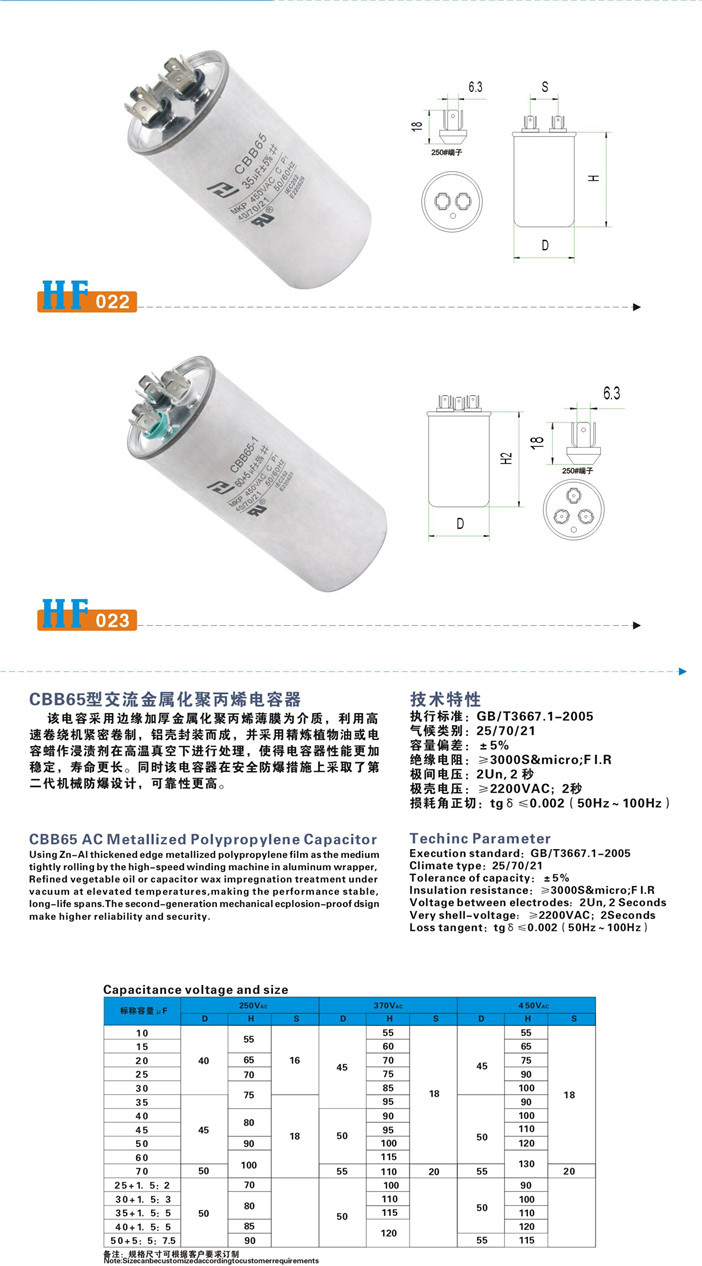

CBB65 Air conditioner Capacitors

Exchange Alumium Electrolytic Capacitor has the charactors of little capacitance change, stable performance, little current leaking, small tangent of wearing angle, durability, etc, is paplicable for the startup of AC motors.
Techinc Parameter
Rating capacity: 4μf-80μf, Rating voltage: 100VAC-660VAC
Tolerance of capacity: ±5%.
Insulation resistance: T-T≥3000M.Ωμf
Leak of current: I ≤0.03CnUn (mA)
Testing voltage: 1.25tims AC voltage
Climate sort: -25~85~105
Tangent of wearing angle: <0.15(100HZ)
Frequency:50/60HZ

Type	Capacitance	Voltage	Size	Min Quantity	Unite Price
CBB65	450vac	7.5uf	40*60 mm	500 pcs	$0.80
CBB65	450vac	15uf	40*90 mm	500 pcs	$10.06
CBB65	370vac	30uf	50*100 mm	500 pcs	$1.50
CBB65	370vac	50uf	50*100 mm	500 pcs	$2.05

With good self-recovering ability, low wastage, good impact endurance, are applied for air conditioner and lamp and so on.

Prod Model:	CBB65
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Size:	Can Be Done According to Customer's Requirments
Type:	Aluminum Electrolytic Capacitor
Application:	Air Conditioner
Package Type:	Through Hole
Capacitance:	5-80UF

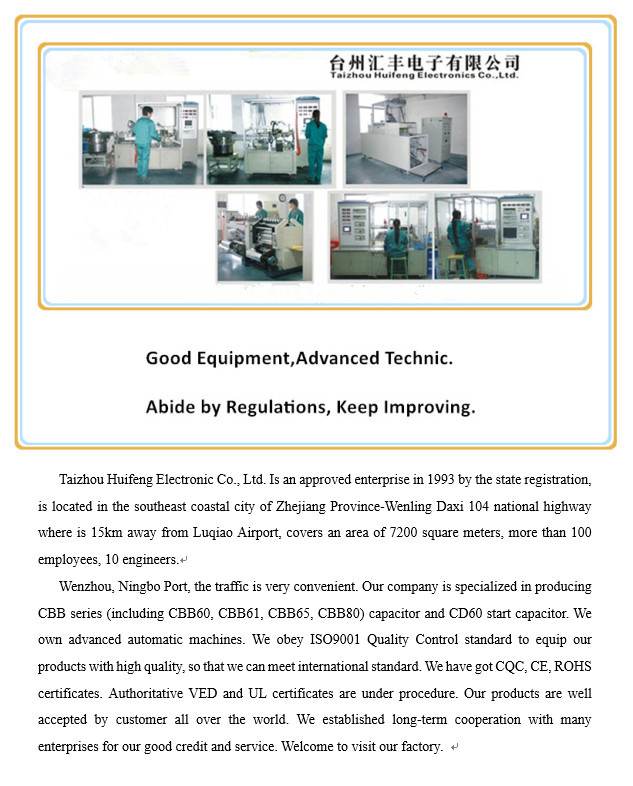

Founded in 1993, Taizhou Huifeng Electronic Co., Ltd. is specialized in manufacturing CD60 starting capacitors as well as CBB60motor running capacitors, CBB65 air conditioner capacitors, CBB61 fan/generator capacitors and CBB80 lighting capacitors. Our company covers an area of 7200 square meters and has more than 100 employees, including 10 engineers and technicians and 6 full-time inspectors. We have advanced automatic winding machines, spraying machines, automatic testing machines, automatic welding machines and dipping machines. We also have a group of well-trained and aggressive marketing team to meet the demands of clients from at home and abroad. We comply with ISO9001 Quality Control system Standard to ensure product quality. Besides, we have passed UL, VDE, CQC, CE and RoHS certifications.

Huifeng promotes "Huifeng Brand" all the time, follows the commercial spirit of "quality first, customer first, reputation first" and the principle of "people-oriented", develops high-tech industry and attaches importance to talent training. Our products are welcomed by customers from all over the world.

We have already established long-term business relationships with many enterprises, winning a good reputation among them. We also provide excellent service. You are welcome to visit our company and do business with us. We will try our best to provide high-quality products and excellent after-sales service for you.

Add. Qiaoli Village, Daxi Town, Wenling City, Zhejiang Province. 318050

Contact person: Ms. Summer

Tel: 0086 13968649796
