Ccp Series High Voltage DC Power Supply - 10kv1kw
| Price: |
Negotiable/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T |
| Prod Model: |
CCP1000 |
| Output Voltage: |
10kv |
| Output Current: |
100mA |
| Output Polarity: |
Positive or Negative |
| Circuit Mode: |
AC/DC High Frequency Conversion |
| Working Mode: |
Constant Voltage / Constant Current |
| Output Setting: |
10-Turn Potentiometer |
| Output Display: |
LED |
| Protection: |
Short, Oh, Over Load, Load Discharging |
| Remote Control: |
0~10V / 4~20mA Analog Signal Control / RS Ports |
| Application: |
High Voltage Capacitor Charging, High Voltage Char |
| Output Type: |
Single |
| Warranty: |
1 Year |
| Input Voltage: |
220V |
| Connection Mode: |
Series Switching Power Supply |
| Starting Mode: |
Self-excited Switching Power Supply |
| Voltage Regulating Mode: |
Frequency Modulation Type |
| Power Supplying System: |
Terminal Power Distribution Equipment |
| Output Power: |
1kw |
| Brand: |
Idealtek |
Product Description
CCP1000 Series High Voltage Capacitor Charging Power Supply
Brief IntroductionThe CCP1000 series high voltage switching mode DC power supply specially designed for capacitor charging, compared to traditional linear HV power supply, it has faster response time and higher efficiency, also it has high precise and adjustable output voltage, featured current-limit working mode and unique discharging circuit which better suit capacitor charging requirements.Features1. Continuous DC operation or capacitor charging application
2. Output 0-10kV adjustable from 0 to 100%
3. Constant current output: 100mA
4. Charging in constant current mode and switch to constant current mode till fully charged.
5. Unique double isolated system, strong anti-interference ability.
6. Forced air cooling, very rugged design
7. Local or remote control (optional)Applications1. High voltage capacitor charging

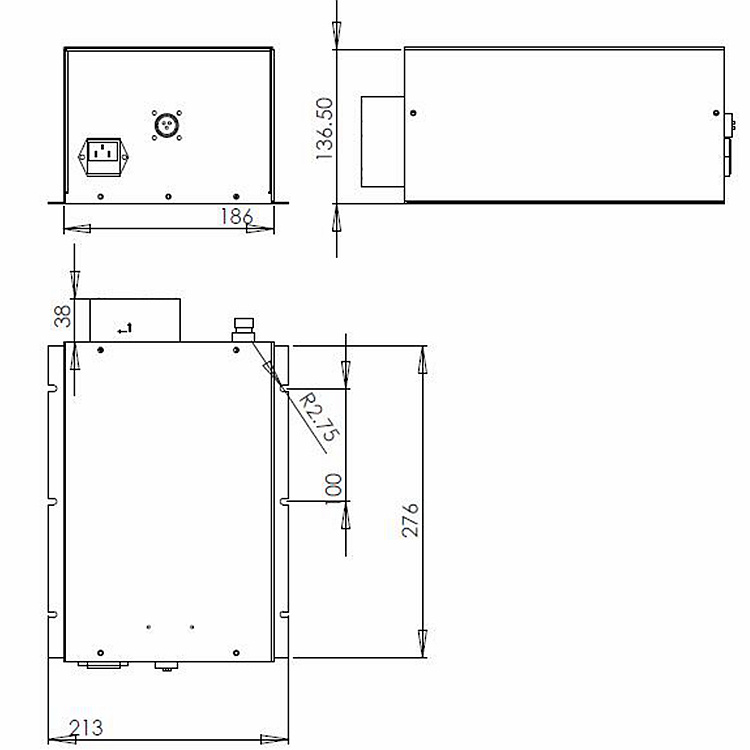

2. High voltage chargingPhysical drawing (weight: 3.6Kg)

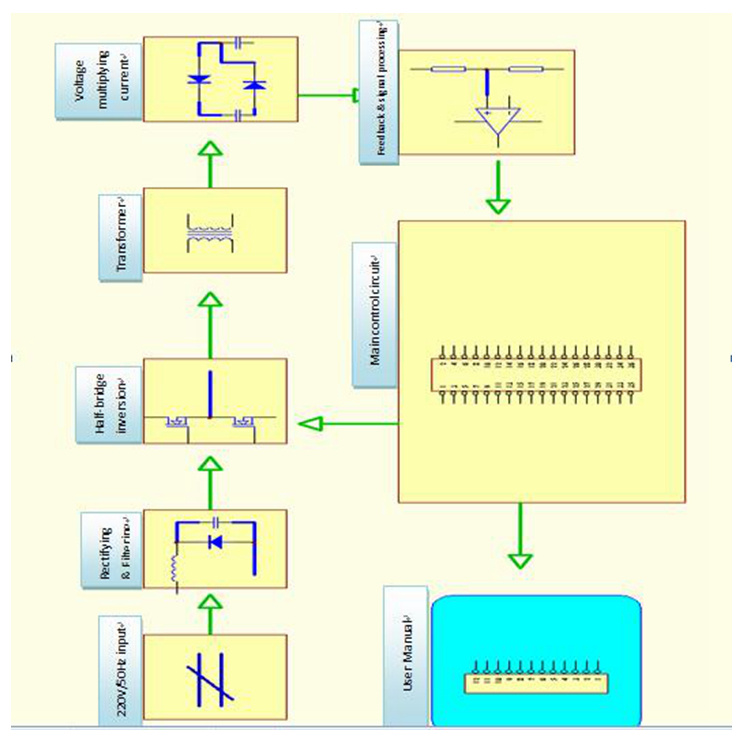

Principle description
Technical Specification | Electrical Characteristics |
| 1. Input Voltage | 220V±10% |
| 2. Input current | 6A (Max. value under 220Vac input) |
| 3. Output Power | 1KW |
| 4. Output Voltage | 0 ~ 10KV adjustable (200Vac ~ 240Vac input), positive or negative HV output polarity selectable |
| 5. Output current | 100mA |
| 6. Output polarity | positive or negative |
| 7. Output adjusting mode | 0 ~ 10KV continuously adjustable, customer could add 10K potentiometer to voltage control interface to realize adjusting function. |
| 8. Line regulation | ≤0.5% |
| 9. Load regulation | ≤0.5% |
| 10. Total Efficiency | ≥85% |
| 11. Minimal capacitive load | 100nF |
| 12. Read output | Digital LED |
| 13. Protections function | - Input over-load protection: FUSE interface provided, add 8A/250V fuse to realize over-load protection, and do not make direct connection with metal wire.
- Over temperature protection: Output automatic shut-down when shell temperature exceeds 70ºC
- Short protection: output power drops to "0" when output shorted.
- Discharging protection: when load is discharging, power supply will control output power till output drops to "0", and power supply resumes work when discharging finishes.
- Double isolation protection:
isolation voltage between load and inner control circuit is 5KV.
isolation voltage between inner control current and 220Vac is 5KV.
isolation voltage between load and 220Vac input is 5KV
|
| 14. Dimension (W*D*H) (mm) | 213*276*138 |
| 15. Weight | Approx. 3.6Kg |
Note: every power supply has 48 hours full load burn-in test @ 40ºCEnvironment conditions1. Working environment conditions:
1.1. Temperature:-10ºC ~ 40ºC
1.2. Relative humidity: <90% (non-condensing)
1.3. Height: 4000m
2. Storage environment conditions:
2.1. Temperature: -20ºC ~ 60ºC
2.2. Relative humidity: 10% ~ 90%

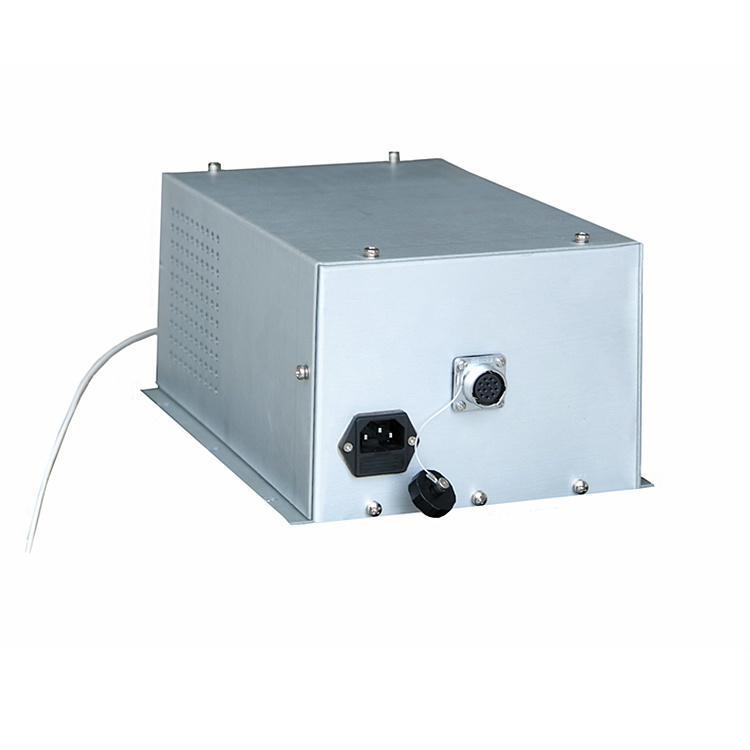

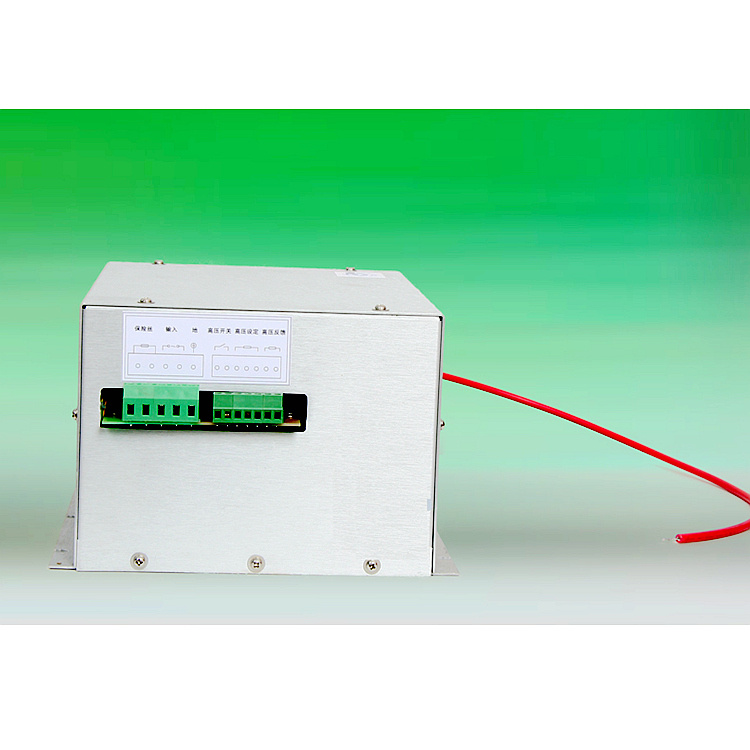

2.3. Height: 4000mInput & Control connectors (as photo & table below)
Table - 1| Connector | Definition |
| 1 | AC input |
| 2 | Control terminal |

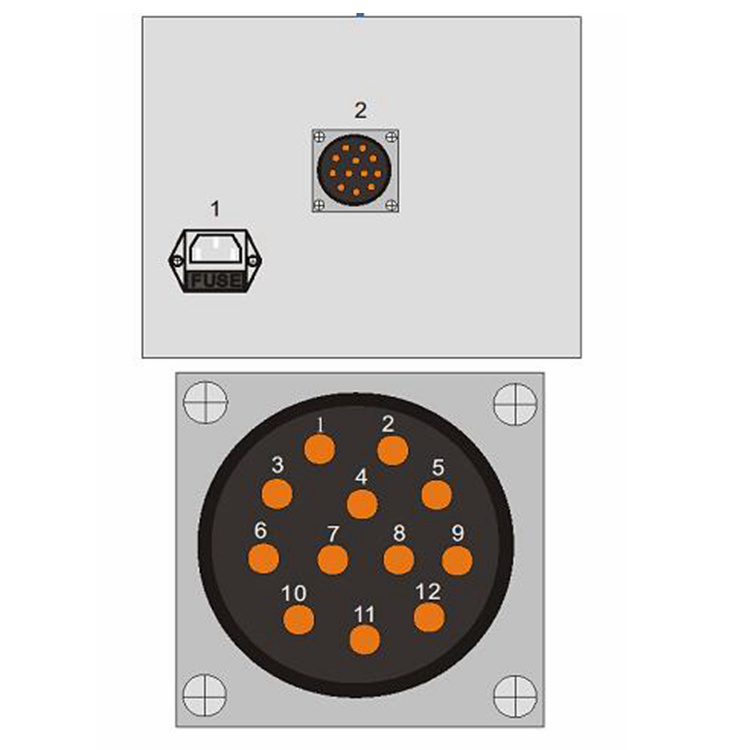

Control terminal definition
Table - 2 corresponding input connectors| Connector | Definition |
| 1 | HV start switch, to GND, closed refers to ON, break refers to OFF |
| 2 | GND |
| 3 | Reference 10V |
| 4 | Output voltage control, 0-10V refers to 0-10KV |
| 5 | GND |
| 6 | HV output feedback, 0-10V refers to 0-10KV |
| 7 | Output current feedback, 0-10V refers to 0-100mA |
| 8 | Output current control, 0-10V refers to 0-100mA |
| 9-12 | Expansion port |
Optional spare part: control boardHV output line: BNC output connector adopted.Safety caution1. This power module has HV output, only professional person could operate it.
2. Please check power module as below before start-up
2.1. Keep power module clean and good ventilation.
2.2. HV input & output connectors or HV load no touch anything.
2.3. Please check back current of load well connected with GND bolt at the back of power module.StoragePay attention to the following points during temporary & long-term storage.
1. Store the power supply in our packing box
2. Long-term storage would lead to electrolytic capacitor degradation, it should be powered up yearly, at least 5 hours power-on time, input voltage should be increased to rated value by voltage regulator. Warranty1. The warranty period of this product is 12 months, free repair within warranty period except for man‐made damages or irresistible forces.
The following cases during under warranty are not included in free-warranty scope:
(1). Incorrect operation & maintenance of the power source that cause fault.
(2). Natural loss of consumable material (shell, connector etc.)
(3). Manual damage caused by modification or dismantle
(4). Damage caused by external equipments or third-party product or plug-in units.
(5). Force majeure factors, such as fire, flood or input grid abnormal.
(6). Unilateral amendment or modification on our LOGO or part number.
(7). Fault caused by abnormal usage of power source.
(8). Other non-product quality causes
2. Reasonable maintenance & repair costs should be charged after warranty period.Remark: Price offered in this page is for reference only, price changes would be made without notice
Please contact us for accurate offering, thanks for understanding.
