CCTV 75ohm Trunk Coaxial Cable QR540

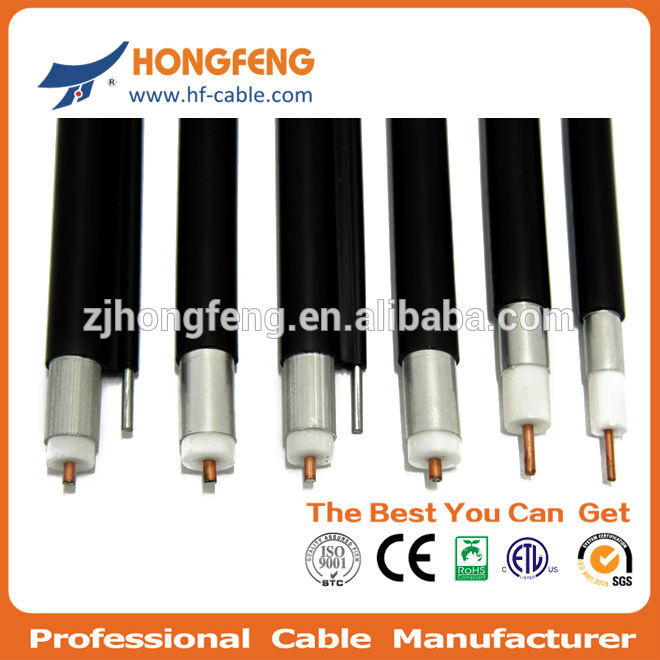

Name: CCTV 75ohm Trunk Coaxial Cable QR540
Brand: all-electronics-online.com
SKU: 705528855
Availability: InStock
Rating: 4.6 (51 reviews)

Price:	Negotiable/Meter
Trade Terms:	FOB,CFR,CIF
Min Order:	10000/Meter
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	540 CABLE, 500 CABLE, P3 500, QR 540
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Conductor:	CCA
Shield:	Aluminum Tube
Jacket:	PVC
Pack:	500m,750m,1000m/Drum
Application:	Coaxial Cable
Conductor Material:	BC/CCS/CCA/TC/CU/CCAG
Cover Material:	PVC
Certification:	ISO
Type:	Coaxial Cable

Product Description

Trunk coaxial Cable QR540
1) Basic Construction
Center Conductor: 3.15mm Solid Copper/Copper Clad Aluminum
Dielectric: 13.03mm Foam PE
Outer Conductor: 0.25-0.6mm Aluminum Tube
Jacket: 15.49mm PVC / PE
Jacket Thick.: 0.89mm
Jelly/APD Per Customer' Special Requirement

2)Basic Characteristics
Nominal Impedance: 75± 3 Ohm
Nominal Capacitance: 55± 3pF/m
Nominal Velocity of Propagation: 88%
Sparker Test: 4000VAC
SRL: 30-470: 20dB
470-1000: 20dB

Component	Inches	mm
Nominal Center Conductor Diameter	0.124	3.15
Nominal Diameter Over Dielectric	0.514	13.03
Nominal Diameter Over Outer Conductor	0.540	13.72
Nominal Outer Conductor Thickness	0.0135	0.343
Nominal Diameter Over Jacket	0.610	15.49
Nominal Jacket Wall Thickness	0.035	0.89
Messenger Version
Diameter of Steel Messenger	0.109	2.77
Dual Jacket Version
Nominal Jacket Wall Thickness of Outer Jacket	0.045	1.14
Nominal Diameter Over Outer Jacket	0.700	17.78
Armored Versions
Nominal Diameter Over Corrugated Armor	0.680	17.39
Nominal Armor Thickness	0.010	0.2
Nominal Diameter Over Outer Jacket	0.760	19.43
Nominal Thickness of Outer Jacket	0.040	1.02

Our company, hongfeng industry, a professional cable manufacturer, is located in hangzhou, a city which is not only famous for its fabulous scenery, and also known for the center of the manufacture industry. And also we get close to the Shanghai port and ningbo port. This makes our company an unique position offering and delivering the cable overseas. We are dediacated to providing high quality coaxial cable and LAN twisted pair cable.

We offer whole range of coaxial cable and LAN twisted pair cable. Coaxial cable includes RG6 series, RG58series, RG59series, RG7series, RG11series, QR series, 500 series. And network cable CAT7 series, CAT 6 series, CAT 5 series.

We provide consistent high quality products at competitive prices. We have an products controlling teams, which monitors the manufacturing process and checks all the products before shipment. Our professional customer's service are ready to provide you with all necessary consultations and solve any problems related to our products.
