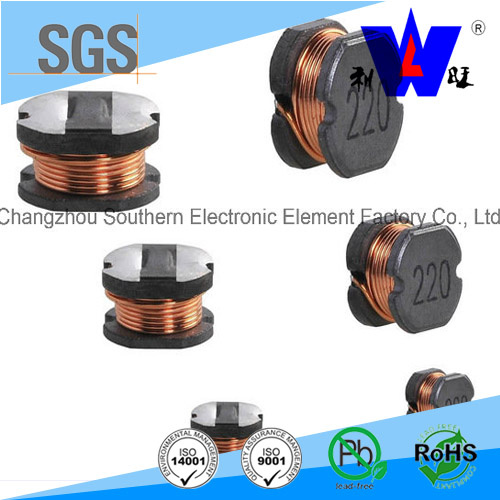

CD Series SMD Power Inductor with RoHS
| Price: |
US $ 0.01-1/Piece |
| Trade Terms: |
FOB,EXW |
| Min Order: |
1000/Piece |
| Pay Type: |
L/C,T/T,Western Union |
| Prod Model: |
CD51, CD52, CD53, CD54 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Environmental Certification: |
ISO14000 |
| Quality Certification: |
ISO9001: 2008 |
| Safety Certification: |
CQC 03003095~3097 |
| Certification: |
RoHS |
| Product Name: |
CD Series SMD Power Inductor with RoHS |
| Type: |
Fixed Inductor |
| Structure: |
Core |
| Brand: |
Liwang |
Product Description
Product description of the CD Series SMD Power Inductor with RoHSCD31/32/42/43/51/52/53/54/73/75/104/105 SERIESFeatures/
Various high power inductors are superior to be high
saturation for surface mounting.Applications/
Power supply for VTR, OA equipment, digital camera, LCD TV set, notebook PC, partable communication equipments, DC/DC converters, etc
Part numbering system/
C D - -
1 2 3 4 5 6
Series name dimensions inductance tolerance code packing code Management code
J:±5%,K: ±10% T:tape&reel Standard is "XXX"
L: ±15%,M: ±20% B:in bulk

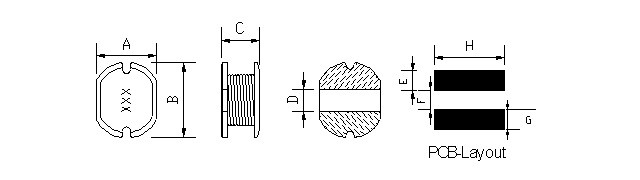

Shapes and dimensions/ (UNIT:mm)
| Type | A ±0.30 | B ±0.30 | C (Max) | D | E | F | G | H |
| CD31 | 3.0 | 3.50 | 1.80 | 1.0 | 1.30 | 0.90 | 1.30 | 3.50 |
| CD32 | 3.0 | 3.50 | 2.40 | 1.0 | 1.30 | 0.90 | 1.30 | 3.50 |
| CD42 | 4.0 | 4.50 | 2.30 | 1.50 | 1.80 | 1.20 | 1.80 | 4.50 |
| CD43 | 4.0 | 4.50 | 3.50 | 1.50 | 1.80 | 1.20 | 1.80 | 4.50 |
| CD51 | 5.20 | 5.80 | 2.30 | 1.50 | 2.70 | 1.20 | 2.70 | 5.80 |
| CD52 | 5.20 | 5.80 | 2.80 | 2.0 | 2.40 | 1.80 | 2.40 | 5.80 |
| CD53 | 5.20 | 5.80 | 3.80 | 1.80 | 2.70 | 1.20 | 2.70 | 5.80 |
| CD54 | 5.20 | 5.80 | 4.80 | 1.50 | 2.60 | 1.40 | 2.60 | 5.80 |
| CD73 | 7.0 | 7.80 | 3.80 | 2.50 | 3.0 | 2.0 | 3.0 | 7.50 |
| CD75 | 7.0 | 7.80 | 5.20 | 2.50 | 3.0 | 2.0 | 3.0 | 7.50 |
| CD104 | 9.0 | 10.0 | 4.20 | 3.20 | 3.75 | 2.50 | 3.75 | 9.50 |
| CD105 | 9.0 | 10.0 | 5.80 | 3.20 | 3.75 | 2.50 | 3.75 | 9.50 |
| Type | Amax | Bmax | C | D | E | F | G | H | Firgre |
| CDH3B12 | 4.0 | 1.4 | 4.4 | 1.1 | 1.5 | 1.4 | 2.4 | 5.2 | 1 |
| CDH3B16 | 4.0 | 1.8 | 4.4 | 1.1 | 1.5 | 1.4 | 2.4 | 5.2 | 1 |
| CDH3B16B | 4.0 | 1.8 | 5.5 | 4.0 | 1.0 | 4.0 | 1.5 | 1.0 | 2 |
| CDH3B28 | 4.0 | 3.0 | 4.4 | 1.1 | 1.5 | 1.4 | 2.4 | 5.2 | 1 |
Company Information
Our products are mainly used in household electric appliances,communication appliances,energy saving lamps,automatic control devices(e.g. transducers) electric power equipments and LED drive rower.Our products are exported to dozens of countries in Europe,America and Southeast Asia and used in many worldwide famous companies,such as GE,OSRAM,etc.
All products of the size, electrical performance can be designed.If you have any questions or requirements,please contact us freely in any time.
Changzhou Southern Electronic Element Factory Co., Ltd. is located in China, with a long history. We enjoy convenient transportation by highway, railway and airway. It takes only one and half hours' Drive to Shanghai or Nanjing.
Our company was founded in 1989, and currently we employ more than 300 people, including 60 professional technicians, covering an area of 10, 000 square meters, with a construction area of more than 5000 square meters. Our main products are wirewound resistors, wirewound resistor fuses, membrane fuse resistors, fixed inductors, filters, ferrite transformers, ring-shaped coils, fuse dedicated energy-saving lamps and UL fuses. Our annual output is 200 million resistors, 200 million transformers, 100 million coils and 200 million fuses, which are mainly used for household appliances, communication equipment, energy-saving lamps, automation control devices (such as inverters), power equipment and facilities. Our products are exported to Europe, the United States and Southeast Asia. GE, OSRAM and PHILIPS are our customers.
Factory' S quality policy: "product quality, service in advance, customer satisfaction".
Environmental policy: "to comply with laws and regulations, pollution prevention, environmental awareness, continuous improvement of the environment"
