| Prod Model: |
YCT Series |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Application: |
Universal |
| Operating Speed: |
Constant Speed |
| Number Of Stator: |
Three-Phase |
| Species: |
Y, Y2 Series Three-Phase |
| Rotor Structure: |
Squirrel-Cage |
| Casing Protection: |
Closed Type |
| Starting Mode: |
Auto-induction Voltage-reduced Starting |
Product Description
Product DescriptionIntroduction:
YCT series electromagnetic governor motor,one of themainproducts derived form Y series motor,consists of electromagnetic slipclutch,speed meter generator and pulling motor,is matched withcontroller which can regulate the speed steplessly under constant torque within the rated speed regulating range.
It can be used in the industries of textile,chemical,metallurgical,papermaking,plastic processing etc.and various machines and equipments which require speed regulation.It is suitable for the machines whose runing torque loads decrease progressively,such as centrifugal pump and blower,etc.The capacity or pressure can be controlled with speed regulation instead of valve,which has conspicuous effects of energy saving.
Motor Features:
1) A.C stepless speed regulating, it has automatic regulating system,speed rate of variation is not exceed 2.5% ;
2) Free of uncontrolled point and wide range of speed regulating(max 10:1) ;
3) Good performance and with higher starting torque;
4) Simple structure , easy in operation and maintenance;
Low power in controlling, it could has multi-mode to control ;
1. Frame size:H112-355;
2. Power:0.55-90KW;
3. Voltage as follows:
1)Rated Voltage for Controller: 220V;
2)Rated Voltage for the motor:380V(three phase) 220V(single phase)
4. Rated Frequency: 50 Hz ;
5. Poles: 4A,4B
6. Speed: 1250-125, 1320-132, 1320-440 ,1320-600
7. Ambient Temperature: -15°C-40°C
8. Model of CONEECTION: Y-Connection for 3 KW motor or less while Delta-Connection for 4 KW motor or more;
9. Duty: continuous (S1);
10. Insulation Class: B/F;
11. Protection Class: IP21;
12. Frame material: Cast iron body ;
13. Cooling Method: IC411 Standards;
14. Altitude: No more than 1,000 meters above sea level;
15. Packing: 112-355 frame be packaged by wooden cases;
16. Certifications: CE, CCC, ISO9001: 2008
Technical Data
| Frame number | Nominal caplcity (KW) | Rated torque N.m | Range of speed regulation r/min | Rate of speed variation not greater than % |
| 90 | -4A | 0.25 | 1.6 | 1200-120 | 2.5 |
| -4B | 0.37 | 2.3 |
| 112 | -4A | 0.55 | 3.6 | 1230-125 |
| -4B | 0.75 | 4.9 |
| 132 | -4A | 1.1 | 7.1 |
| -4B | 1.5 | 9.7 |
| 160 | -4A | 2.2 | 14.1 | 1250-125 |
| -4B | 3.0 | 19.2 |
| 180 | -4A | 4.0 | 25.2 |
| 200 | -4A | 5.5 | 36.1 |
| -4B | 7.5 | 47.7 |
| 225 | -4A | 11 | 69 |
| -4B | 15 | 94 |
| 250 | -4A | 18.5 | 110 | 1320-132 |
| -4B | 22 | 137 |
| 280 | -4A | 30 | 189 |
| 315 | -4A | 37 | 232 |
| -4B | 45 | 282 |
| 355 | -4A | 55 | 344 | 1340-440 |
| -4B | 75 | 469 |
| -4C | 90 | 564 | 1340-600 |
| 400 | -4A | 110 | 690 | 1350-650 |

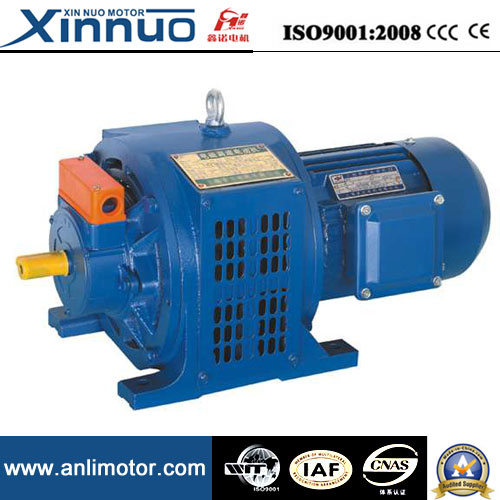

| YCT Series Electromagntism Speed Regulation Electric Motor |
| 1). Power: | 0.55KW-90KW; |
| 2). Frame: | H112 to 355; |
| 3). Shell: | Cast iron body ; |
| 4). Pole: | 4 poles; |
| 5). Mounting arrangement: | B3 ; |
| 6). Voltage: | 380V; |
| 7). Protection class: | IP21; |
| 8). Duty/Rating: | S1 (Continuous); |
| 9). Cooling method: | IC411 (SELF-FAN cooling); |
| 10). Insulation class: | B F; |
| 11).Standard: | (IEC) EN60034-1 & EN1060204-1. |

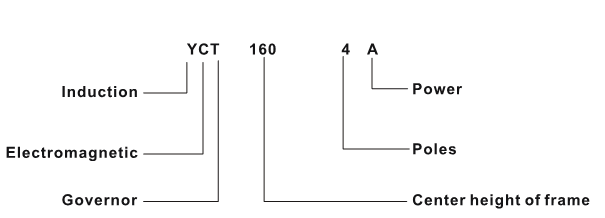

1. YCT160 China motor
2. Power: 0.55-90kw
3. Frequency: 50/60Hz
4. High quality, low price
Color: Blue or as you need
The discription for our YCT series China motor:
Electromagnetic speed regulationg motor is a single-speed or multi-speed rat and Dragon-type asynchronous motor electromagnetic slip clutch componments. Through the controller can be stepless speed within the wider context.
About our YCT160-4B series China motor for speed reducers:

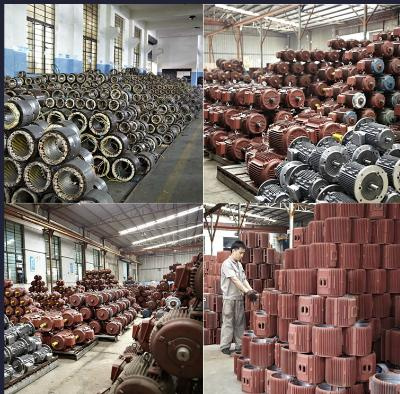

We changed our company name to Wenling Xinnuo Electric Motor Co., Ltd. is advanced enterprise specializing in all type of MID-size and small-size electric motors, electric machines. The products include Y and Y2 series three-phase asynchronous, MS series three-phase asynchronous motor with aluminium housing, YO2 series three-phase asynchronous motor, YL series monophase machine, YD series multispeed machine, YCT series electromagnetic ajustable-speed motor, frequency adjustable-speed motor and fractional electric motor, YEJ2 series electromagnetic-brake motor, DSM and M50/4 single-phase resistant start asynchronous motors, etc.
Our management system has been assessed and passed the ISO 9001: 2000 Certificate, our products have got the CCEE, CCC, CQC and CE certificates, moreover we are putting efforts to apply the approvals by UL, CSA, CE. The enterprise has the self-supporting import & export right.
With our high Quality, favorable price and excellent service, we are willing to cooperate with the friends in all circles to circles to create the flourishing future.
