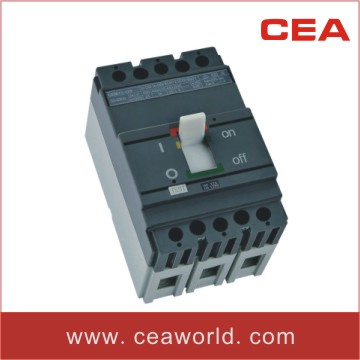

CEM15 SERIES MOULDED CASE CIRCUIT BREAKERCEM15 (T2H100R100/T2H160R160/T5H250R250/T5H400R400) MCCB is suitable for the circuit of AC50 Hz/60Hz, rated insulation Voltage 660V, rated operating Voltage under AC660V, 250V, rated operating current 10-800A.
It takes protect effect when mouse cage motors non-frequent start, breaking off working and protecting overload, short circuit and lacking voltage.
Tripping Characteristics of MCCB
Rated Current of Release(A) Thermodynamic Release (ambient temp +40C) Operational Current of Magnetic Release(A)
1.05In(cold state) inoperative time(h) 1.30In(heat state) operative time(h)
In≤ 63 ≥ 1 <1 10In+20%
63 ≥ 2 <2 10In +20%
100 ≥ 2 <2 5-10In+20%
| Type | Rated current (A) | Rated insulating voltage | Pole number | Rated operating voltage | Ultimate short circuit breaking capacity lcu KA | Service short circuit breaking capacity lcu KA |
| AC380V (400) | AC660V (690) | DC250V | AC380V (400) | AC660V (690) |
| S-125E | 12.5, 16, 20, 25, 32, 40, 50, 63, 80, 100, 125 | 660V | two three four | 380V 660V | 15 | - | - | 7.5 | - |
| S-125S | 25 | - | 20 | 16 | - |
| S-160S | 16, 20, 32, 40, 50, 63, 80, 100, 125, 160 | 35 | 8 | 20 | 18 | - |
| S-160H | 50 | 10 | 40 | 25 | - |
| S-250S | 100, 125, 160, 180, 200, 225, 250 | 65 | 10 | 40 | 18 | - |
| S-250M | 35 | 16 | 40 | 30 | - |
| S-250H | 50 | 18 | 40 | 48 | - |
| S-400S | 200, 225, 250, 315, 350, 400 | 65 | 16 | 40 | 18 | - |
| S-400M | 50 | 20 | 40 | 30 | - |
| S-400H | 65 | 25 | 40 | 48 | - |
| S-630S | 400, 500, 630 | 80 | 20 | 40 | 30 | - |
| S-630M | 50 | 25 | 40 | 48 | - |
| S-630H | 65 | 30 | 40 | 60 | - |
| S-800S | 500, 630, two three four 700, 800 | 80 | 20 | 40 | 30 | - |
| S-800M | 55 | 25 | 40 | 48 | - |
| S-800H | 70 | 30 | 40 | 60 | - |
| 1250S | 630, 700, 800, 1000, 1250 | 95 | 25 | 40 | 35 | - |
| 1250M | 55 | 28 | 40 | 50 | - |
| 1250H | 70 | 35 | 40 | 75 | - |
| 1600S | 800, 1000, 1250, 1600, | 95 | 25 | 40 | 35 | - |
| 1600M | | 28 | 40 | 50 | - |
| 1600H | | 35 | 40 | 75 | - |
